Location in exploded diagrams

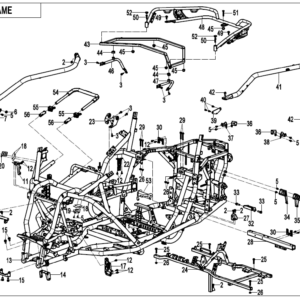

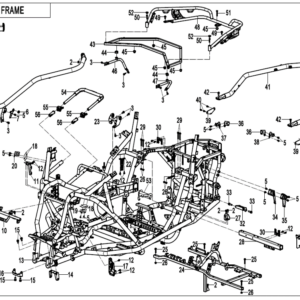

Other parts on this diagram — FRAME
- #14 5BWV-030050-5000 — UPPER ADAPTER BRACKET, FRONT GEAR CASE
- #16 5BYV-030050-A100 — M8 FRONT LOWER BRACKET, FRONT GEAR CASE
- #25 6NQ3-250022-00001 — 16
- #31 7000-020020-10000 — HEAT INSULATOR ASSY
- #36 5BYA-030020-10000 — REAR FIX SEAT, FENDER
- #41 5BYA-030500-0B000 — REAR BUMPER ASSY.
- #48 5BYA-030600-0B000 — REAR RACK ASSY.
- #53 5BWV-030080-5000 — FRONT BRACKET, ENGINE
- #54 5BWV-100100-5000 — ARMREST RAIL ASSY
- #55 5BWV-107000-5001 — WIRE CLIP ASSY
- #56 5BWV-107400-5001 — BUSHING, ARMREST RAIL
