Location in exploded diagrams

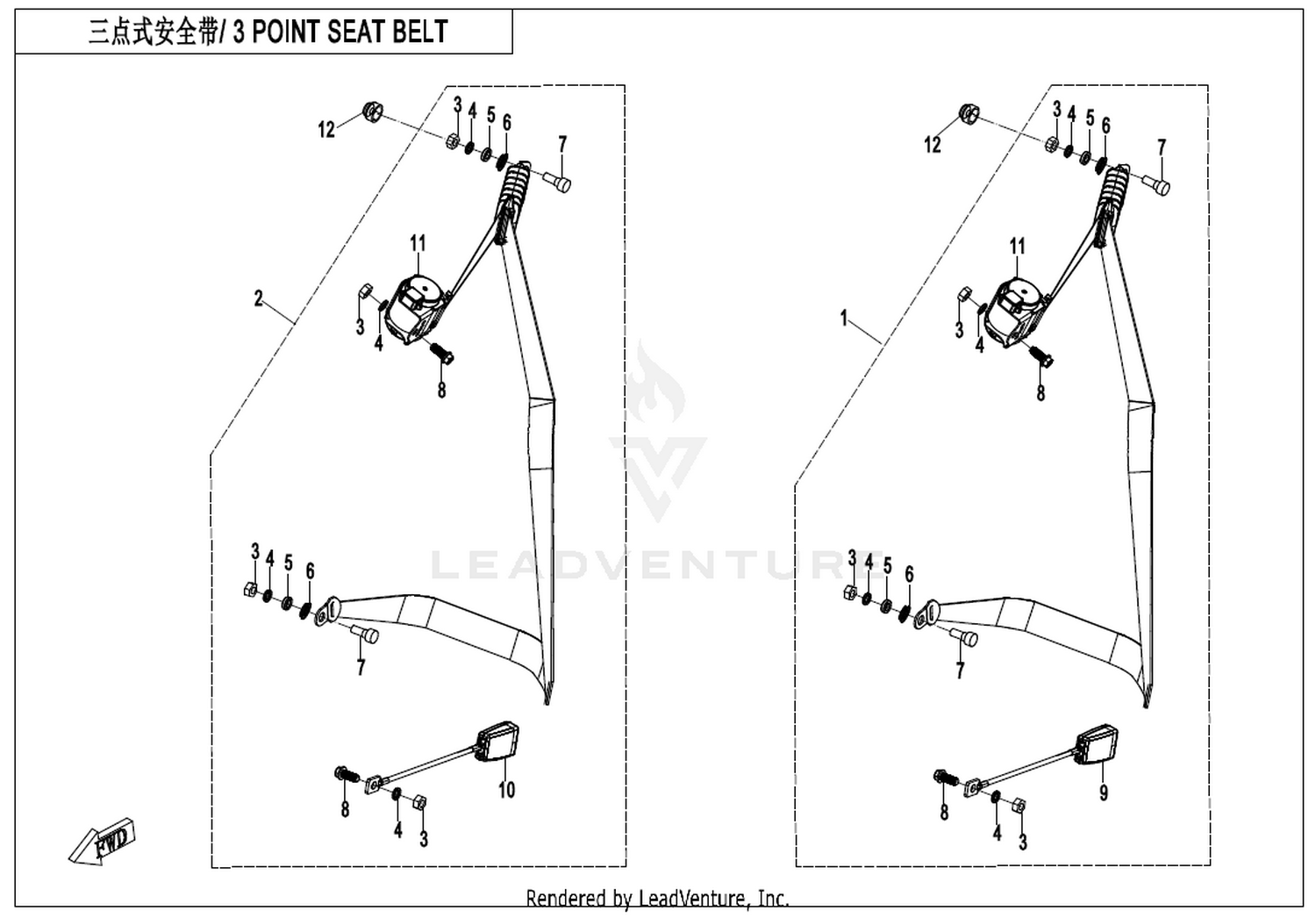

Other parts on this diagram — 3-Point Seat Belt
- #05 9030-341003 — Dia 11.3 Distance Ring
- #11 5BY0-341120 — Retractor Assy
- #12 9060-340001 — Seat Belt Guide Ring Plug
- #01 5BYV-341100-A000 — Driver Seat Belt Assy
- #07 9030-341005 — Guide Ring Bolt 9
- #02 5BYV-341200-A000 — Passenger Seat Belt Assy
- #07 9030-341006 — Bolt
- #03 9030-341002 — 7 & 16 Nut
- #09 7030-341010-10000 — Lh Buckle Assy Sumitomo Plug
- #04 30302-120110 — Washer 12
- #10 7030-341020 — Rh Buckle Assy
