Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)

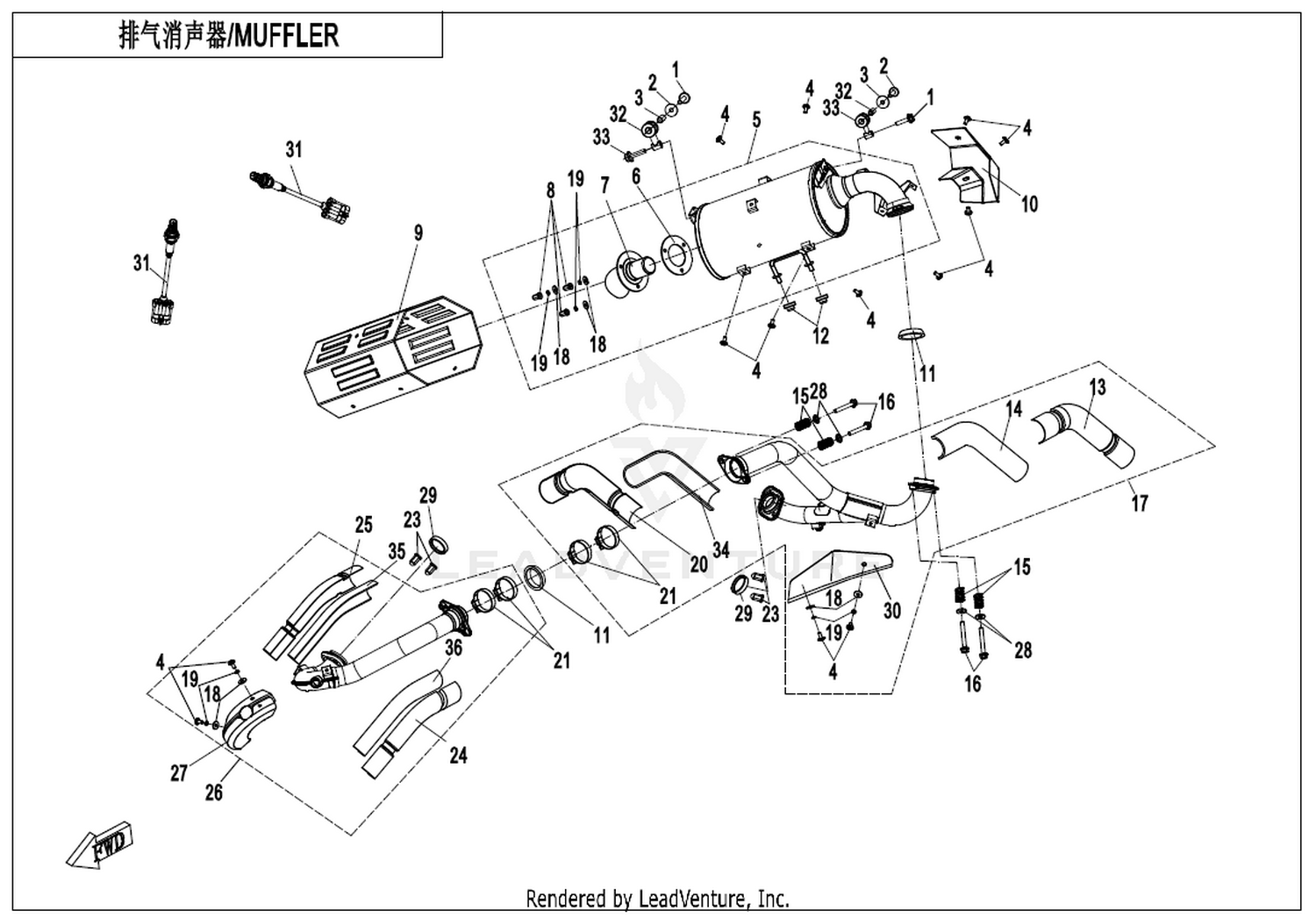

Location in exploded diagrams


Other parts on this diagram — Muffler
- #05 5BY2-021300-10001 — Muffler Body Assy
- #06 7030-021002 — Collar, Big
- #17 5BY2-021200-00001 — Rear Exhaust Pipe, Muffler
- #03 8010-020001 — Nut M8, Muffler Joint M8
- #01 0800-022300 — Exhaust Pipe Gasket Assy
- #08 5BY2-021109 — Insulated Sponge Ii, Front Exhaust Pipe
- #32 5BY2-021001 — Seal Gasket
- #12 5BY2-020008 — Rubber Cushion,Muffler Ii
- #36 30306-060112 — Washer F6
- #09 5BY2-021108 — Heat Insulator 2, Rear Pipe
- #30 5BY2-020006 — Heat Insulator 5, Exhaust Pipe
- #06 5BY2-021106 — Insulated Sponge I, Front Exhaust Pipe
- #14 30006-080040810 — Bolt M8×40
- #17 5BY2-021400-10001 — Spark Arrestor
- #13 5BY2-021214 — Heat Insulator 2, Rear Pipe
- #15 30303-060112 — Washer F6
- #07 5BY2-021107 — Heat Insulator 1, Rear Pipe
- #14 018B-176000 — Oxygen Sensor
- #07 9010-020001 — Rubber Cushion, Muffler
- #22 30206-060510 — Cap Nut M6
- #14 5BY2-021213 — Heat Insulation Cotton 2, Rear Pipe
- #20 5BY2-021212 — Heat Insulator 1, Rear Pipe
- #01 5BY2-021100-00001 — Front Exhaust Pipe,Muffler
- #35 9AWA-021001 — Muffler Spring
