5BY0-290202DUST BOOT — Genuine CF MOTO Part
CF MOTOoem
5BY0-290202 - DUST BOOT #5
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (1)

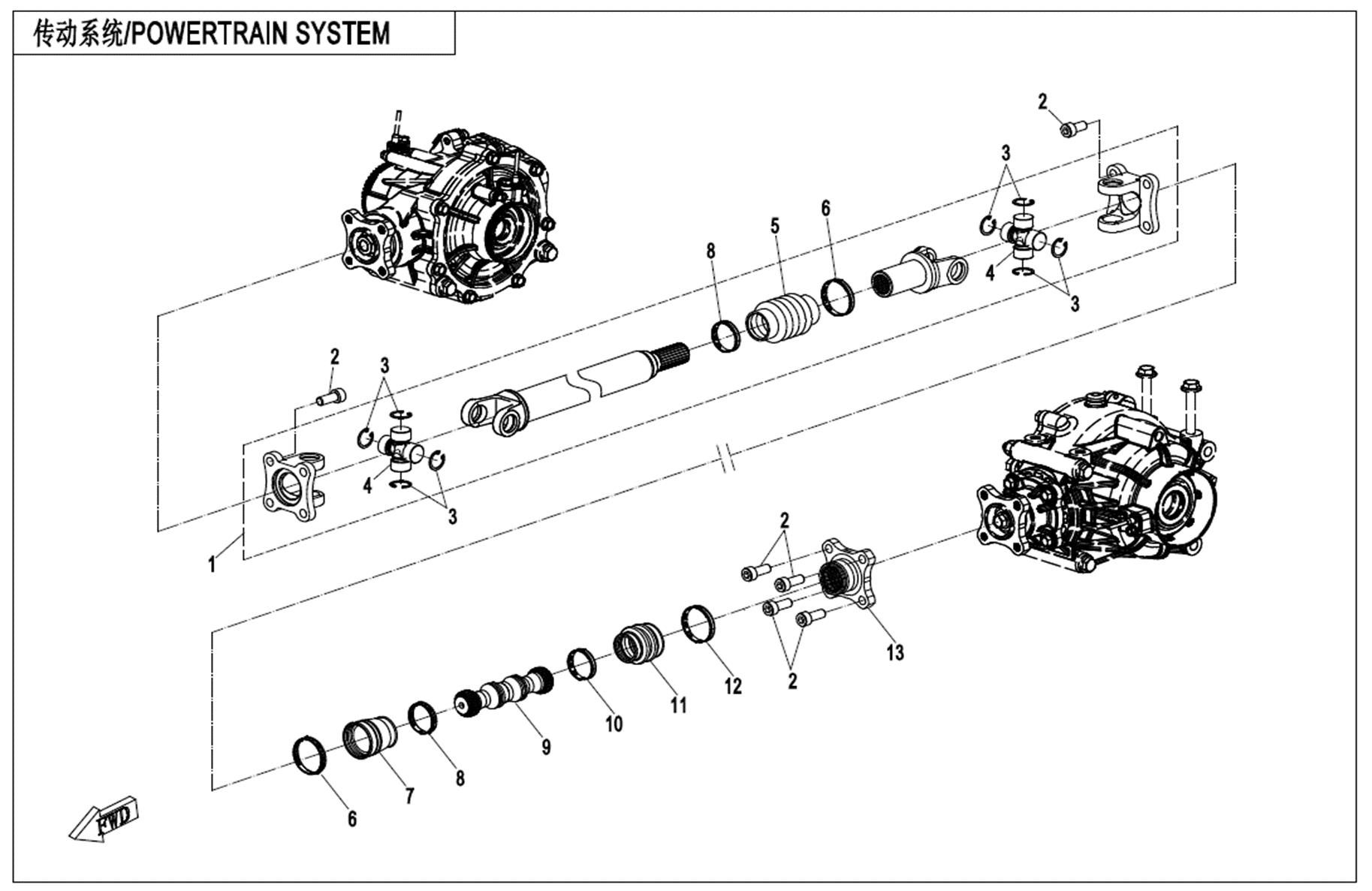

Location in exploded diagrams
Other parts on this diagram — DRIVETRAIN SYSTEM
- #1 5BY0-290200-10000 — FRONT DRIVE SHAFT Replacing: 5BY0-290200 - FRONT DRIVE SHAFT
- #2 30102-102025810 — SCREW
- #3 30800-02205 — CIRCLIP D22
- #4 5BY0-290210 — UNVERSAL JOINT ASSY
- #6 9GQ0-290104 — BIG CLAMP
- #8 9GQ0-290102 — SMALL RING
- #9 5BY0-300101 — REAR DRIVE SHAFT
- #10 9CR6-300204 — SMALL RING
- #11 9AWV-300103-8001 — SLEEVE Replacing: 9CR6-300203-10000 - DUST BOOT,FRONT DRIVE SHAFT
- #12 9CR6-300202 — BIG CLAMP
- #13 9CR6-300206-10000 — DRIVE GEAR, REAR AXLE
