5BY0-060102BEARING RETAINER, SWING ARM — Genuine CF MOTO Part
CF MOTOoem
5BY0-060102 - BEARING RETAINER, SWING ARM #11
Verified fitment — 20 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Australia (10)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 1.28 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 1.19 | listing | cfmoto.quadzillaparts.co.uk |

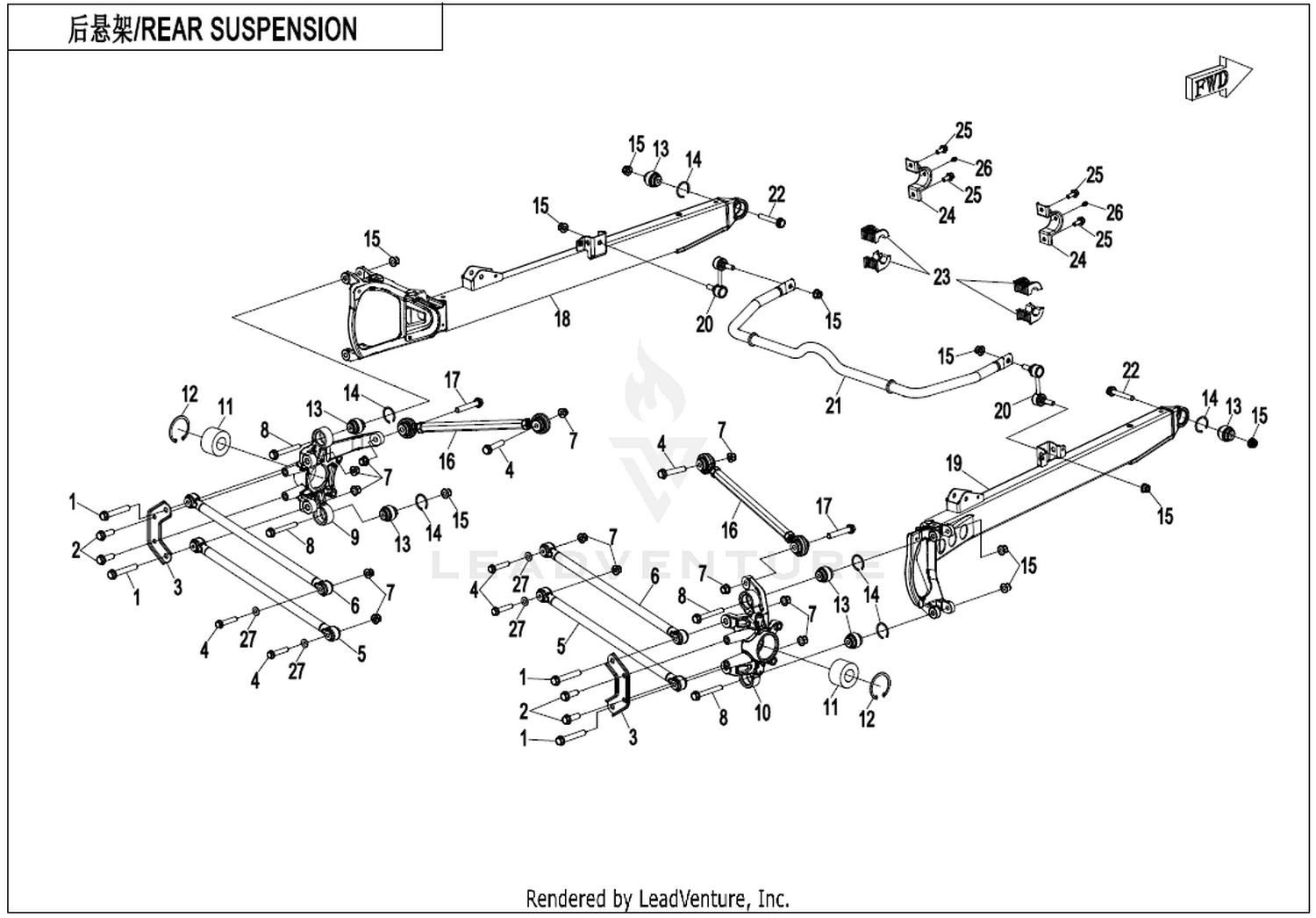

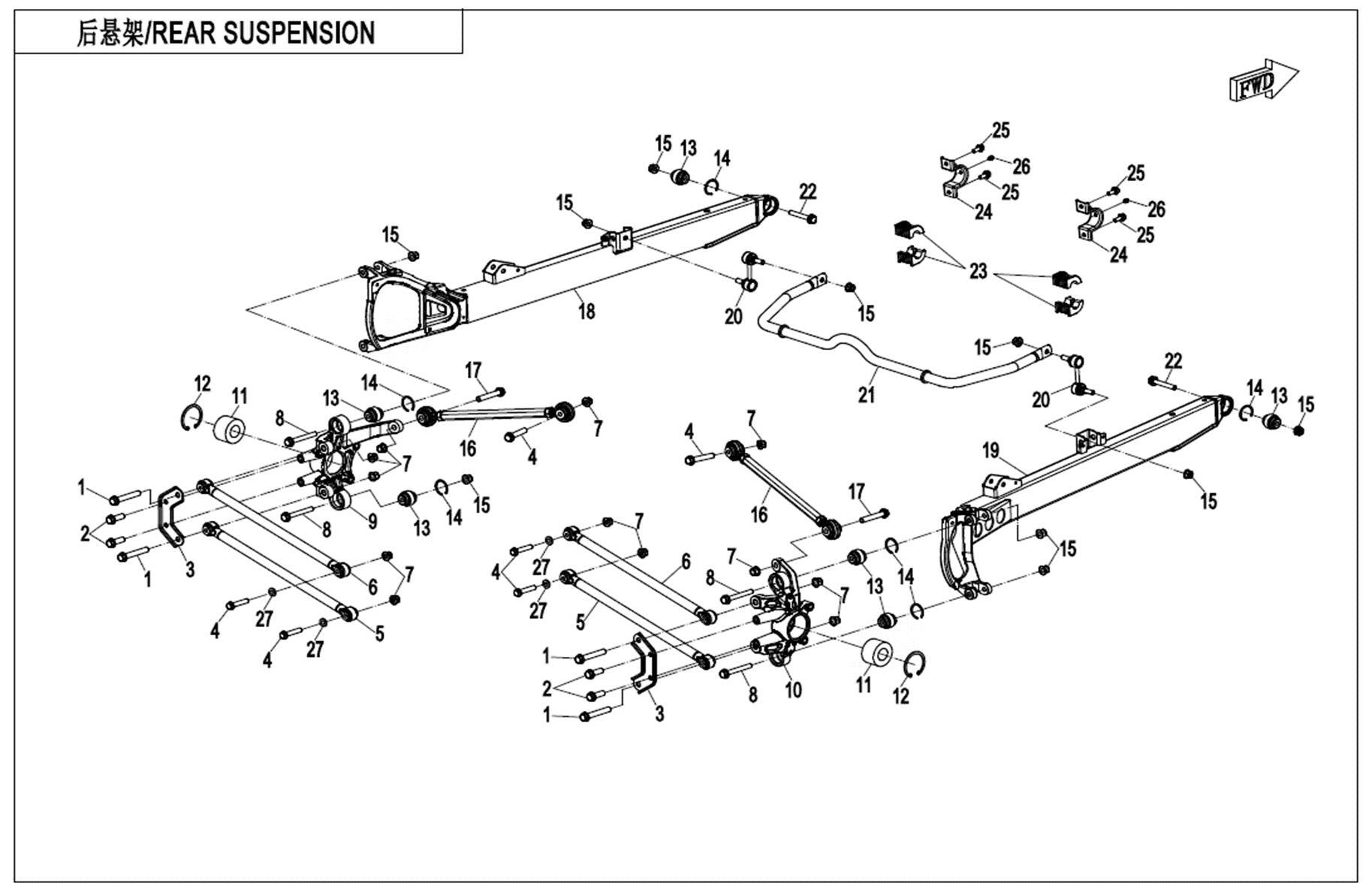

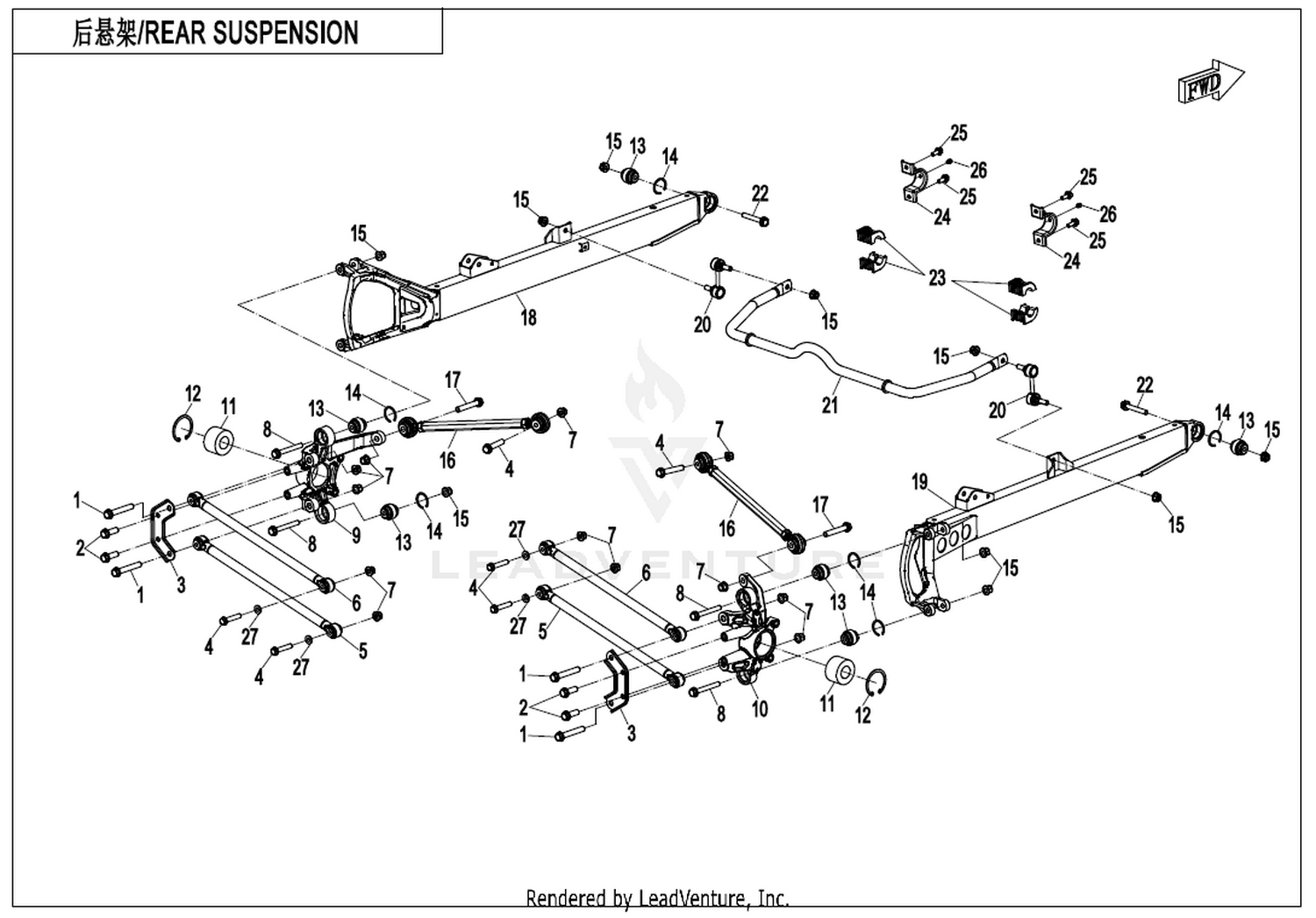

Location in exploded diagrams
Other parts on this diagram — REAR SUSPENSION
- #1 5BY0-060703 — MOUNTING SHAFT, REAR TIE ROD
- #2 30006-102030810 — BOLT M10X1.25X30
- #3 5BY0-060702 — MOUNTING BRACKET, REAR WHEEL SHAFT SEAT ELECTROPHORESIS BLACK
- #4 30001-122060160 — BOLT M10X1.25X60
- #5 5BY0-060400 — LOWER TIE ROD, REAR SWING ARM
- #6 5BY0-060300 — UPPER TIE ROD, REAR WSING ARM
- #7 30204-122810 — NUT M12X1.25
- #8 30006-102080110 — BOLT
- #9 5BY0-060701 — REAR LH AXLE SEAT
- #10 5BY0-060801 — REAR RH AXLE SEAT
- #17 30001-122070160 — BOLT M10X1.25X70
- #11 30411-03081 — HUB BEARING Replacing: 30411-03080 - HUB BEARING
- #12 30800-06005 — CIRCLIP FOR HOLE
- #13 5BY0-060120 — BEARING, REAR SWING ARM
- #15 30204-102810 — NUT M10X1.25
- #16 5BY0-060900 — ADJUSTING LEVER, REAR SWING ARM
- #18 5BYV-060110-1000 — REAR LH SWING ARM ASSY ELECTROPHORESIS BLACK Replacing: 5BY0-060110 - REAR LH SWING ARM ASSY ELECTROPHORESIS BLACK
- #19 5BYV-060210-1000 — REAR RH SWING ARM ASSY ELECTROPHORESIS BLACK Replacing: 5BY0-060210 - REAR RH SWING ARM ASSY ELECTROPHORESIS BLACK
- #20 5BYA-060620 — SWAY BAR BALL PIN
- #21 5BYA-060610 — REAR SWAY BAR ASSY
- #22 30006-102060110 — BOLT
- #23 5BYA-060003 — SEAT, SWAY BAR
- #24 9030-060002 — COVER, SWAY BAR
- #25 30006-080016810 — BOLT M8X16
