5BY0-042017LH ROTATION SHAFT, STORAGE BOX — Genuine CF MOTO Part
CF MOTOoem
5BY0-042017 - LH ROTATION SHAFT, STORAGE BOX #14
Verified fitment — 10 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (7)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 1.28 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 1.19 | listing | cfmoto.quadzillaparts.co.uk |

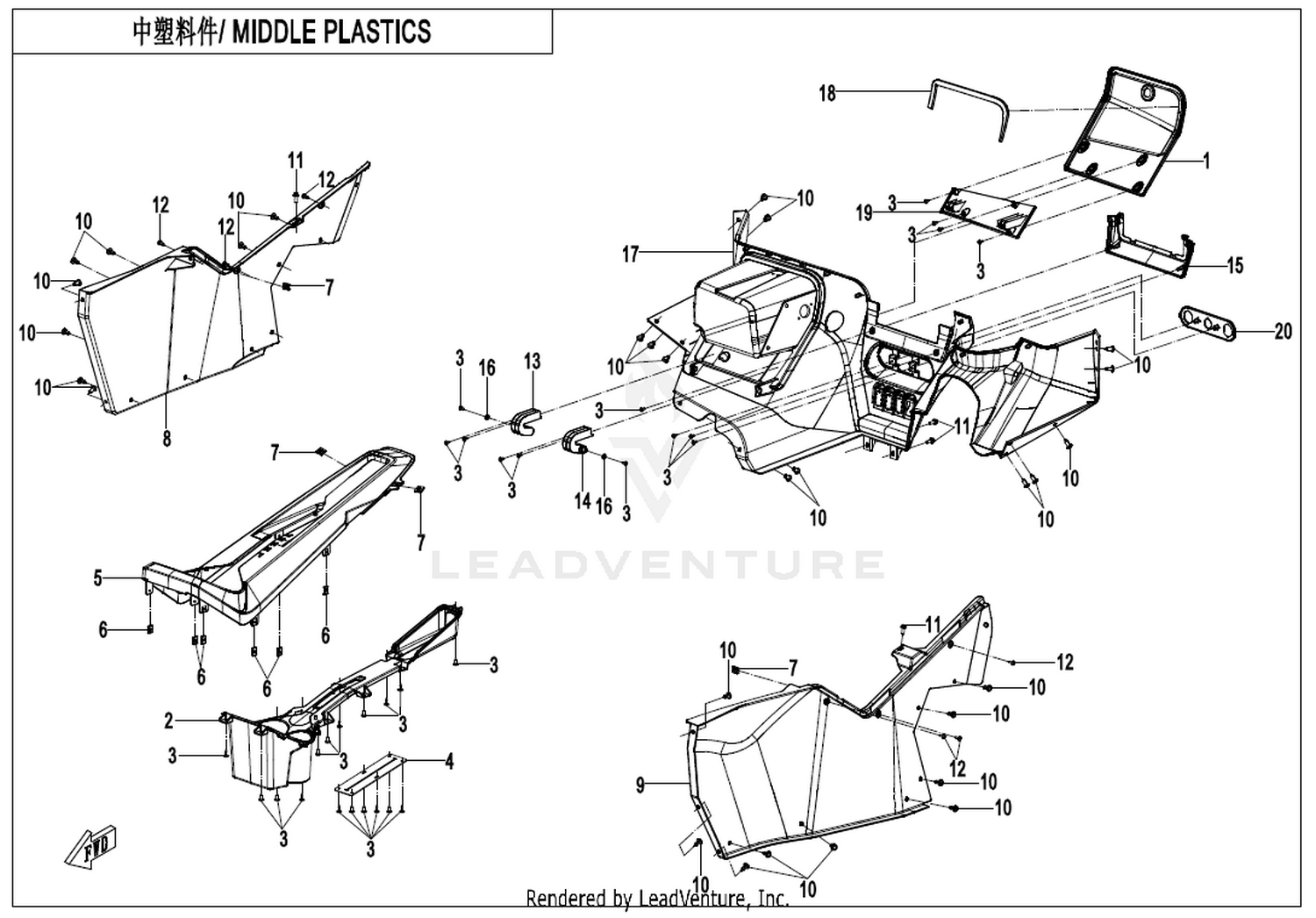

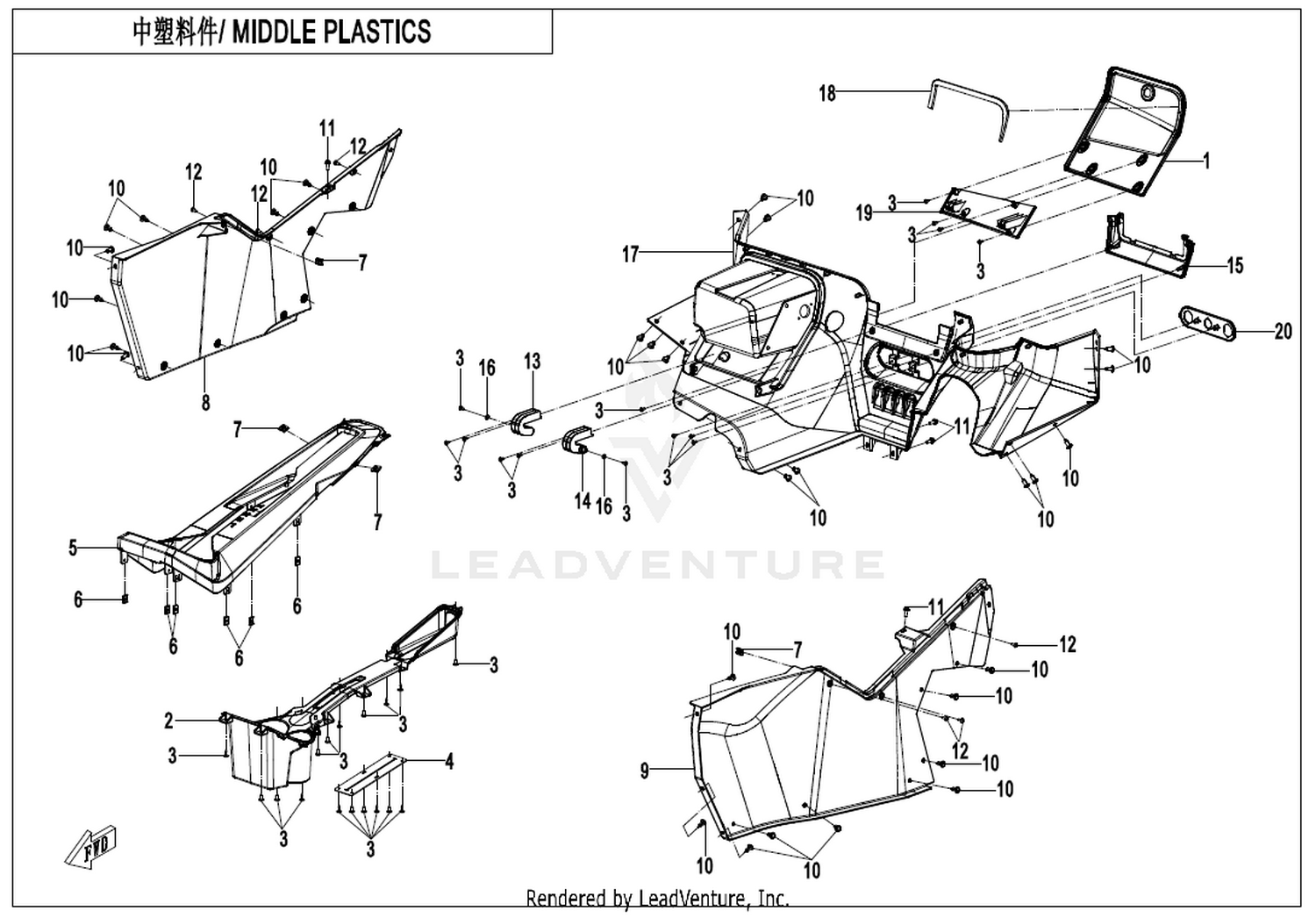

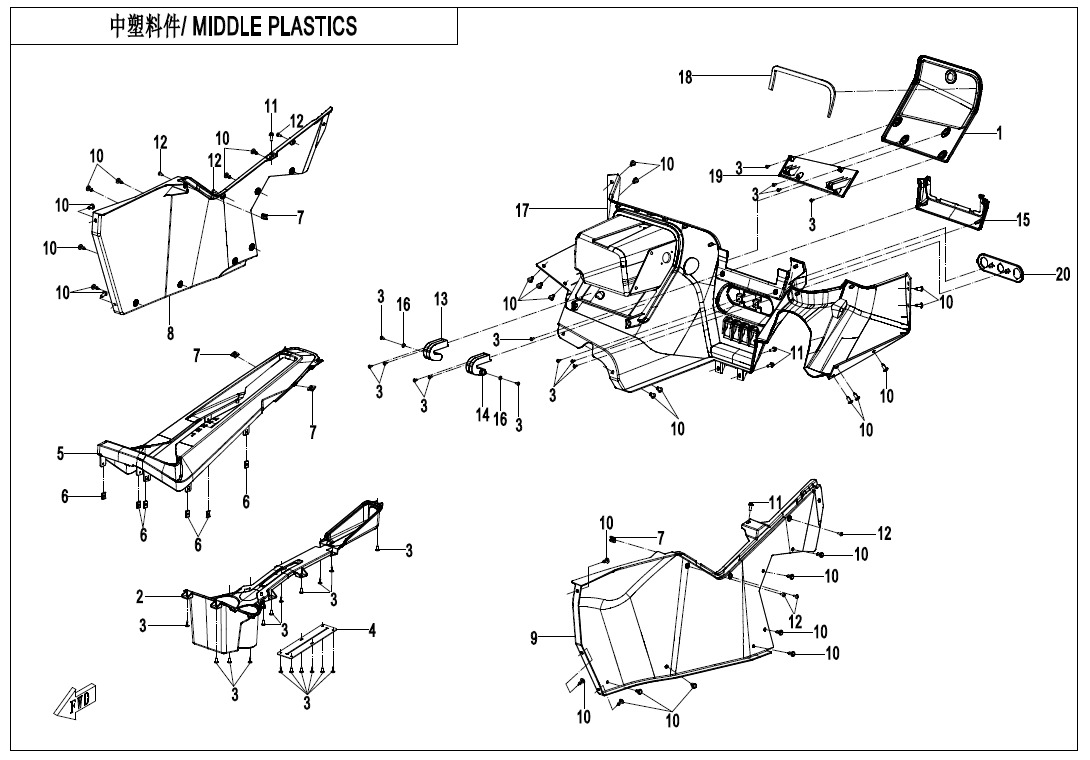

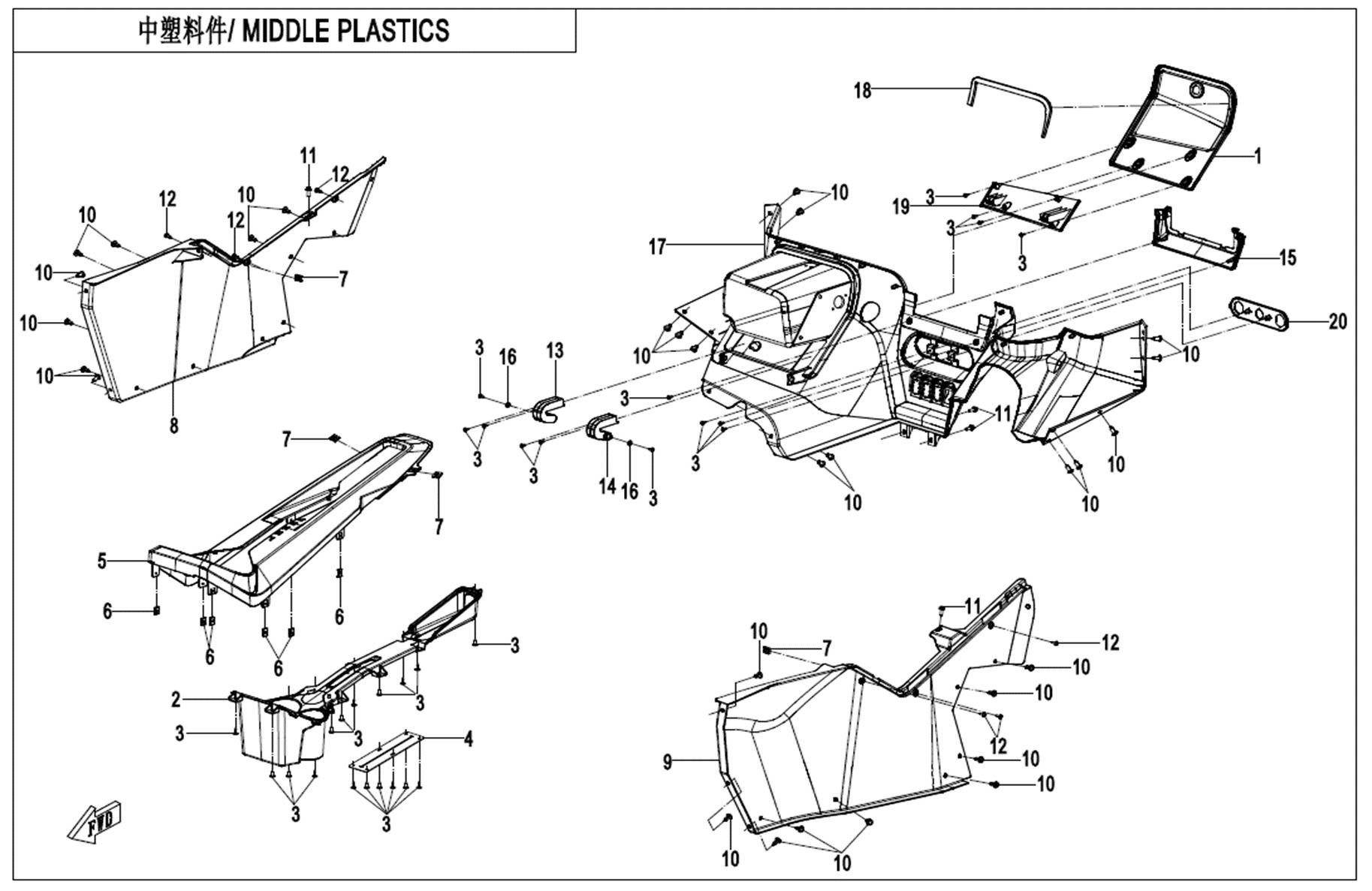

Location in exploded diagrams
Other parts on this diagram — MIDDLE PLASTIC
- #1 5BY0-042015 — STORAGE BOX COVER
- #2 5BY0-042044 — GEARSHIFT COVER
- #3 30110-421130010 — SELF-TAPPING SCREW. ST4.2X13
- #4 5BY0-042046 — SHADING RUBBER, GEARSHIFT LEVER
- #5 5BY0-042043-0H300 — MIDDLE PROTECTION COVER
- #6 8010-000002 — CLAMP ST4.2
- #7 8030-040800-00001 — NUT CLIP M6
- #8 5BY0-042042 — MIDDLE RH PANEL
- #9 5BY0-042041 — MIDDLE LH PANEL
- #10 9060-040310 — PLASTIC CLIPS
- #11 30006-060016810 — BOLT M6X16
- #12 30110-420130070 — SELF-TAPPING SCREW ST4.2X13-C-H
- #13 5BY0-042018 — RH ROTATION SHAFT, STORAGE BOX
- #15 5BY0-042014-0R400 — LOWER BRACKET,SWITCH, FIRE RED
- #16 30305-060112 — WASHER M6
- #17 5BY0-042011 — DASHBOARD PANEL
- #18 5BY0-042019 — SEAL STRAP, STORAGE BOX
- #19 5BY0-042016 — REINFORCEMENT PLATE, STORAGE BOX
- #20 5BY0-042012 — IGNITION SWITCH CAP (KEY)
