5BWA-060410Rear Lower Lh Swing Arm Assy Electrophoresis Black — Genuine CF MOTO Part
CF MOTOoem
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)

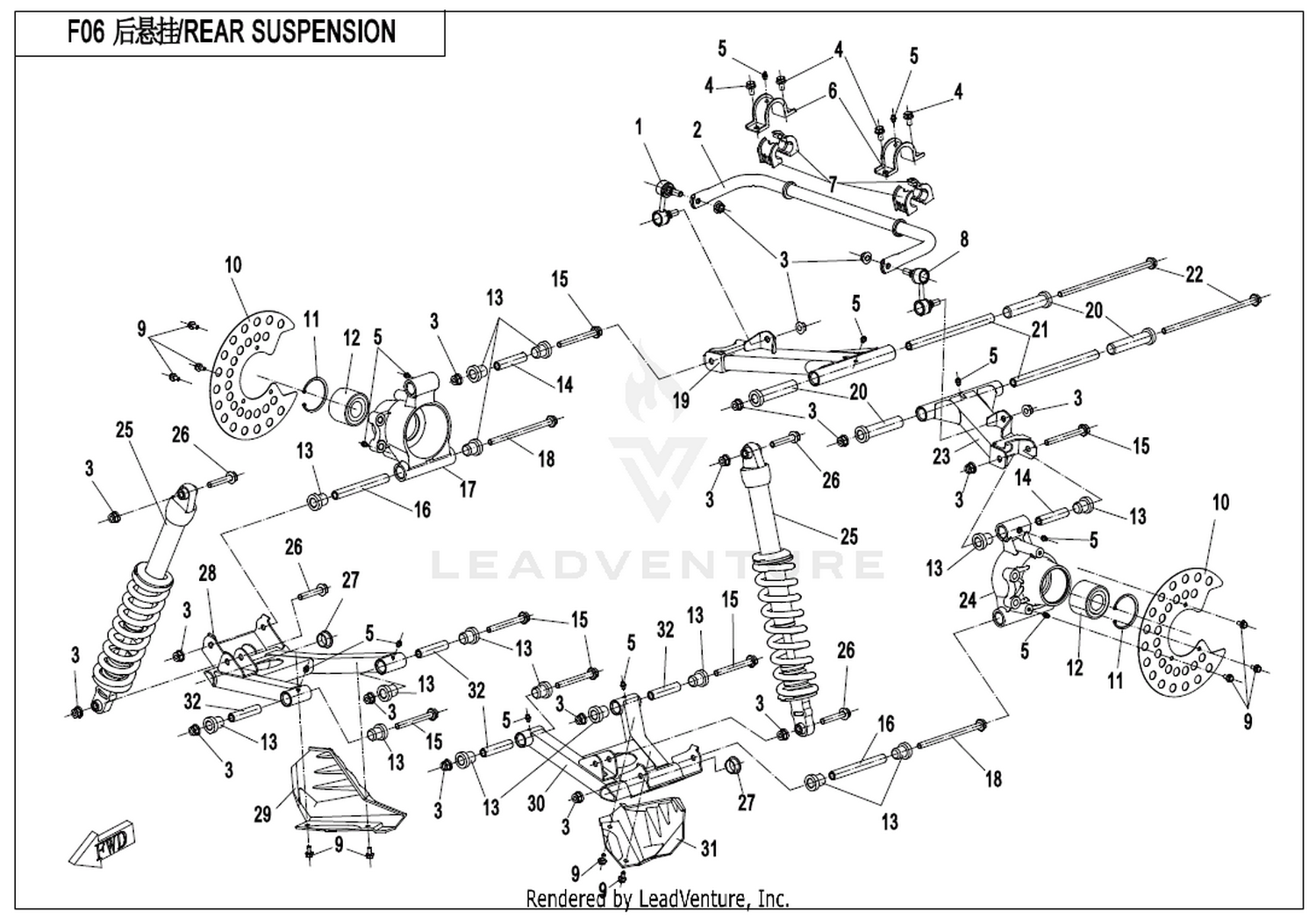

Location in exploded diagrams
Other parts on this diagram — Rear Suspension
- #01 30006-080016810 — Bolt M8X16@Color Zinc Trivalent Chromium
- #10 9060-060001 — Rear Brake Disc Guard
- #16 9060-060702-10002 — Rear Wheel Shaft Bracket Lower Middle Spacer
- #19 5BWA-060110-0V200 — Rear Upper Rh Swing Arm Assy Pearl White
- #23 5BWA-060310-0B001 — Rear Upper Lh Swing Arm Assy Electrophoresis Black
- #25 5BWA-060500-20000 — Rear Shock Absorber Yit, Oil Pressure
- #28 5BWA-060210 — Rear Lower Rh Swing Arm Assy Electrophoresis Black
- #17 9060-060201-00002 — Rear Lower Swing Arm Middle Spacer
- #30 3121401 — Oil Cup 45 Degree
- #11 30800-06300 — Circlip For Hole 63
- #17 9060-060703-20000 — Rear Lh Wheel Shaft Support
- #19 5BWA-060110-0R400 — Needs Description
- #23 5BWA-060310-0V201 — Rear Upper Lh Swing Arm Assy Pearl White
- #25 5BWA-060500-10001 — Rear Shock Absorber Assy Yit
- #29 5BWA-060201 — Rear Rh Suspension Fender
- #07 9030-060002 — Cover, Sway Bar
- #12 30499-03081 — Bearing, Hub Dac3063W
- #07 9060-060704 — Rear Wheel Shaft Bracket Lower Mounting Shaft
- #19 5BWA-060110 — Rear Upper Rh Swing Arm Assy Electrophoresis Black
- #23 5BWA-060310-0R401 — Rear Upper Lh Swing Arm Assy Fire Red
- #16 30006-102055810 — Bolt M10×1.25×55
- #08 9010-060800-20000 — Rh Ball Pin Assy Ccvi
- #07 9030-060003 — Rubber Support Seat
- #24 9060-050003 — Short Bushing, Swing Arm
