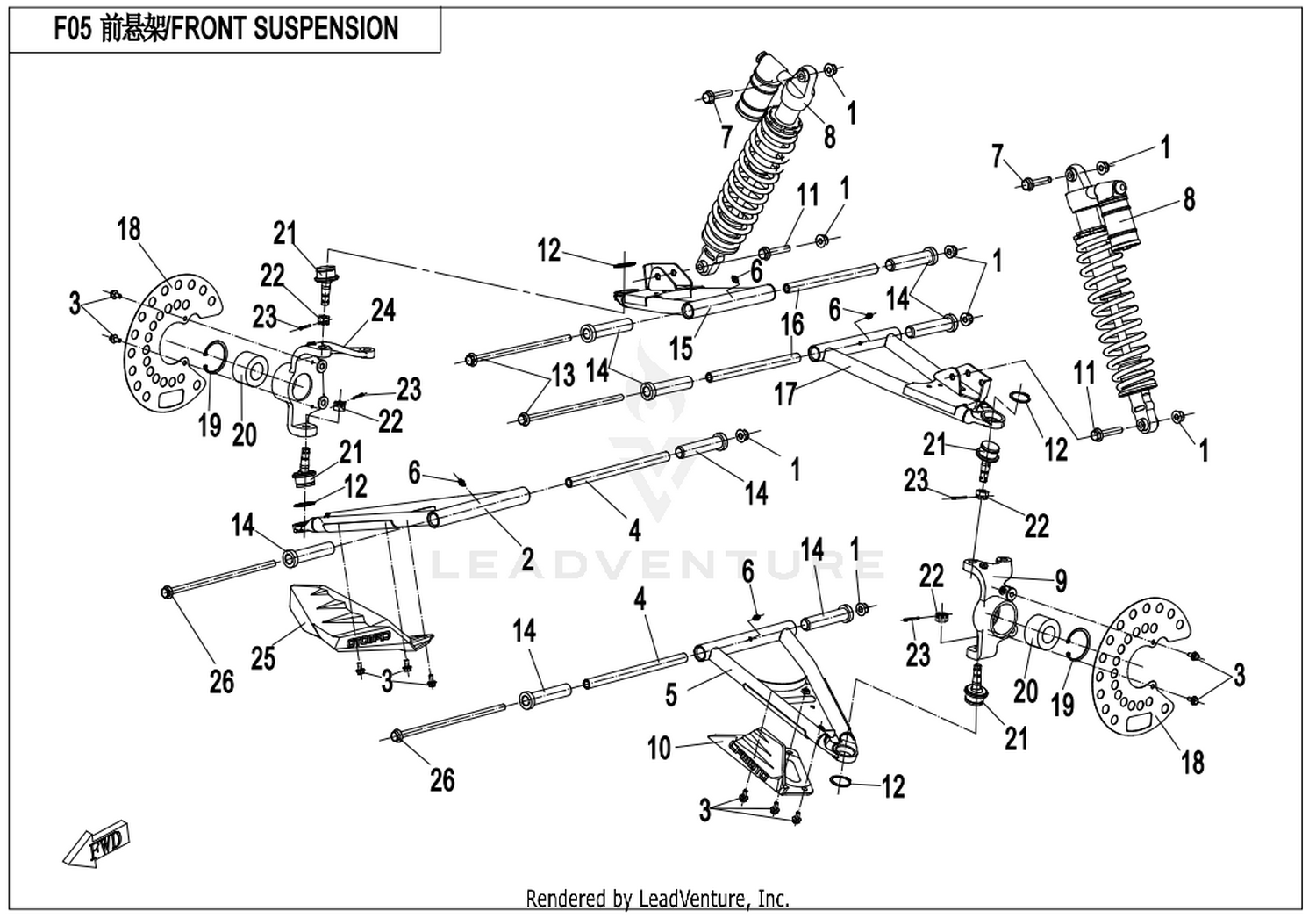

Location in exploded diagrams
Other parts on this diagram — Front Suspension
- #28 9060-050101-00002 — Middle Spacer, Front Swing Arm
- #08 5BWA-050500-10000 — Front Shock Absorber Gas Shock Absorber
- #24 4060-060101 — Rear Swing Arm Mounting Shaft
- #17 5BWA-050310-0V200 — Front Upper Lh Swing Arm Assy Pearl White
- #08 9030-050600-10000 — Main Pin Assy Ccvi
- #04 30204-102810 — Nut M10×1.25
- #05 5BWA-050410 — Front Lower Lh Swing Arm Assy Electrophoresis Blac
- #08 5BWA-050500-20000 — Front Shock Absorber Oil Shock Absorber
- #20 9060-050002 — Long Bushing, Swing Arm
- #17 5BWA-050310-0R400 — Front Upper Lh Swing Arm Assy Fire Red
- #33 30219-122810 — Nut M12X1.25@Color Zinc Trivalent Chromium
- #02 5BWA-050210 — Front Lower Rh Swing Arm Assy Electrophoresis Blac
- #05 5BWA-050410-0V200 — Front Lower Lh Swing Arm Assy Pearl White
- #09 5BWA-050702 — Lh Steering Knuckle
- #15 5BWA-050110 — Front Upper Rh Swing Arm Assy Electrophoresis Blac
- #17 5BWA-050310 — Front Upper Lh Swing Arm Assy Electrophoresis Blac
- #34 30903-0322210 — Cotter Pin F3.2X22@Color Zinc Trivalent Chromium
- #02 5BWA-050210-0R400 — Front Lower Rh Swing Arm Assy Fire Red
- #05 5BWA-050410-0R400 — Front Lower Lh Swing Arm Assy Fire Red
- #10 7000-050003 — Lh Panel, Front Suspension
- #15 5BWA-050110-0V200 — Front Upper Rh Swing Arm Assy Pearl White
- #18 7000-050001 — Guard, Brake Disc
- #02 5BWA-050210-0V200 — Front Lower Rh Swing Arm Assy Pearl White
- #30 3121401 — Oil Cup 45 Degree
