Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 16.35 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 15.12 | listing | cfmoto.quadzillaparts.co.uk |
Location in exploded diagrams

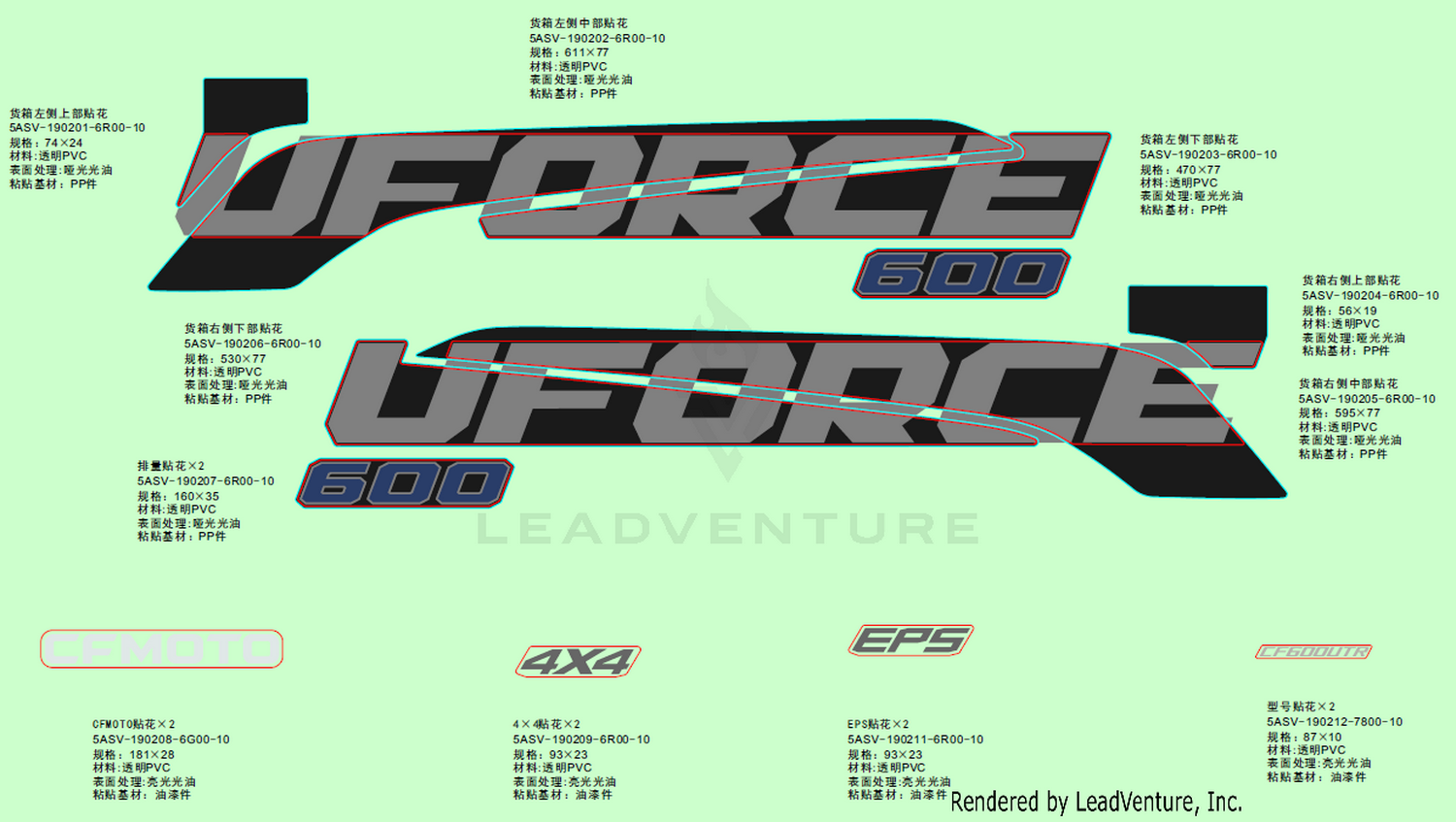

Other parts on this diagram — Decal Kits(Twilight Blue)
- #07 5ASV-190206-6R00-10 — Lower Decal, Cargo Box Rh Side Plate
- #02 5ASV-190201-6R00-10 — Cargo Box Lh Side Plate Upper Decal
- #08 5ASV-190207-6R00-10 — Displacement Decal
- #03 5ASV-190202-6R00-10 — Middle Decal, Cargo Box Lh Side Plate
- #04 5ASV-190208-6G00-10 — Cfmoto Decal
- #04 5ASV-190203-6R00-10 — Lower Decal, Cargo Box Lh Side Plate
- #05 5ASV-190209-6R00-10 — 4X4 Decal
- #05 5ASV-190204-6R00-10 — Upper Decal, Cargo Box Rh Side Plate
- #06 5ASV-190211-6R00-10 — Eps Decal
- #06 5ASV-190205-6R00-10 — Middle Decal, Cargo Box Rh Side Plate
- #12 5ASV-190212-7800-10 — Model Decal
