Verified fitment — 7 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| USD | 6.99 | listing | cfmotousaparts.com |
Location in exploded diagrams

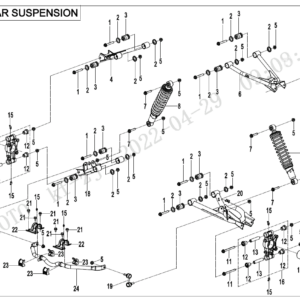

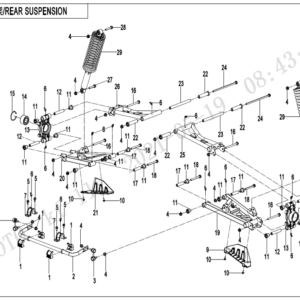

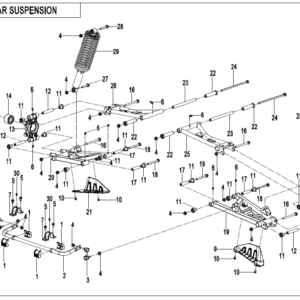

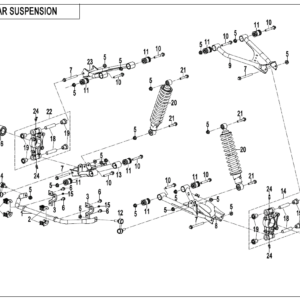

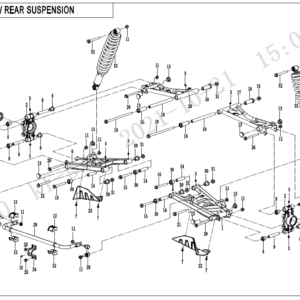

Other parts on this diagram — REAR SUSPENSION
- #02 5ASV-060610-6000 — REAR SWAY BAR ASSY
- #03 9010-060700-20000 — CCVI SWAY BAR LINK - LEFT
- #08 9010-060800-20000 — CCVI SWAY BAR LINK - RIGHT
- #17 9060-060201-00002 — MIDDLE SPACER, REAR LOWER SWING ARM
- #19 5ASV-060210-6000 — REAR LOWER SWING ARM, LH
- #20 5ASV-060410-6000 — REAR LOWER SWING ARM, RH
- #21 5HYV-060401-1000 — GUARD, REAR RH SWINGARM
- #22 5ASV-050001-6000 — LONG BUSHING
- #23 9060-060101-00002 — MIDDLE SPACER, REAR UPPER SWING ARM
- #25 5ASV-060110-6001 — REAR LH UPPER SWING ARM
- #29 5ASV-060500-6000-M1 — REAR SHOCK ABSORBER
