5ASV-042012-6001REAR RH FENDER — Genuine CF MOTO Part
CF MOTOoem
5ASV-042012-6001 - REAR RH FENDER #8
Verified fitment — 5 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
United States (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 21.62 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 19.99 | listing | cfmoto.quadzillaparts.co.uk |
| USD | 50.99 | listing | cfmotousaparts.com |

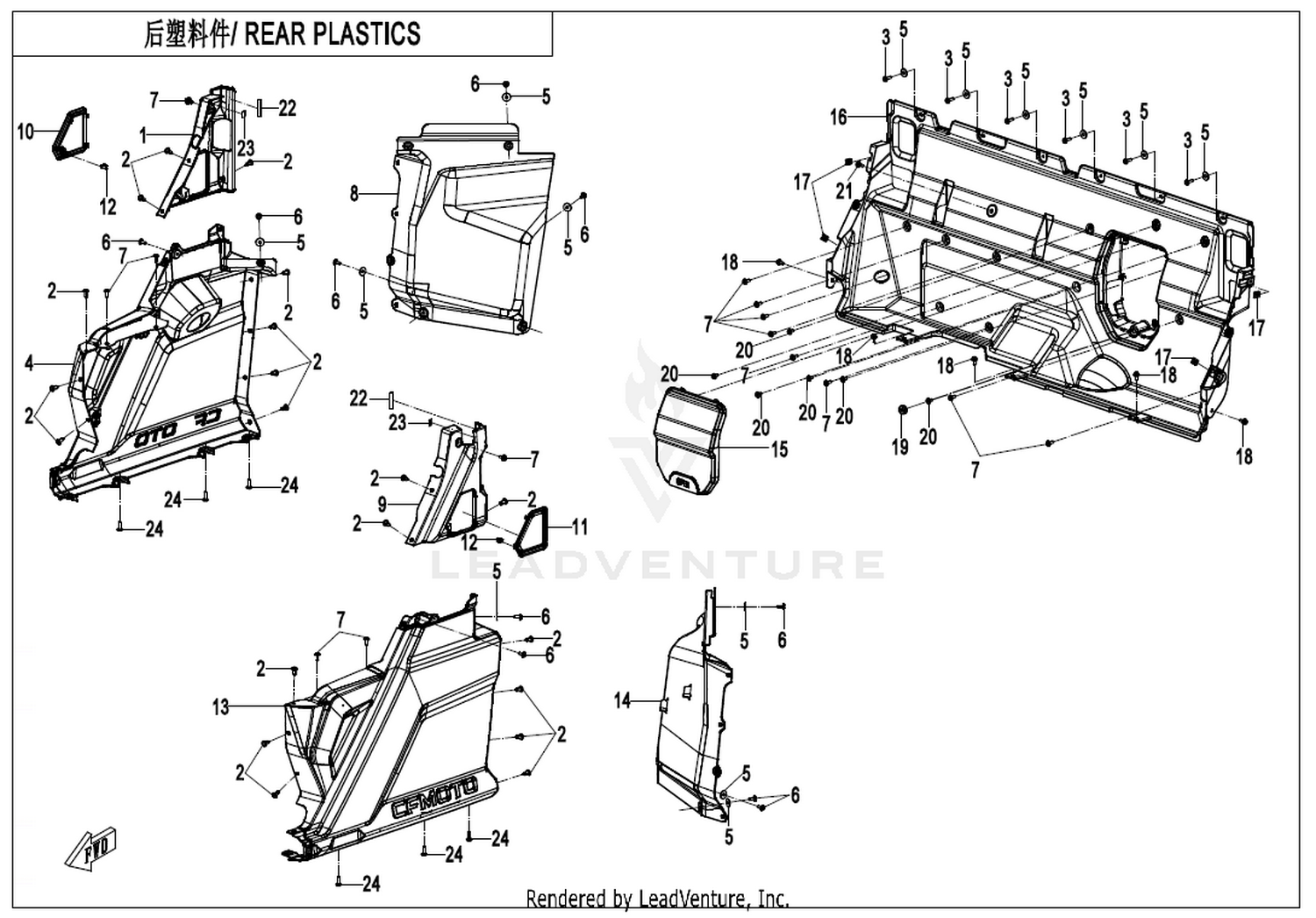

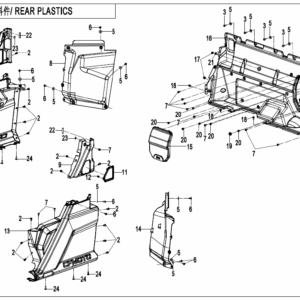

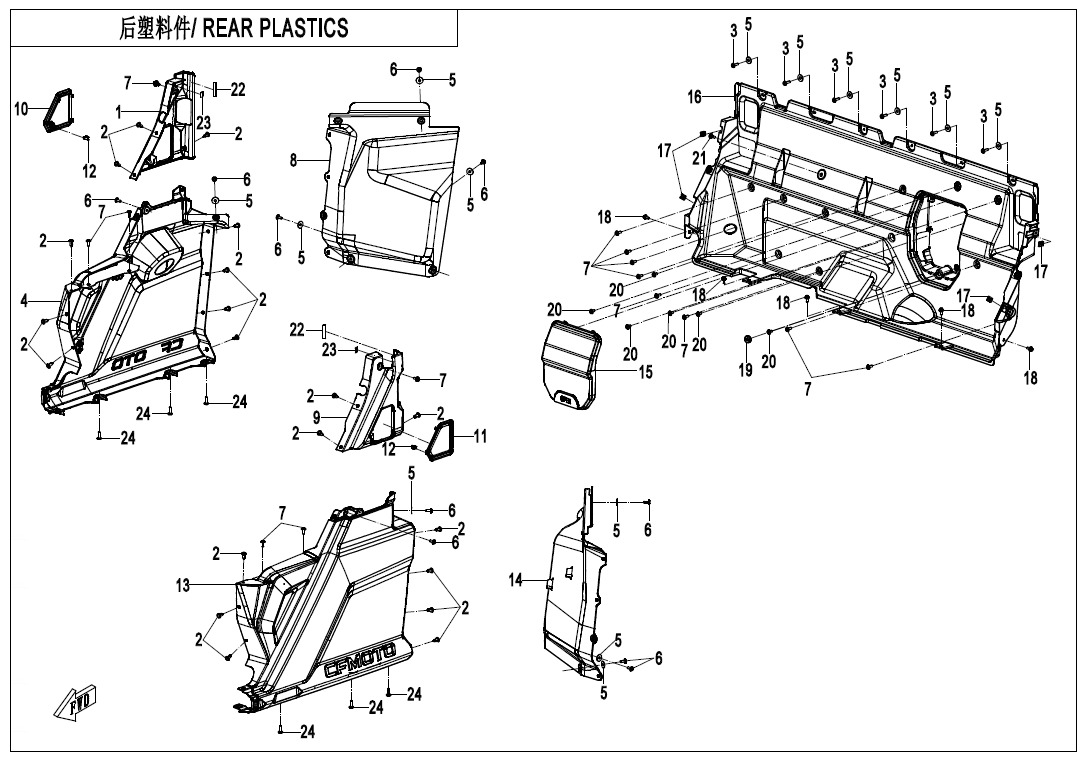

Location in exploded diagrams





Other parts on this diagram — REAR PLASTICS
- #24 5BWV-040007-5000 — INNER HEX BOLT M6X20
- #1 5ASV-042022-6000 — REAR RH UPPER PANEL
- #2 9060-040310 — PLASTIC CLIPS
- #3 5BWV-040008-5000 — INNER HEX BOLT M6X20
- #4 5ASV-042024-5001 — REAR RH PANEL
- #5 30301-060470 — WASHER
- #6 6NQ#-000203-6001 — INNER HEX SCREW M6X20
- #7 6NQ#-000206-6001 — INNER HEX SCREW M6X16
- #9 5ASV-042021-6000 — REAR LH UPPER PANEL
- #10 5ASV-042032-6000 — RH SERVICE COVER
- #11 5ASV-042031-6000 — LH SERVICE COVER
- #12 8080-000001 — CLASP
- #13 5ASV-042023-5001 — REAR LH PANEL
- #14 5ASV-042011-6001 — REAR LH FENDER
- #15 5ASV-042052-6000 — ECU COVER
- #16 5ASV-042051-6002 — REAR GUARD, SEAT
- #17 8030-040800-00001 — NUT CLIP M6
- #18 8010-000004 — BOLT M6X14
- #19 5BY0-040010 — RUBBER SLEEVE
- #20 6KM#-040702-8000 — INNER HEX SCREW M6X12
- #21 6NQ#-000205-6001 — MOUNTING SCREW, CHAIN GUARD
- #22 6KM#-040076-8000 — SPONGE STRAP 2
- #23 6KM#-040077-8000 — SPONGE STRAP 3
