Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (2)
Location in exploded diagrams

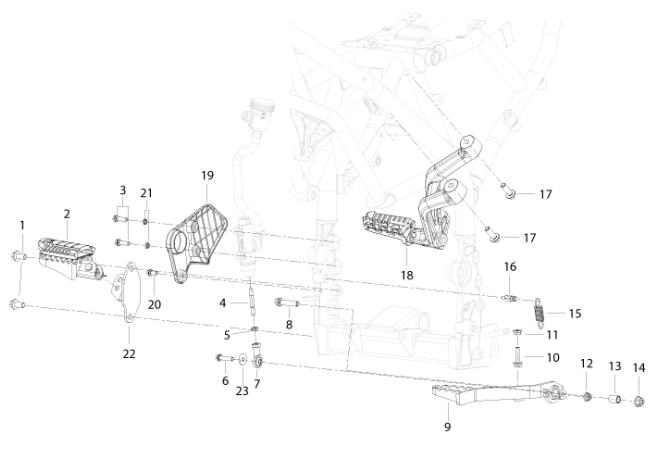

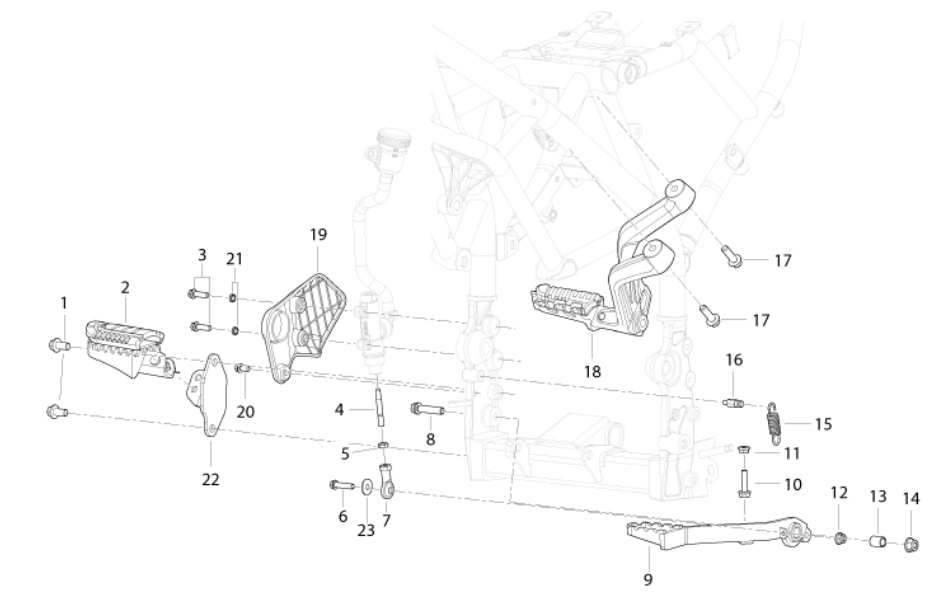

Other parts on this diagram — T025 - Right Foot Pegs
- B07020000602 — Benelli BKX 125 WASHER 6MM
- B0702000060H — Benelli BKX 125 WASHER
- 58250PCN0000 — Benelli BKX 125 RH. FRONT FOOT PEG HOLDER PLATE
- R90752971B — Benelli BKX 125 RUBBER BUSHING
- 65805S010010 — Benelli BKX 125 BUSH
- 160306030180 — Benelli BKX 125 SCREW M6X14
- 65692U560000 — Benelli BKX 125 RH. FRONT FOOT PEG HOLDER
- 58280PCN0000 — Benelli BKX 125 RH. REAR FOOT PEG HOLDER
- 160306030150 — Benelli BKX 125 SCREW M8X25
- 40273P250001 — Benelli BKX 125 THREADED PIN
- R320452156000 — Benelli BKX 125 SPRING
- 40702P100002 — Benelli BKX 125 THE REAR BRAKE RETURN SPRING
- B04170800045 — Benelli BKX 125 NUT (M8)
- B04170800042 — Benelli BKX 125 NUT M8
- B0417080004H — Benelli BKX 125 NUT M8
- B04170600042 — Benelli BKX 125 NUT M6
- B04170600045 — Benelli BKX 125 U-NUT M10
- B04170600055 — Benelli BKX 125 NUT M6
- B0417060004H — Benelli BKX 125 self locking nut M6
- B04070600052 — Benelli BKX 125 NUT M6
- B0407060005H — Benelli BKX 125 HEX NUTS WITH FLANGE M6
- B01010604005 — Benelli BKX 125 BOLT M6×40
- 40710PCN0000 — Benelli BKX 125 BRAKE CONTROL PEDAL
- 160306030160 — Benelli BKX 125 SCREW TORX (M8X35)
