Verified fitment — 6 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (5)
China (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 18.24 | listing | motogbshop.co.uk |
Location in exploded diagrams

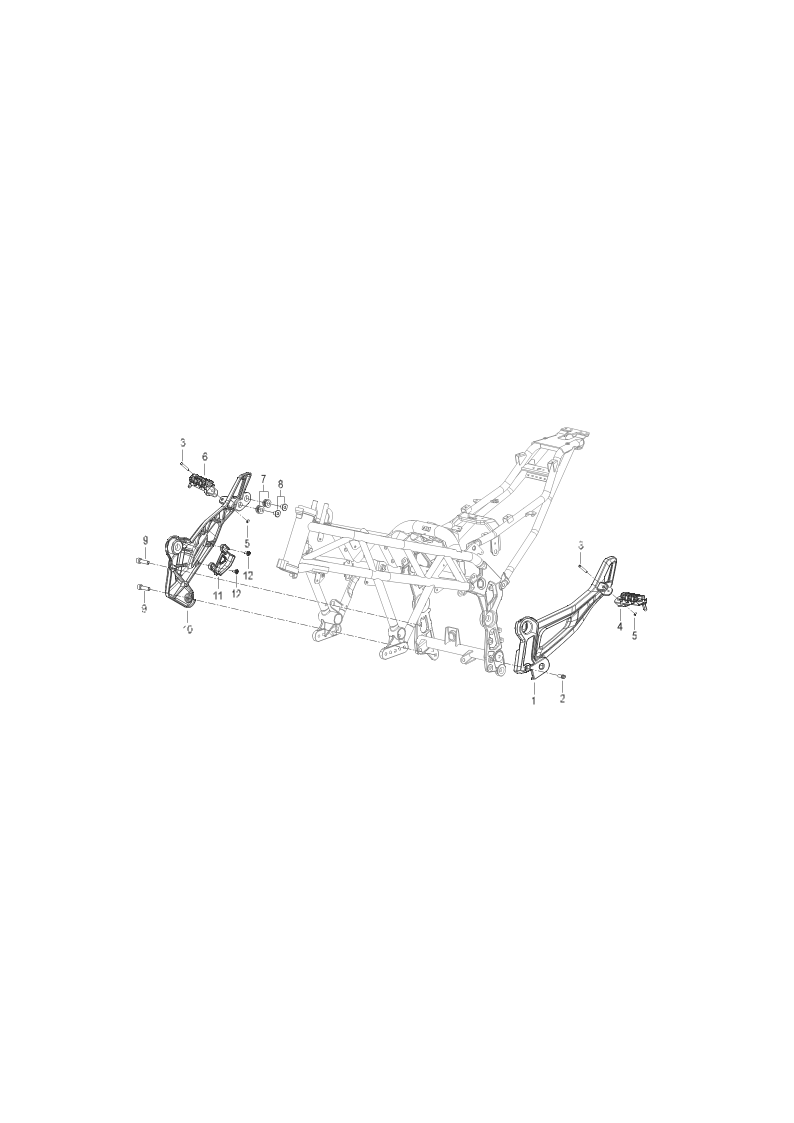

Other parts on this diagram — 脚蹬 PEDAL ASSY.
- #1 58266P080000 — LEFT HIND PEDAL SUPPORT
- #2 B02810601662 — BOLT M6×1×16
- #3 58217P180000 — PIN
- #4 58260P26000Z — THE LEFT REAR FOOT PEDAL
- #5 B090002018AH — OPEN-END PIN Φ2×18
- #7 65617H010010 — THE RUBBER SLEEVE II
- #8 65613P260000 — GUARD BUSHING
- #9 B0255100186H — SCREW M10×1.25×18
- #10 58286P080000 — RIGHT HIND PEDAL SUPPORT
- #11 47023P080000 — MUFFLER HOOD
- #12 B0284060150A — SCREW M6×15.2
