Verified fitment — 4 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 132.60 | listing | motogbshop.co.uk |
Location in exploded diagrams

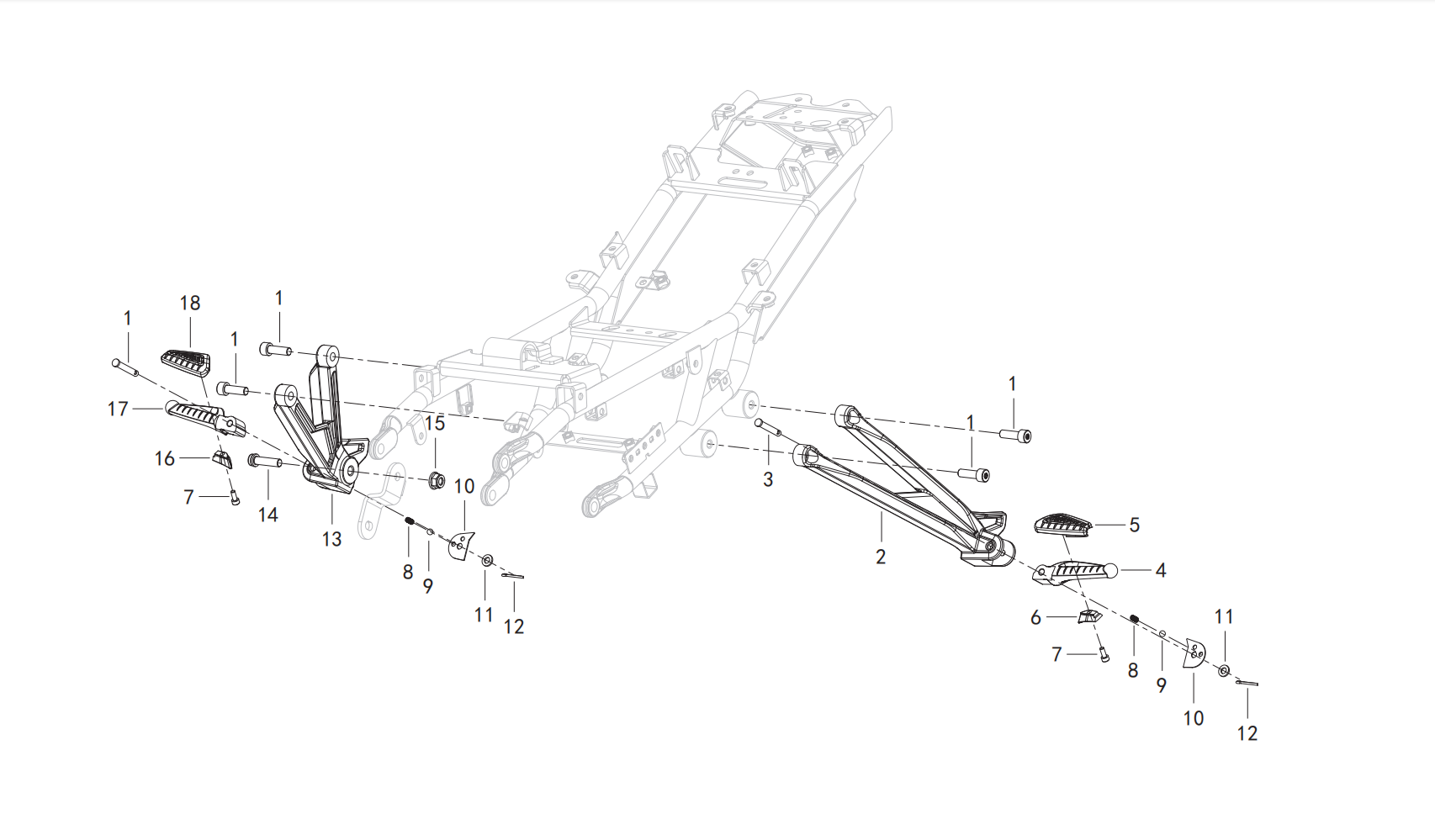

Other parts on this diagram — 踏蹬总成Ⅲ PEDALING ASSY.
- #1 B0226080256S — 内六角花形圆柱头螺钉M8×25
- #3 58217P100000 — 脚蹬安装销
- #4 58266P910010 — 左后脚蹬
- #5 08352S020000 — 左脚蹬橡胶
- #6 58205S020000 — 左脚蹬橡胶垫块
- #7 B0280040100A — 螺钉M4×10
- #8 58222B930000 — 前脚踏弹簧
- #9 B06000002000 — 脚蹬滚珠
- #10 58451S010000 — 脚蹬安装板
- #11 B0703000060H — 垫圈Φ6
- #12 B090002018AH — 开口销Φ2×18
- #13 58286PAK0000 — 右后脚蹬支架
- #14 B0226080306S — 内六角花形圆柱头螺钉M8×30
- #15 B0417080004H — 自锁螺母M8
- #16 58405S020000 — 右脚蹬橡胶垫块
- #17 58286P910010 — 右后脚蹬
- #18 08372S020000 — 右脚蹬橡胶
