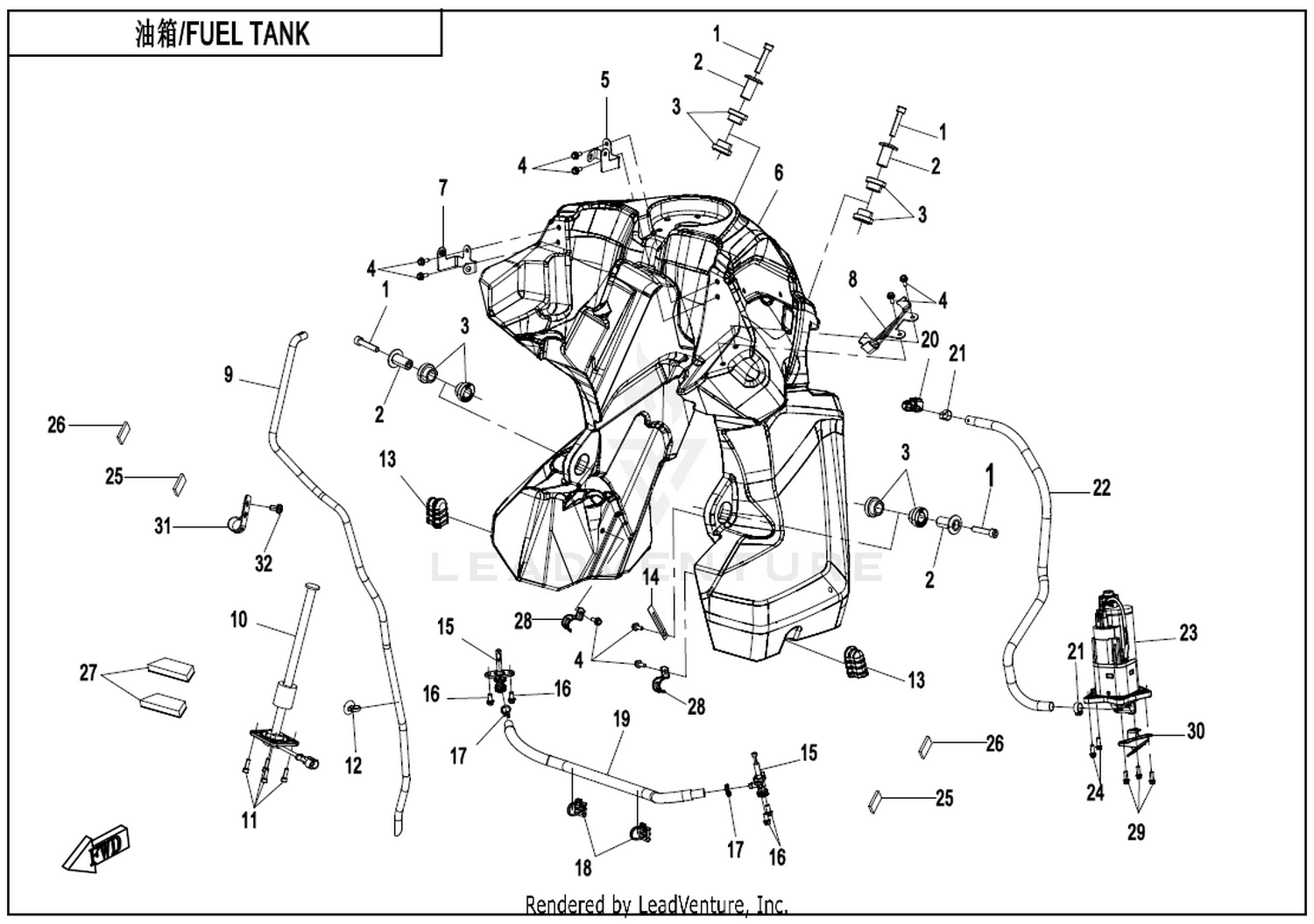

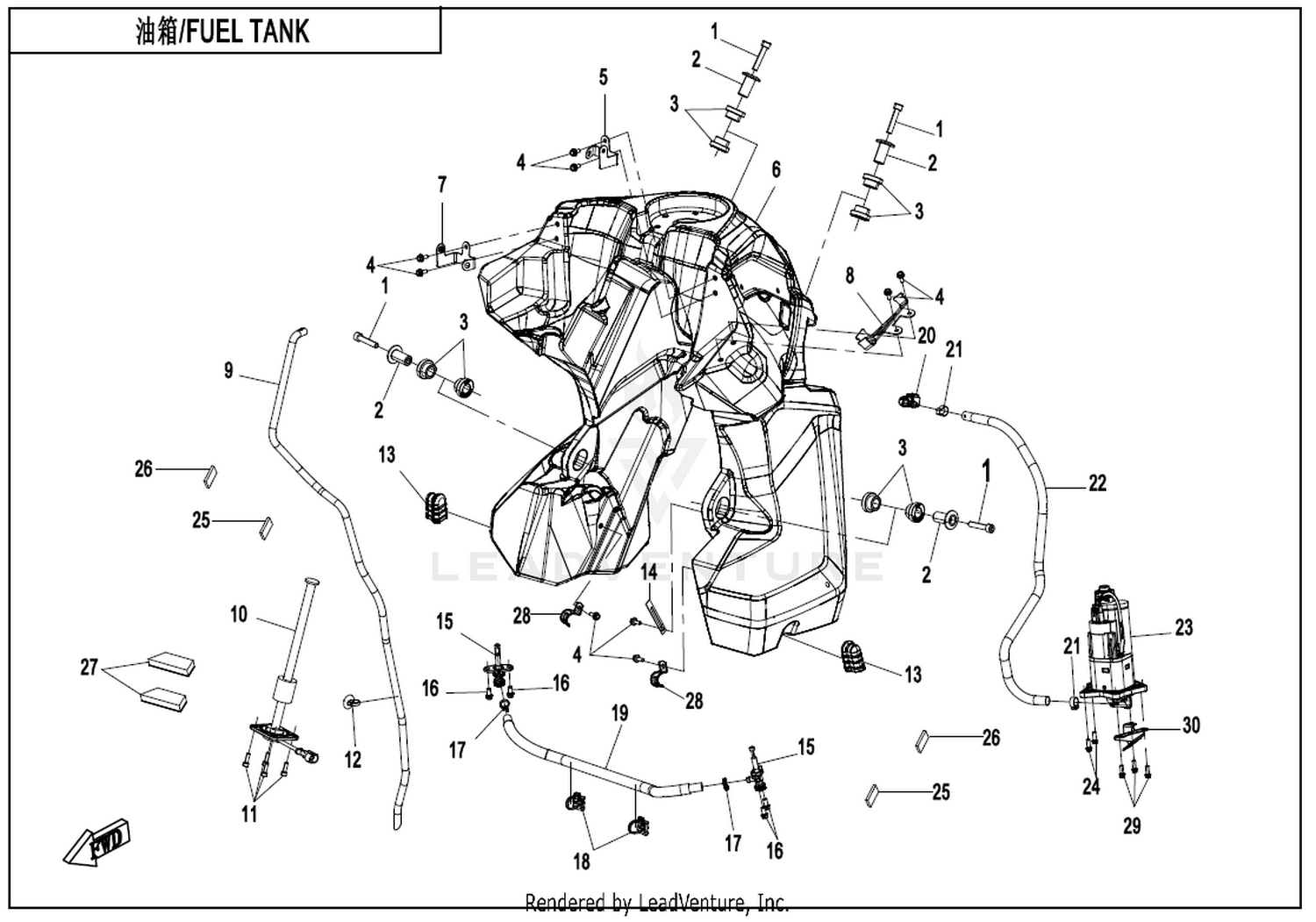

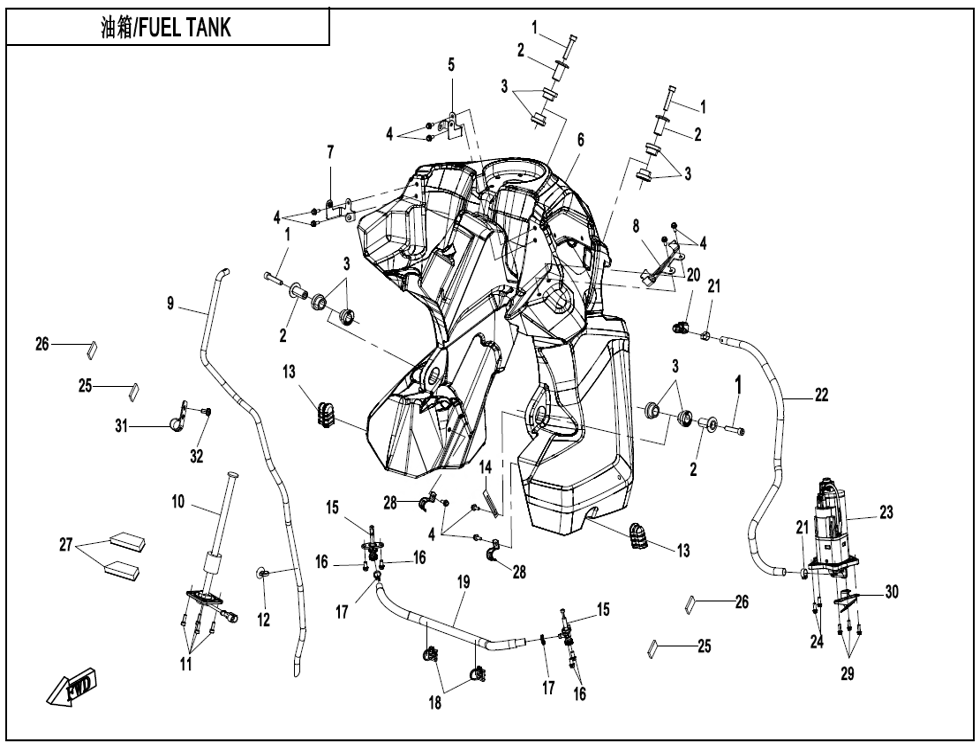

Location in exploded diagrams
Other parts on this diagram — Fuel Tank
- #10 30006-050012810 — Bolt M5×12
- #10 6WWV-170200-8001-M1 — Fuel Level Sensor
- #16 C0000250601200 — Hh Collar Screw M6X12 T30
- #22 6WWV-120010-8001 — High-Pressure Fuel Hose Assy
- #28 6WWV-030080-8000 — Hose Wire Clip
- #05 6WWV-030180-8001 — Dashboard Cover Plate Rear Lh Bracket
- #11 C0009120501600 — Cylinder Screw M5X16 Sw4
- #23 C63507088100 — Fuel Pump
- #29 C0000250602000 — Hh Collar Screw M6X30 With Washer M6X20
- #06 6WWV-121000-8001-0BV00 — Fuel Tank Assy Midnight Black
- #19 7030-150005 — Tie Band
- #18 6WWV-120050-8000 — Tie Band Assy
- #24 C0000250601600 — Hh Collar Screw M6X16 T30
- #30 6WWV-030090-8000 — Fuel Pump Bracket
- #05 30102-080040810 — Screw M8X40 M8X40
- #07 6WWV-030190-8001 — Dashboard Cover Plate Rear Rh Bracket
- #10 C60307020000 — Tank Absorption Rubber
- #19 6WWV-120020-8000 — Fuel Tank Connecting Pipe Assy
- #25 6GU#-040072-6000 — Sponge Mat
- #02 6WWV-120002-8000 — Fuel Tank Bushing
- #08 6WWV-030160-8000 — Bcm Bracket
- #16 0180-014010 — Wire Clamp
- #09 6090-120210 — Quick Joint
- #22 6KM#-040076-8000 — Sponge Strap 2
