Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

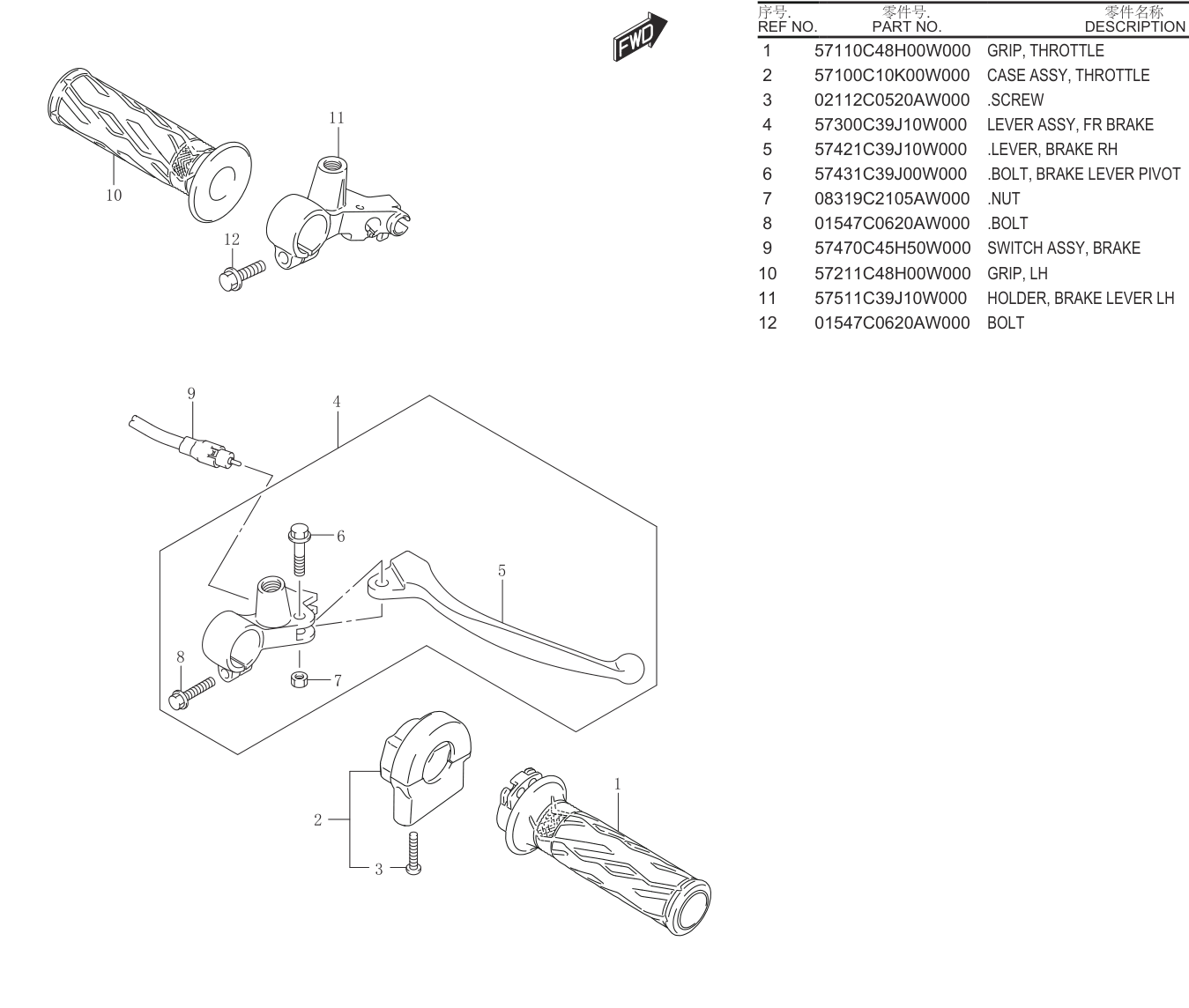

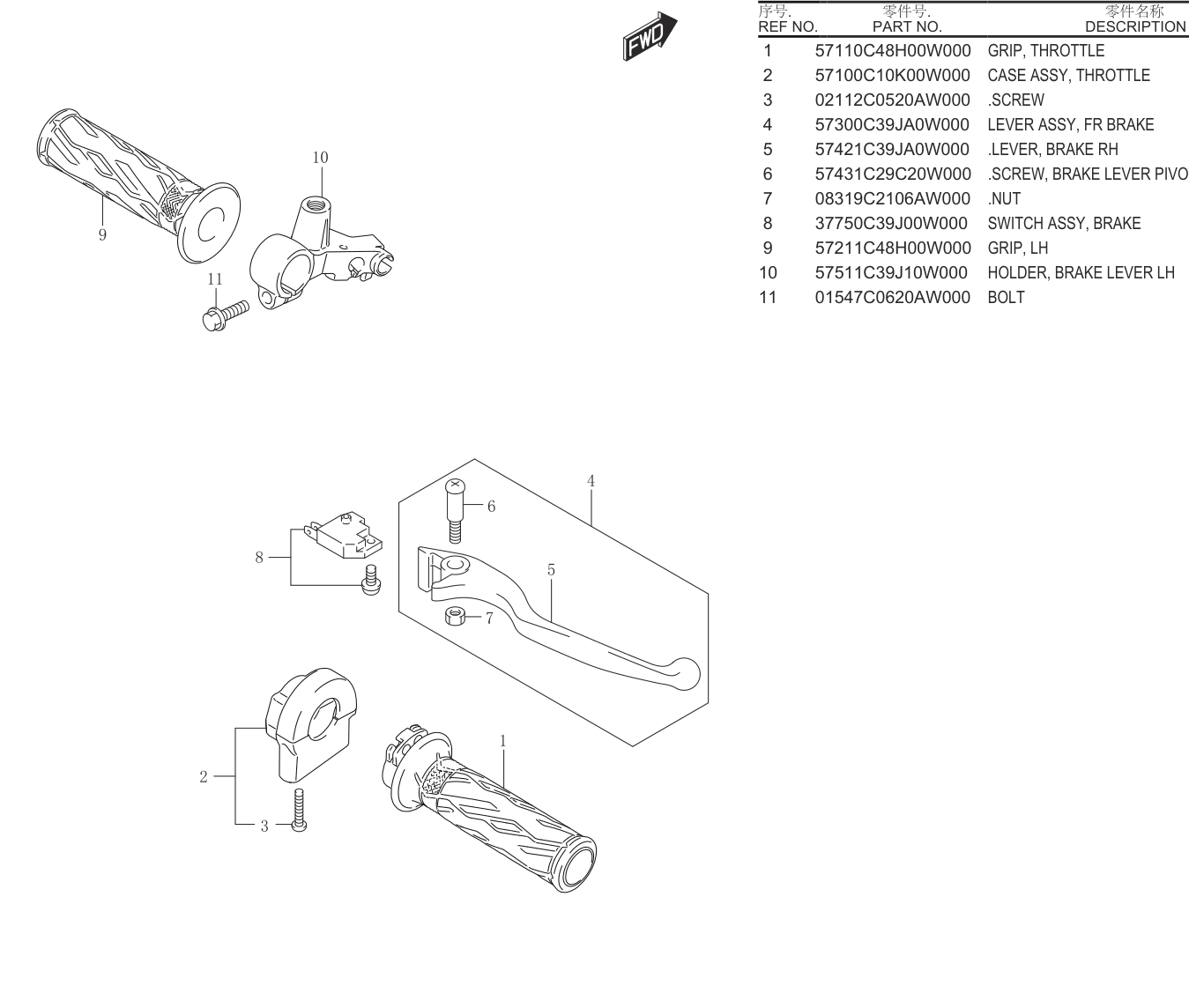

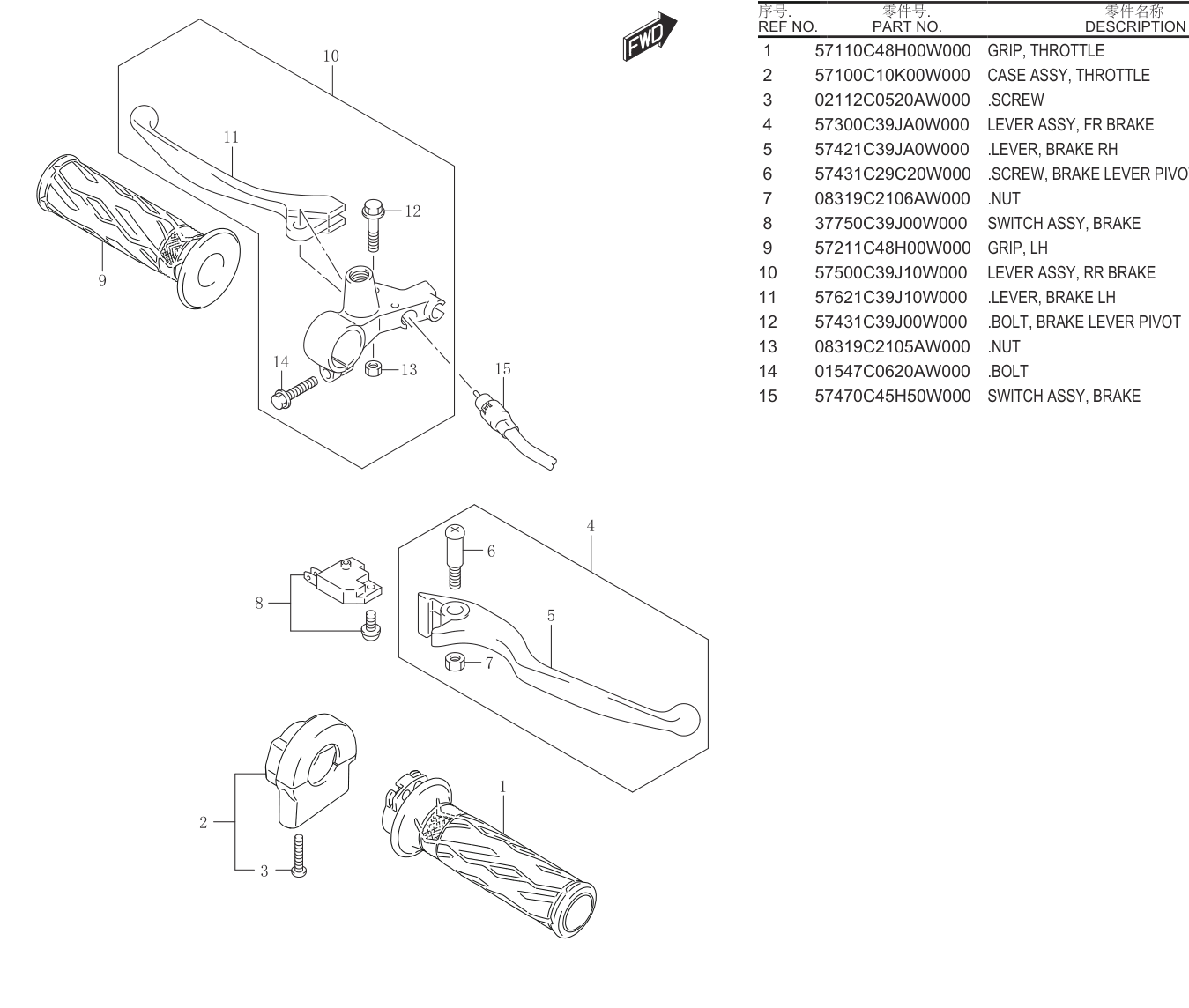

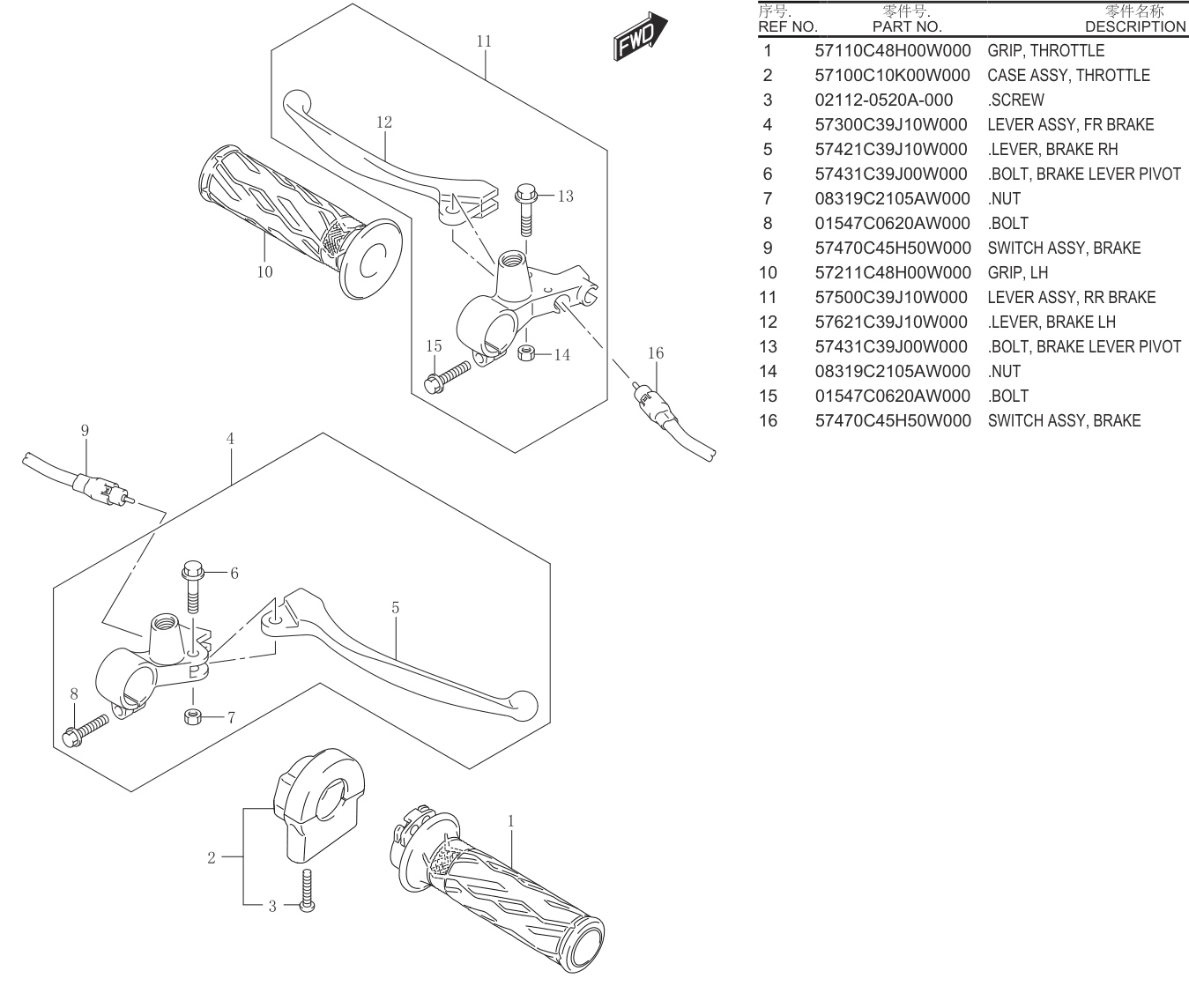

Location in exploded diagrams
Other parts on this diagram — 握把
- #2 57100C10K00W000 — CASE ASSY, THROTTLE
- #3 02112-0520A-000 — .SCREW
- #4 57300C39J10W000 — LEVER ASSY, FR BRAKE
- #5 57421C39J10W000 — .LEVER, BRAKE RH
- #6 57431C39J00W000 — .BOLT, BRAKE LEVER PIVOT
- #7 08319C2105AW000 — .NUT
- #8 01547C0620AW000 — .BOLT
- #9 57470C45H50W000 — SWITCH ASSY, BRAKE
- #11 57500C39J10W000 — LEVER ASSY, RR BRAKE
- #12 57621C39J10W000 — .LEVER, BRAKE LH
- #10 57211C48H00W000 — GRIP, LH
