Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (2)

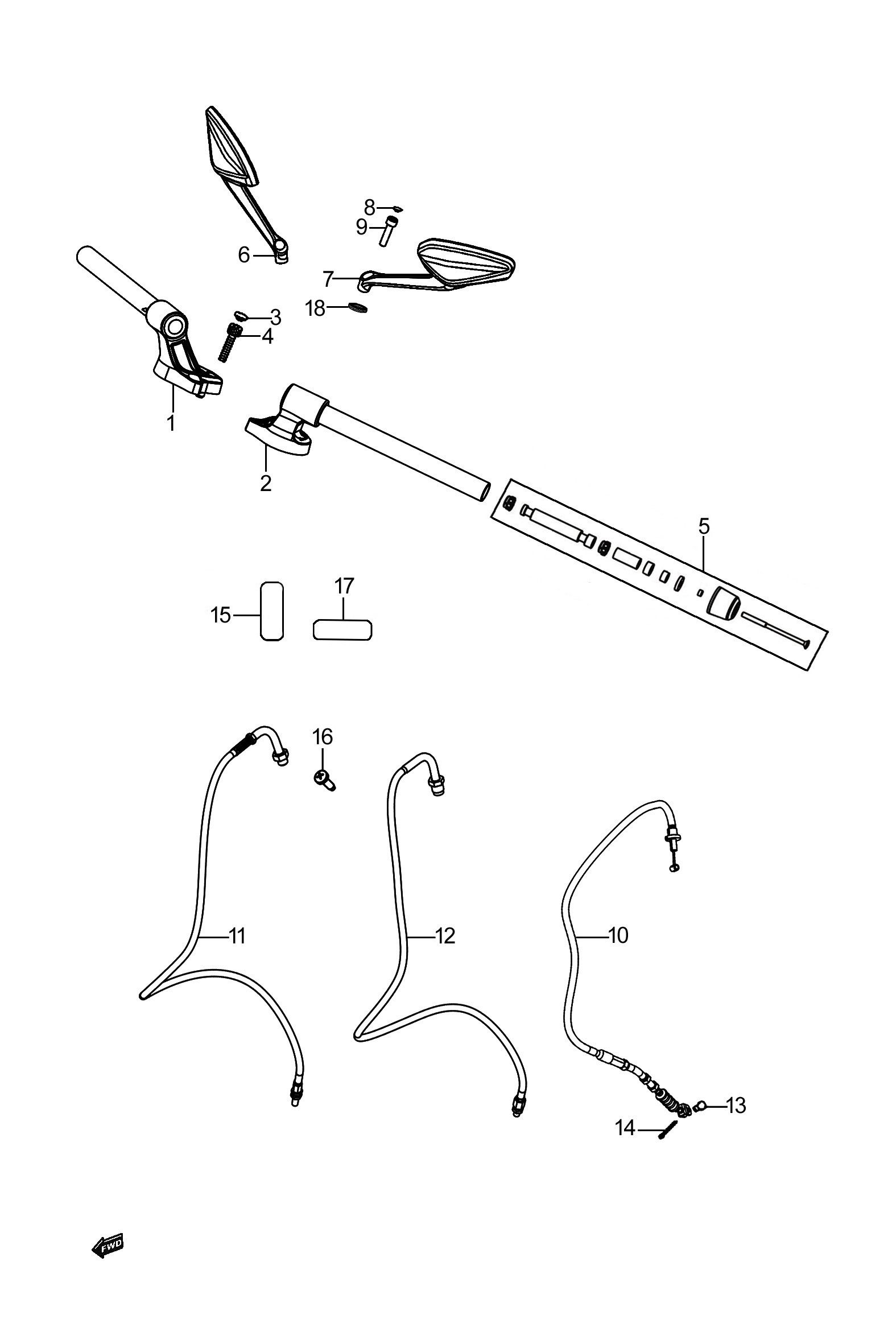

Location in exploded diagrams
Other parts on this diagram — 车把管组
- #1 56110H2H000H000 — 右车把管组成
- #2 56150H2H000H000 — 左车把管组成
- #3 09250-06004-000 — 塞
- #4 07130-0825A-000 — 内六角螺栓
- #7 56600H2H001H000 — 左后视镜总成
- #8 09250H06001H000 — 盖
- #9 09106H08009H000 — 内六角螺栓
- #10 58200H2H001H000 — 离合器拉索总成
- #11 58310H2H000H000 — 油门拉索总成Ⅰ
- #12 58320H2H000H000 — 油门拉索总成Ⅱ
- #13 09200-06071-000 — 带孔销
- #14 04111-2015A-000 — 开口销
- #16 02142-0510B-000 — 十字槽小螺钉
- #15 58521H2H001H000 — 拉索贴条
- #17 58521H2H011H000 — 拉索贴条
- #5 56270H2HY00H000 — 车把平衡器组合
- #6 56500H2H001H000 — 右后视镜总成
