Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

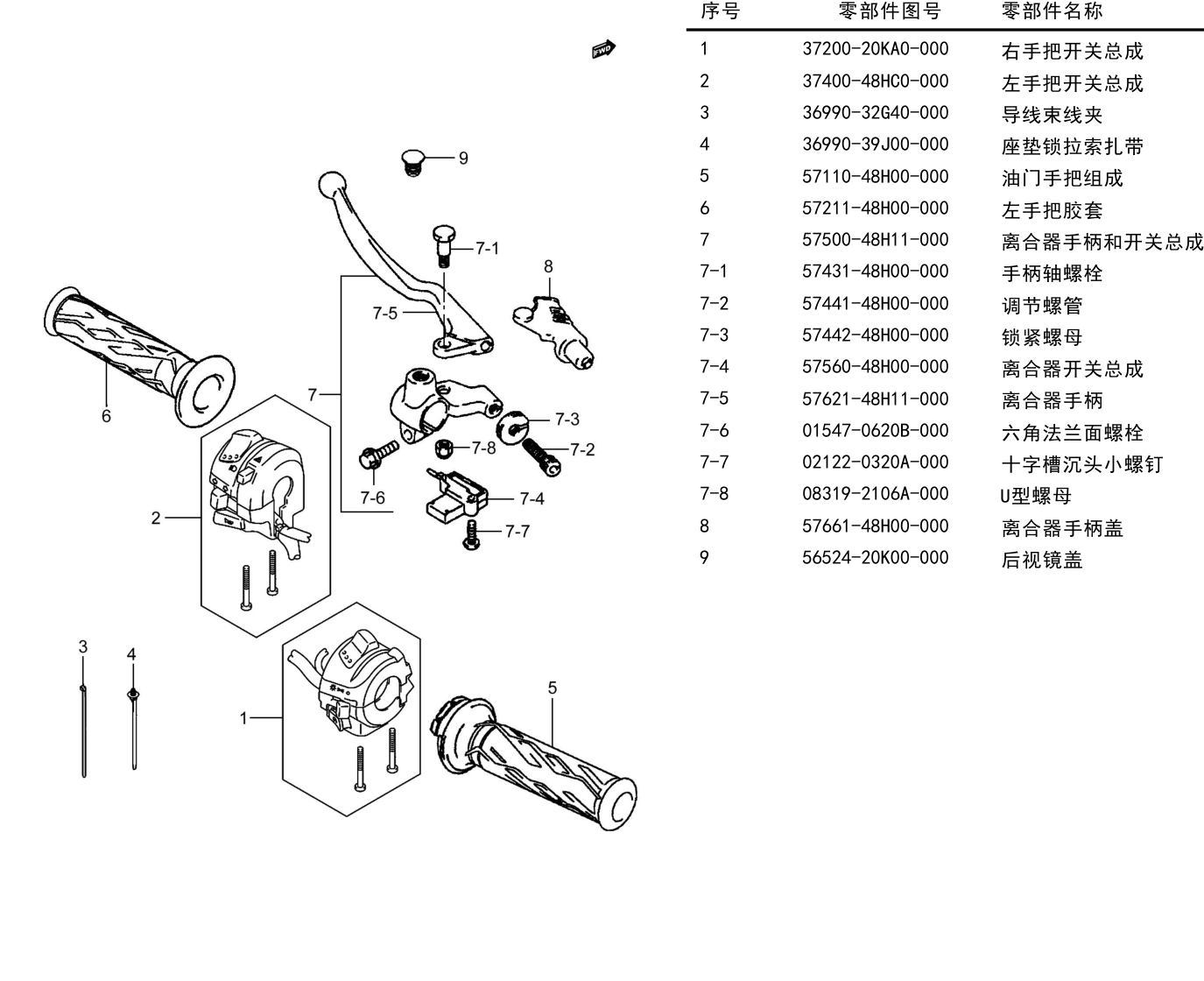

Location in exploded diagrams
Other parts on this diagram — 手把开关组
- #1 37200-20KA0-000 — 右手把开关总成
- #2 37400-48HC0-000 — 左手把开关总成
- #3 36990-32G40-000 — 导线束线夹
- #4 36990-39J00-000 — 座垫锁拉索扎带
- #5 57110-48H00-000 — 油门手把组成
- #6 57211-48H00-000 — 左手把胶套
- #7 57500-48H11-000 — 离合器手柄和开关总成
- #7-1 57431-48H00-000 — 手柄轴螺栓
- #7-2 57441-48H00-000 — 调节螺管
- #7-3 57442-48H00-000 — 锁紧螺母
- #7-4 57560-48H00-000 — 离合器开关总成
- #7-5 57621-48H11-000 — 离合器手柄
- #7-6 01547-0620B-000 — 六角法兰面螺栓
- #7-7 02122-0320A-000 — 十字槽沉头小螺钉
- #7-8 08319-2106A-000 — U型螺母
- #8 57661-48H00-000 — 离合器手柄盖
