Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)
Location in exploded diagrams

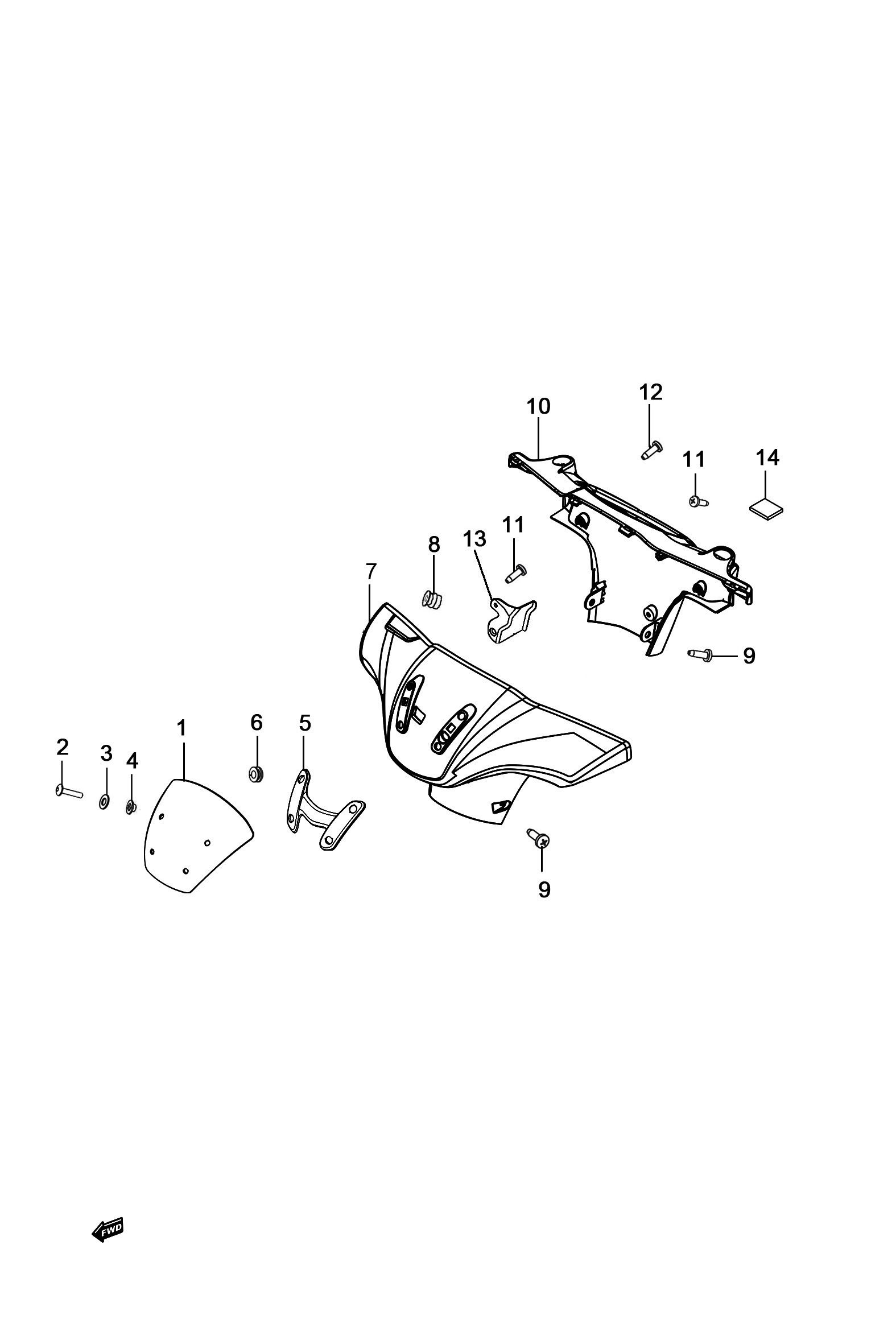

Other parts on this diagram — 手把前罩组
- #1 94611H7U000H000 — 挡风玻璃
- #2 09139H05004H000 — 特殊形状螺钉
- #3 09160H05007H000 — 平垫圈
- #4 94612-36H00-000 — 挡风玻璃减震垫
- #5 94613H7U000H849 — 挡风玻璃支架(哑光金属灰)
- #6 09320H07002H000 — 减震垫
- #7 56311H7U001H901 — 手把前罩(珍珠白)
- #7 56311H7U001H827 — 手把前罩(月光银)
- #7 56311H7U001H609 — 手把前罩(浅青蓝)
- #7 56311H7U001H706 — 手把前罩(玫瑰金)
- #8 09159H05002H000 — 特殊形状螺母
- #9 02142-0512B-000 — 十字槽小螺钉
- #10 56321H7U002H609 — 仪表罩(浅青蓝)
- #11 03541-0516A-000 — 十字槽球头自攻钉
- #12 03541-0416B-000 — 十字槽自攻螺钉
- #14 44256H22500H000 — 隔垫
- #10 56321H7U002H901 — 仪表罩(珍珠白)
- #10 56321H7U002H827 — 仪表罩(月光银)
- #13 35175H7U000H000 — 挡水板
