Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

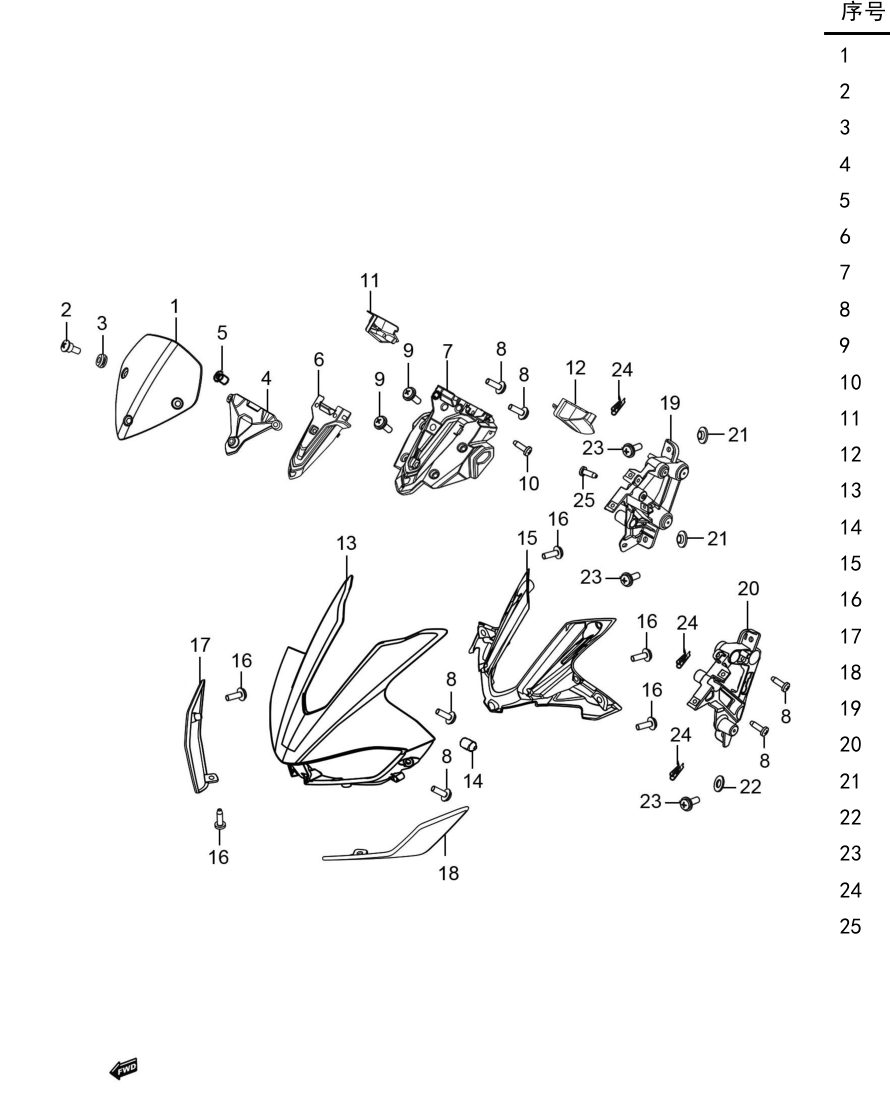

Location in exploded diagrams
Other parts on this diagram — 导流罩组
- #1 94611H2K000H000 — 挡风玻璃
- #2 09139H06026H000 — 特殊形状螺钉
- #3 09320-09016-000 — 减震垫
- #4 94613H2K000H802 — 挡风玻璃支架(哑光亮银)
- #5 09159H06002H000 — 特殊形状螺母
- #6 56323H2K000H802 — 仪表罩装饰盖(哑光亮银)
- #8 35151-21J00-000 — 前照灯螺钉
- #9 09139H06001H000 — 特形螺钉
- #10 03541-0516B-000 — 十字槽自攻螺钉
- #11 56324H2K000H000 — 仪表罩右装饰盖
- #12 56325H2K000H000 — 仪表罩左装饰盖
- #13 94411H2K000H511 — 导流罩体(哑光黑)
- #14 51827H2A101H000 — 前照灯罩支架减震垫
- #15 94414H2K000H000 — 导流罩装饰盖
- #16 92125-33GC0-000 — 前货箱盖内衬板安装螺钉
- #17 94417H2K000H511 — 前照灯右装饰盖(哑光黑)
- #18 94427H2K000H511 — 前照灯左装饰盖(哑光黑)
- #19 51530H2K000H000 — 前照灯右支架组成
- #20 51540H2K000H000 — 前照灯左支架组成
- #21 09180H06050H000 — 衬套
- #22 09160-06039-000 — 金属平垫圈
- #23 09139-06028-000 — 螺钉
- #24 35157H22501H000 — 螺母夹
- #25 09116-06111-000 — 平垫螺栓组合
