Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)

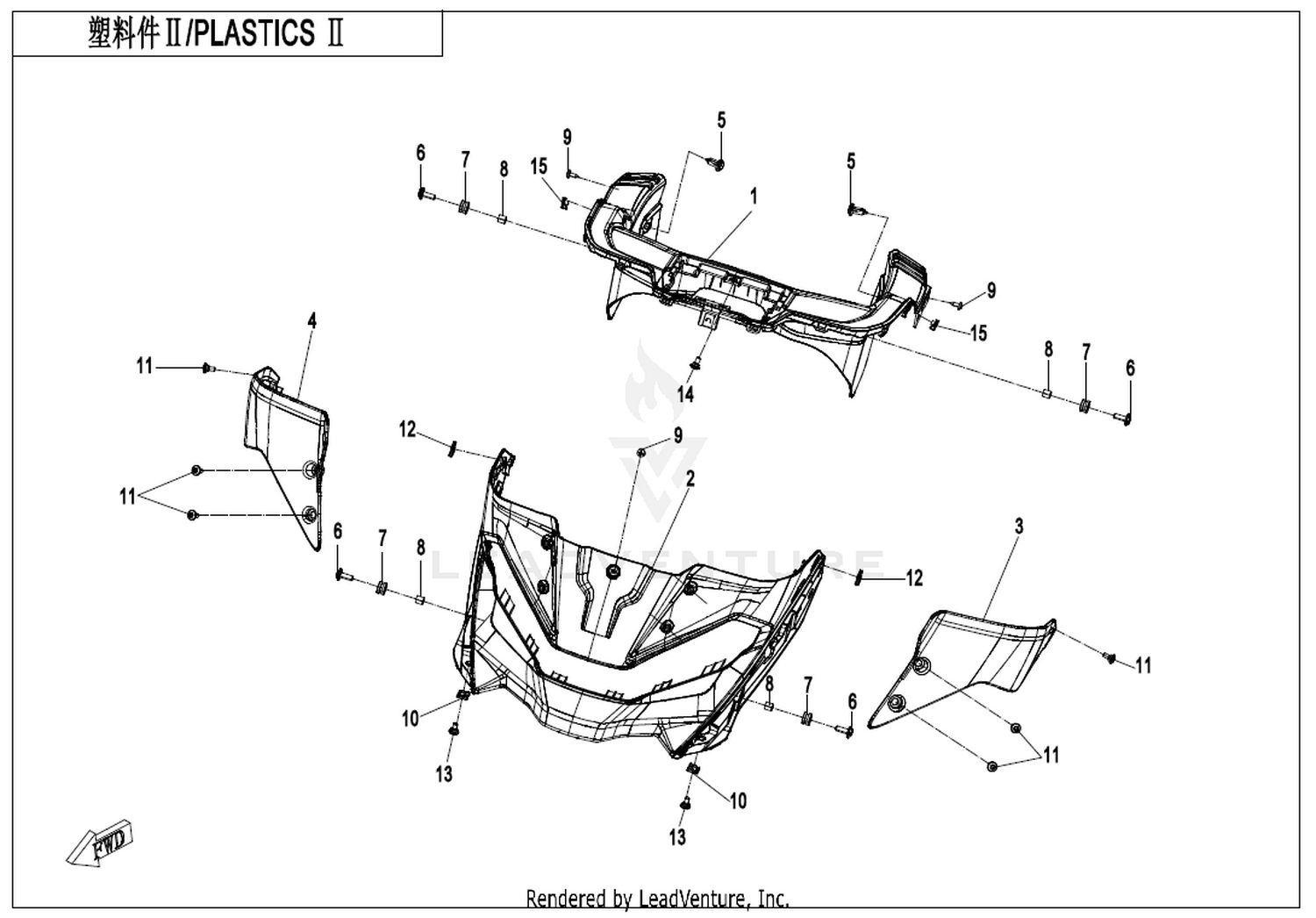

Location in exploded diagrams

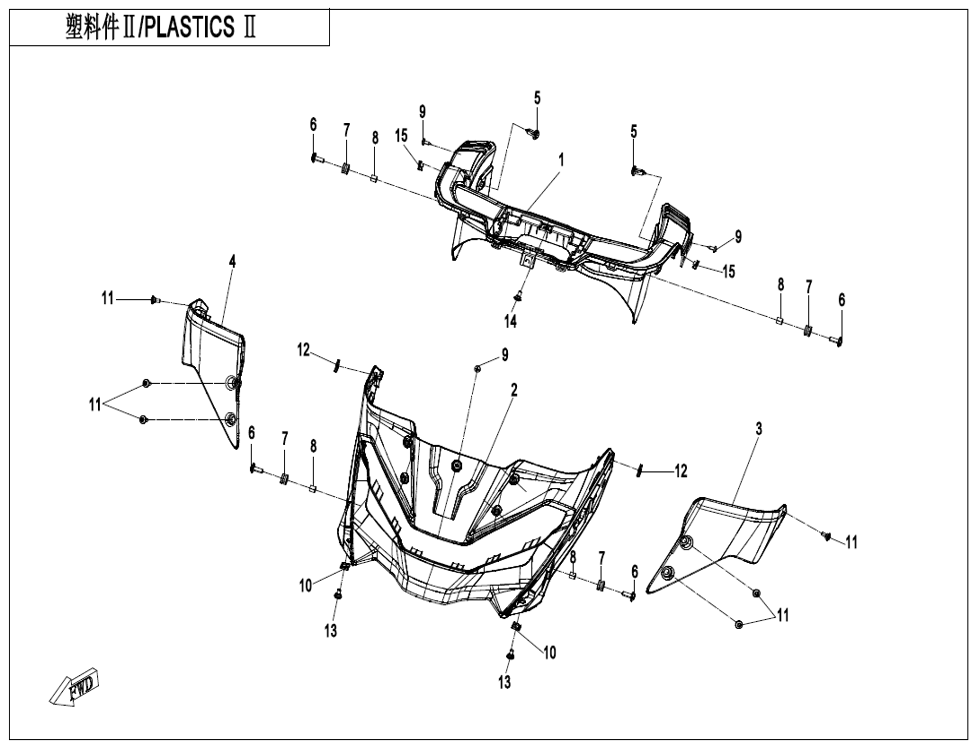

Other parts on this diagram — 2 Plastics 2
- #03 6WWV-040201-8000-10 — Side Fairing
- #07 30110-421130010 — Self-Tapping Screw St4.2X13@Color Zinc Trivalent Chromium
- #09 6WWV-046802-5000 — Inner Hex Screw M6X16
- #06 6090-040303 — Bushing
- #20 6KM#-040302-8000 — Cushion Sleeve
- #06 6KM#-040081-8000-M1 — Nut Clip M5
- #04 6WWV-040301-8000-10 — Rh Deflector
- #11 6WWV-047102-5000 — Inner Hex Screw M5X14
- #15 9060-040310 — Clamp Assy
- #14 K-54603048600 — Range Change Metal Nut M5 Inox
- #11 6AQV-043003-6000 — Screw Kit M5
- #19 8010-000002 — Clamp St4.2
- #01 6WWV-040401-8001 — Dashboard Cover Plate
- #02 6WWV-040601-8002-0D500 — Headlight Cover Gem Black
