Verified fitment — 4 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

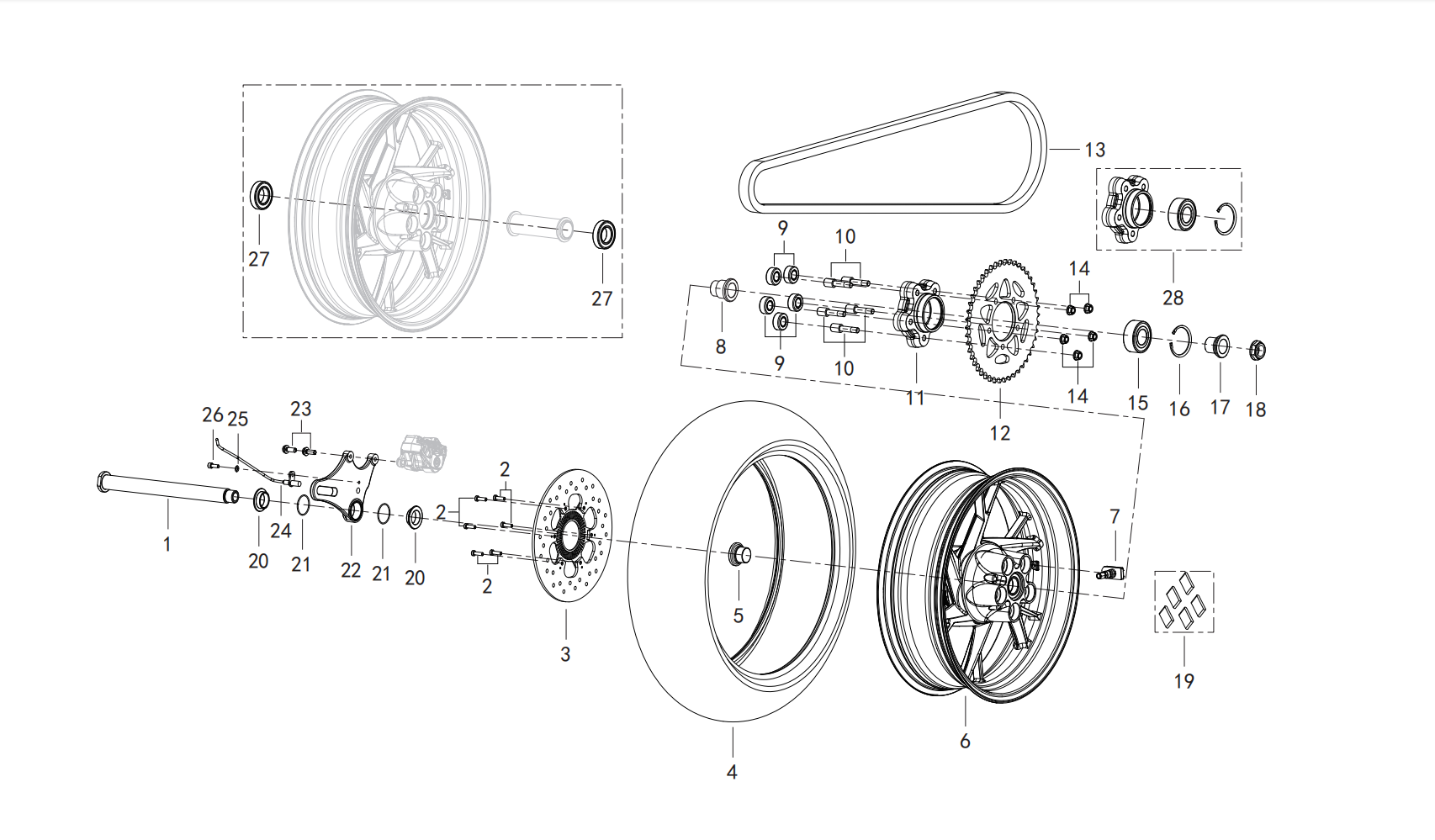

Other parts on this diagram — 后轮总成 REAR WHEEL ASSY.
- #1 54004P250010 — 后轮轴
- #2 08013P06000J — 螺钉M6×20
- #3 55030P160000 — 后制动盘组件
- #4 B140113B1720 — 真空胎180/55 ZR17
- #5 54005P250003 — 后轮右隔套
- #5 54005P290001 — 后轮右隔套
- #6 54100PAK001Z — 后轮组件(2023年9月份前， 54100P25002Z；2023年9月份后，改轻量化 54100PAK001Z)
- #6 54100PAK000Z — 后轮圈组件
- #7 95950P730000 — 胎压传感器
- #9 54622S010000 — 后轮缓冲套
- #9 54024P380000 — 后轮缓冲块
- #10 60015P250200 — 链轮固定螺栓M10×1.25×41
- #10 08011P56000J — 螺栓M10×1.25×30
- #11 60001P250000 — 链轮毂
- #11 60001P380000 — 链轮毂
- #12 60002P250000 — 链轮
- #12 60002P780000 — 链轮
- #13 60310P410010 — 链条525V11×118
- #14 B04821012552 — 自锁螺母M10×1.25
- #15 54553S010000 — 轴承30×62×23.8
- #16 B08810006200 — 挡圈Φ62
- #17 54016S010000 — 链轮轴套
- #18 54019P300010 — 自锁螺母M24×1.5
- #19 44091P290000 — 5克动平衡块
