Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (2)
Location in exploded diagrams

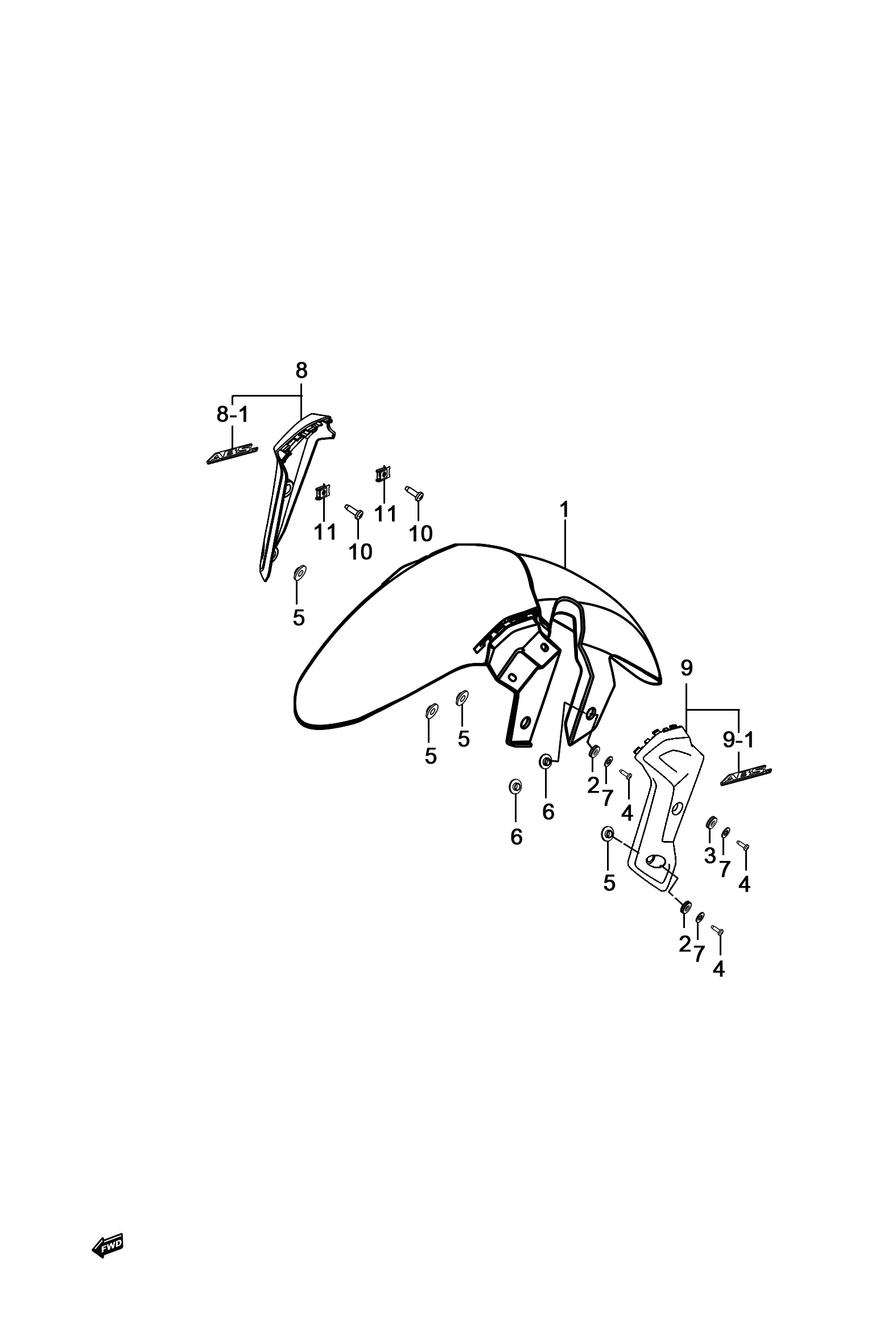

Other parts on this diagram — 前挡泥板组
- #2 09320-09016-000 — 减震垫
- #3 09320H09006H000 — 减震垫
- #4 09139-06029-000 — 特形螺钉
- #5 09180H06022H000 — 衬套
- #6 09180H06029H000 — 衬套
- #7 09160-06164-000 — 金属平垫圈
- #8 53011H2H000HF01 — 前挡泥板右装饰盖组合(星光黑)
- #8 53011H2H000HF02 — 前挡泥板右装饰盖组合(炫闪灰)
- #8-1 68151H2H000HWHI — ABS标牌
- #9 53021H2H000HF01 — 前挡泥板左装饰盖组合(星光黑)
- #9 53021H2H000HF02 — 前挡泥板左装饰盖组合(炫闪灰)
- #10 03241-0512A-000 — 十字槽球头自攻钉
- #11 09148-05077-000 — 锁片螺母
