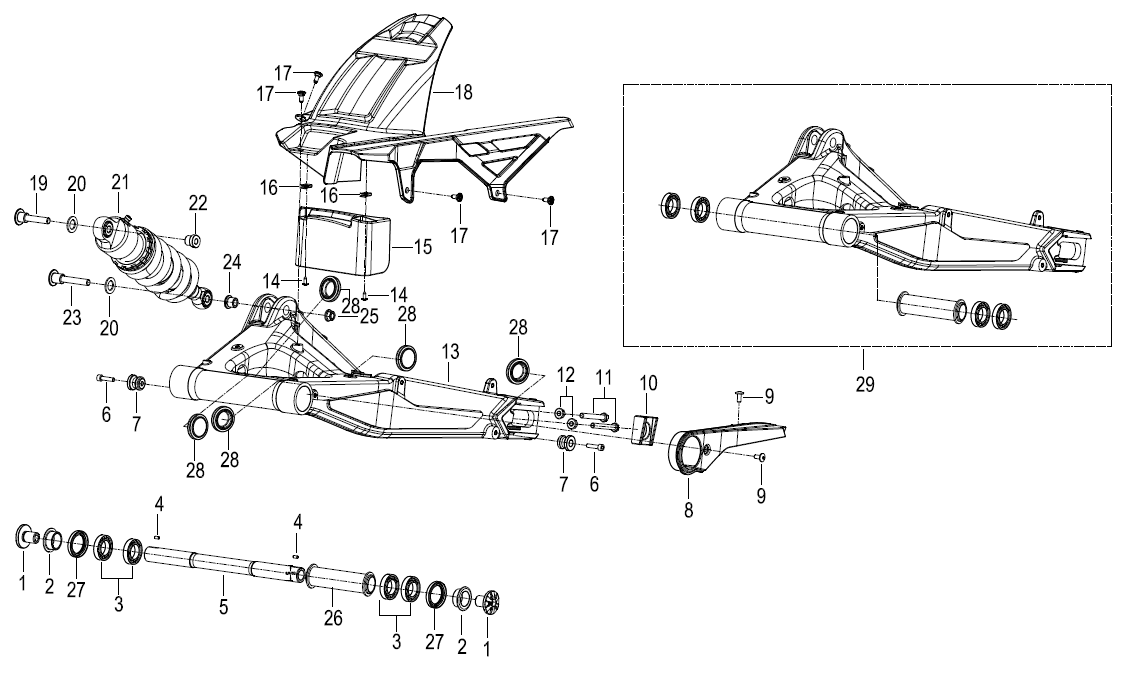

Other parts on this diagram — 后摆臂总成 REAR SWINGING ARM ASSY.
- #1 08013S010300 — 螺钉M18×1.5×24
- #2 53220S010000 — 后摆臂密封圈
- #3 53013P300010 — 后摆臂安装衬套
- #4 B12016190500 — 滚动轴承61905-2RS
- #5 B091404010B0 — 销
- #6 53001P300100 — 后摆臂安装轴
- #6 53001P300001 — 后摆臂安装轴
- #7 53005P250010 — 中间隔套
- #7 53005P250001 — 中间隔套
- #8 53017P410000 — 后摆臂堵头
- #9 53101P410000 — 后摆臂
- #10 B0226060256S — 内六角花形圆柱头螺钉M6×25
- #11 53021P250000 — 支撑套
- #13 08003P620100 — 内六角花形法兰面台阶螺钉M6×15
- #14 60151P410000 — 左链条调节块
- #15 08002P410000 — 链条调节螺钉
- #16 B0407080005H — 螺母M8
- #17 60151P290000 — 左链条调节块
- #18 60101P410010 — 链罩
- #19 08002P620103 — 内六角花形法兰面螺钉M6×20
- #20 57012P930000 — 不锈钢线夹
- #21 65624P160000 — 卡螺母M5
- #22 60102P410000 — 链罩挡泥板
- #23 08001P620100 — 内六角花形法兰面螺钉M5×12
