Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

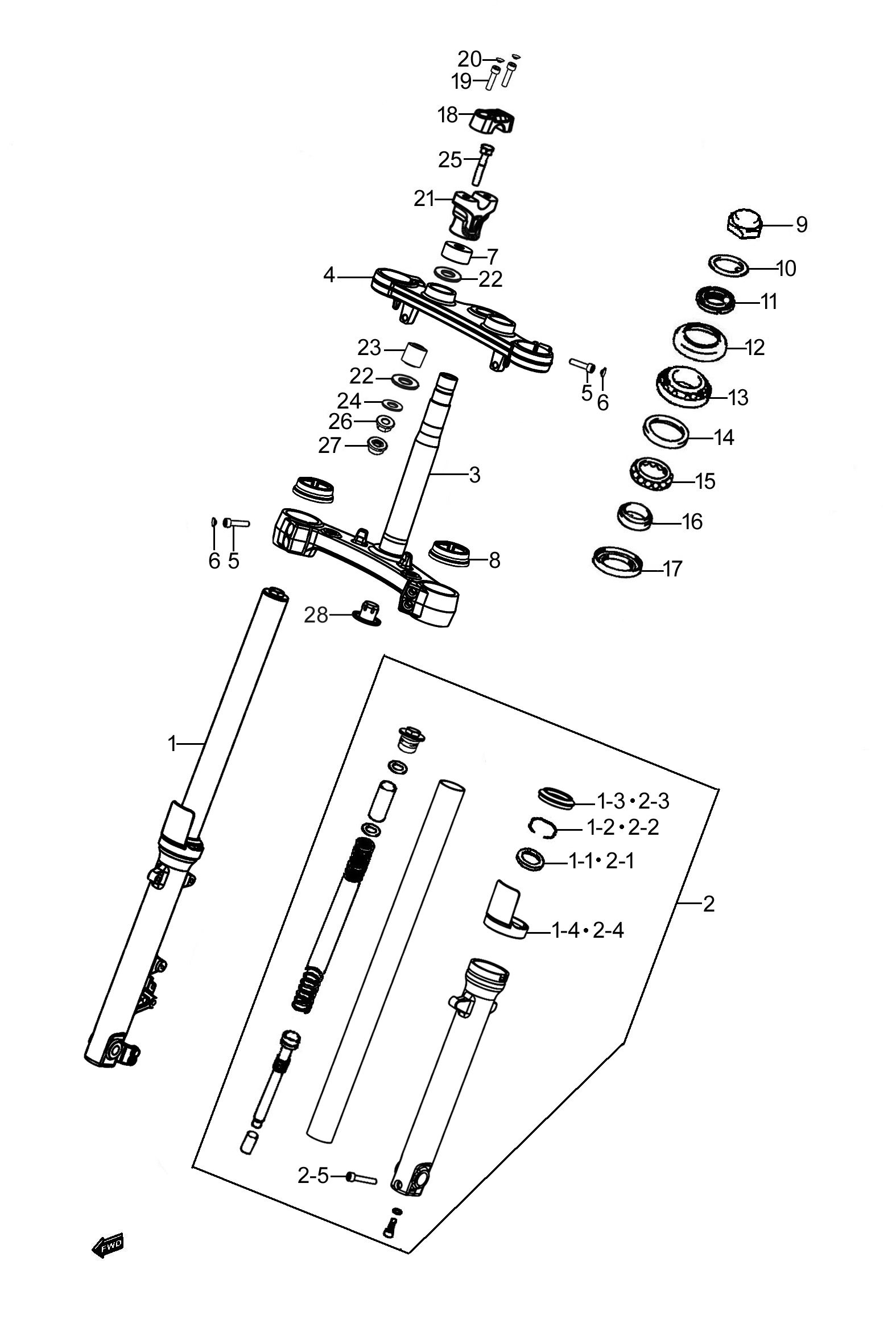

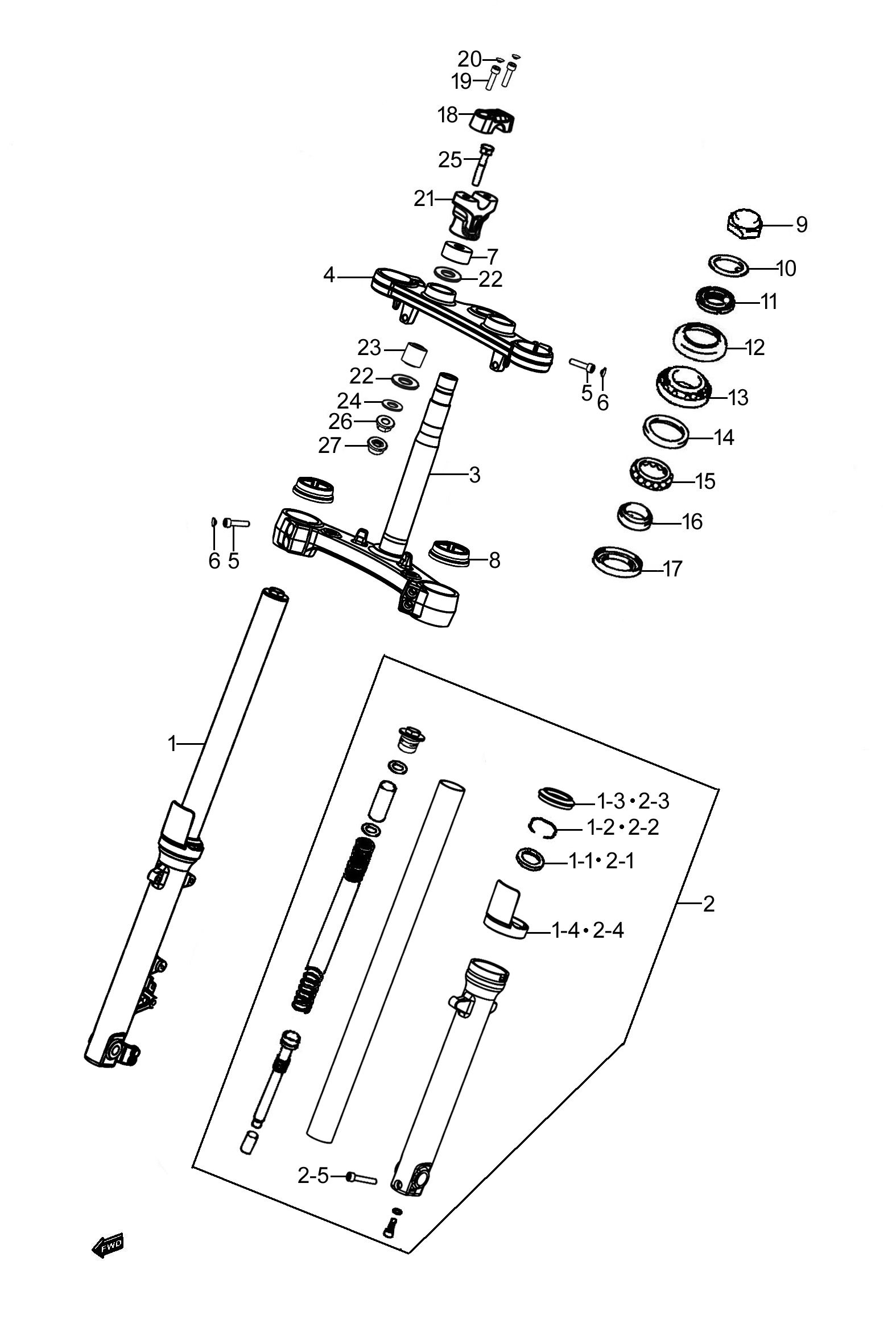

Location in exploded diagrams
Other parts on this diagram — 前叉组
- #1 51103H3A001H000 — 前右减震器总成
- #1-1 51153H3A000H000 — 油封
- #1-3 51173H3A000H000 — 防尘盖
- #1-4 51175H3A000H000 — 防尘罩
- #2 51104H3A001H000 — 前左减震器总成
- #2-5 51328H2J000H000 — 底筒螺栓
- #3 51410H3A000H000 — 下联板组成
- #4 51311H3A000H000 — 上联板
- #5 51166-48H10-000 — 上联板螺栓
- #6 09250H06001H000 — 盖
- #7 51313H3A000H000 — 衬套
- #8 51515H3A000H000 — 前叉上罩
- #9 51353-48H00-000 — 转向柱紧固螺母
- #10 09160H22002H000 — 金属平垫圈
- #11 51631-48H00-000 — 转向柱螺母
- #12 51643-49002-000 — 转向柱挡灰罩
- #13 09267-25L01-000 — 止推球轴承
- #14 51612-48H00-000 — 下转向轴承内座圈
- #15 51613-48H00-000 — 转向柱轴承滚珠
- #16 51622-48H00-000 — 转向轴承下外座圈
- #17 51644-48H01-000 — 转向柱下密封圈
- #18 56211H2K000H000 — 车把上夹架
- #19 07130-08307-000 — 内六角螺栓
- #20 09250H06008H000 — 螺栓帽
