Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

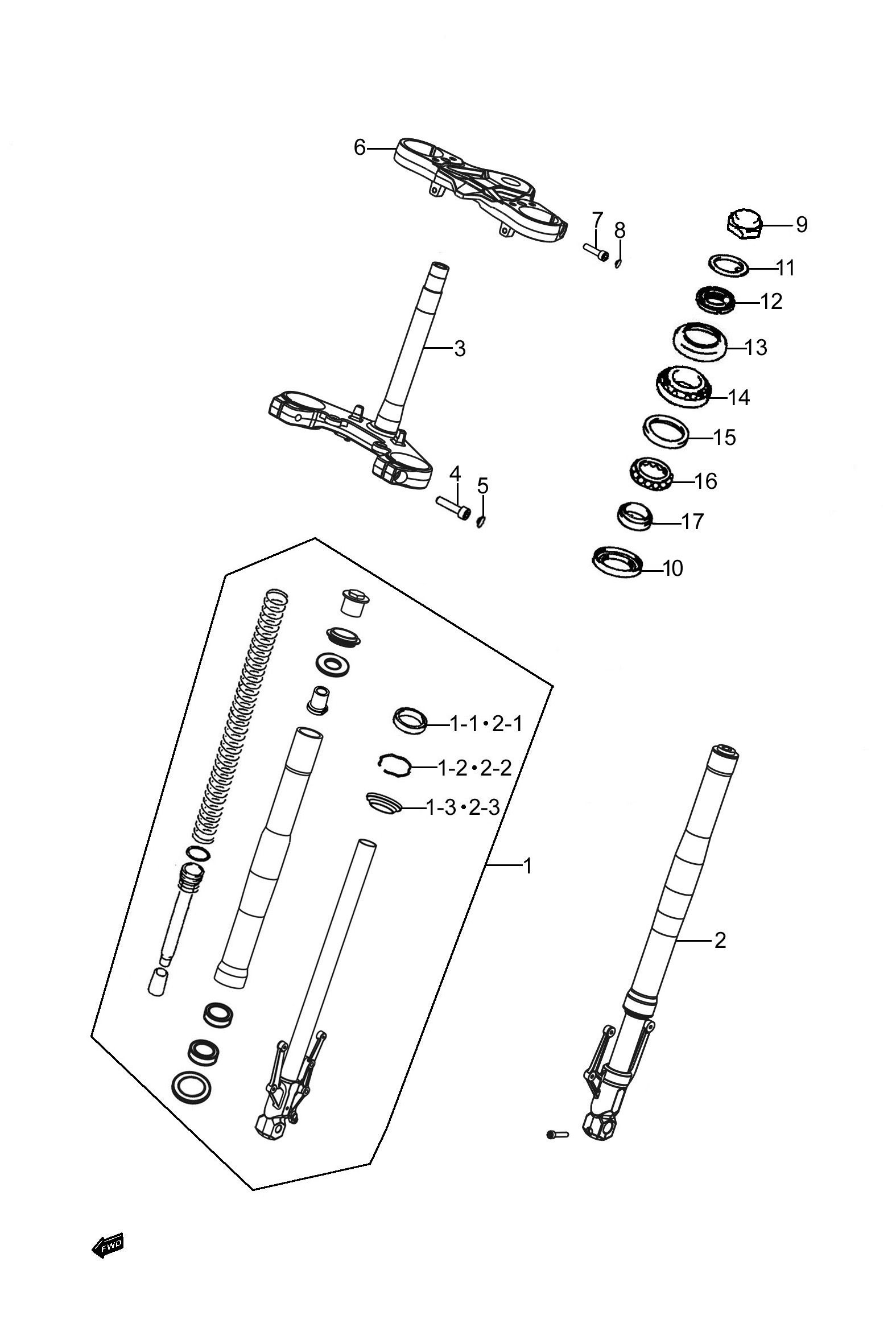

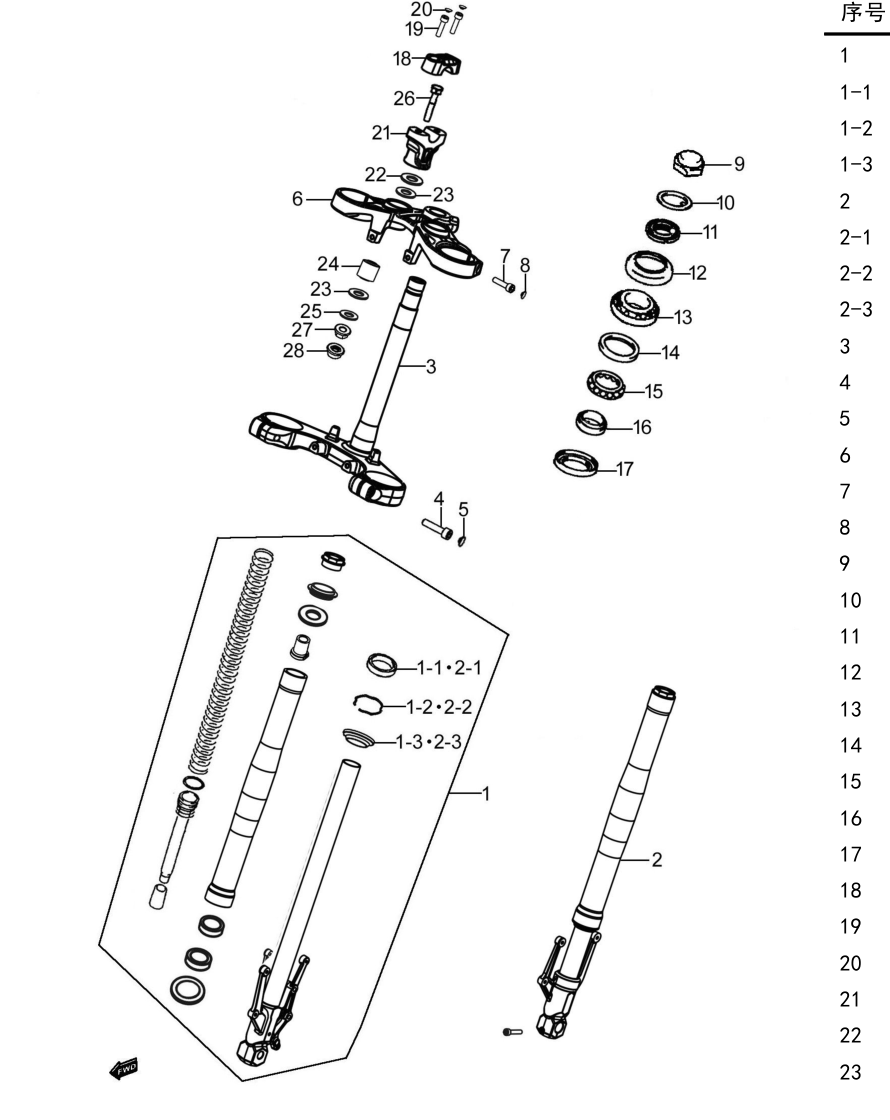

Location in exploded diagrams
Other parts on this diagram — 前叉组
- #1 51103H2H002H000 — 前右减震器总成
- #1-2 51156H2J000H000 — 油封挡圈
- #1-3 51173H2J001H000 — 防尘盖
- #2 51104H2H002H000 — 前左减震器总成
- #3 51410H2H001H000 — 下联板组成
- #4 07130-10357-000 — 内六角螺栓
- #5 41498-48H00-000 — 扣形塞
- #6 51311H2H001H000 — 上联板
- #7 51166-48H10-000 — 上联板螺栓
- #8 09250H06001H000 — 盖
- #9 51353-48H00-000 — 转向柱紧固螺母
- #10 51644-48H01-000 — 转向柱下密封圈
- #11 51356H2J000H000 — 转向柱垫圈
- #12 51631-48H00-000 — 转向柱螺母
- #13 51643H40100H000 — 转向柱上防尘罩
- #14 09267-25L01-000 — 止推球轴承
- #15 51612-48H00-000 — 下转向轴承内座圈
- #16 51613-48H00-000 — 转向柱轴承滚珠
- #17 51622-48H00-000 — 转向轴承下外座圈
