51103C34JA0W000DAMPER ASSY, FRONT FORK RH — Genuine HAOJUE Part
HAOJUEoem
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)
Location in exploded diagrams

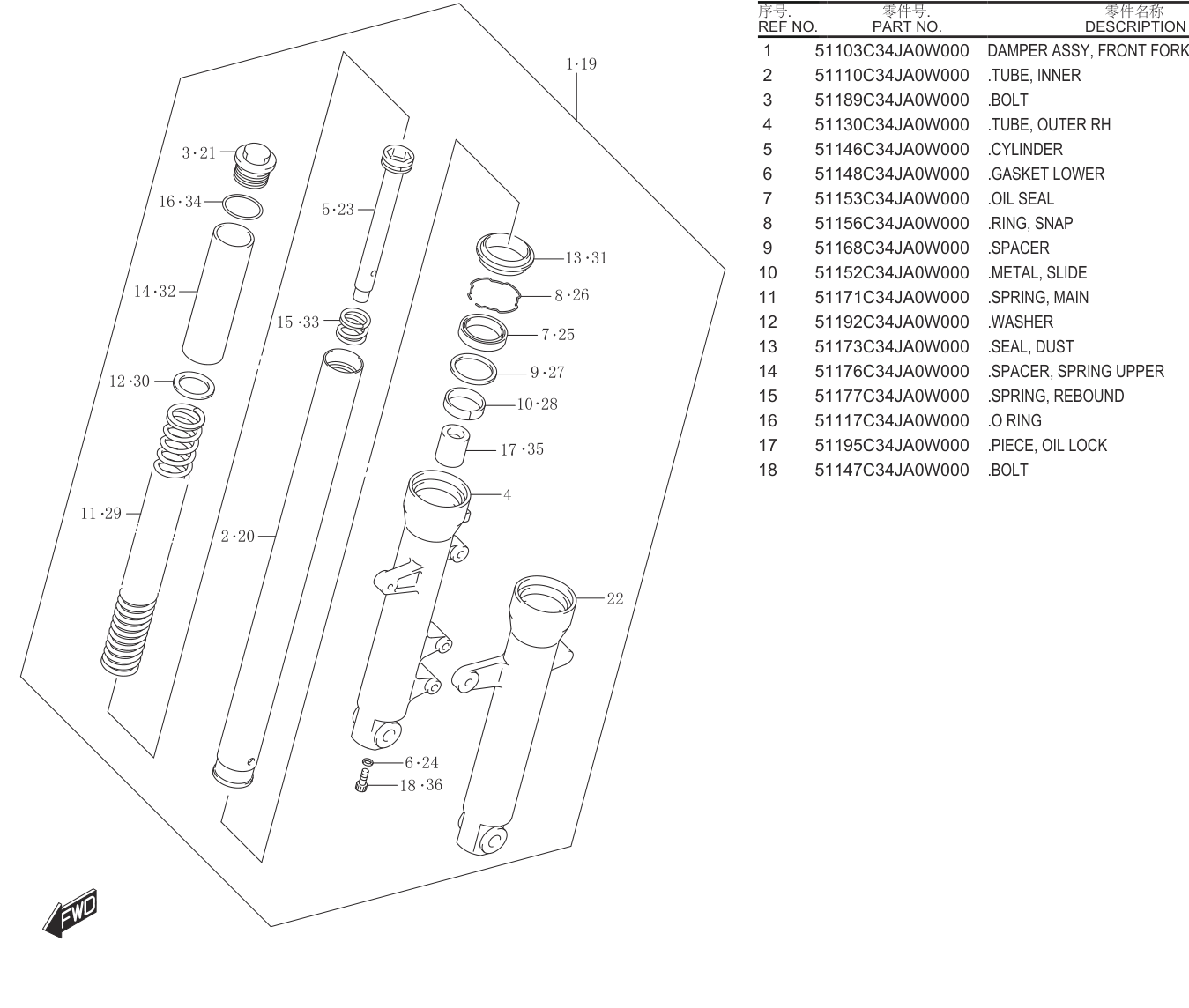

Other parts on this diagram — FRONT FORK DAMPER............. 63
- #2 51110C34JA0W000 — .TUBE, INNER
- #3 51189C34JA0W000 — .BOLT
- #4 51130C34JA0W000 — .TUBE, OUTER RH
- #5 51146C34JA0W000 — .CYLINDER
- #6 51148C34JA0W000 — .GASKET LOWER
- #7 51153C34JA0W000 — .OIL SEAL
- #8 51156C34JA0W000 — .RING, SNAP
- #9 51168C34JA0W000 — .SPACER
- #10 51152C34JA0W000 — .METAL, SLIDE
- #11 51171C34JA0W000 — .SPRING, MAIN
- #12 51192C34JA0W000 — .WASHER
- #13 51173C34JA0W000 — .SEAL, DUST
- #14 51176C34JA0W000 — .SPACER, SPRING UPPER
- #15 51177C34JA0W000 — .SPRING, REBOUND
- #16 51117C34JA0W000 — .O RING
- #17 51195C34JA0W000 — .PIECE, OIL LOCK
- #19 51104C34JA0W000 — DAMPER ASSY, FRONT FORK LH
- #22 51140C34JA0W000 — .TUBE, OUTER LH
- #18 51147C34JA0W000 — .BOLT
