51103C10K10W000DAMPER ASSY, FRONT FORK RH — Genuine HAOJUE Part

Verified fitment — 1 vehicle

Fitment is sourced from official parts catalogues, listed per catalogue market.

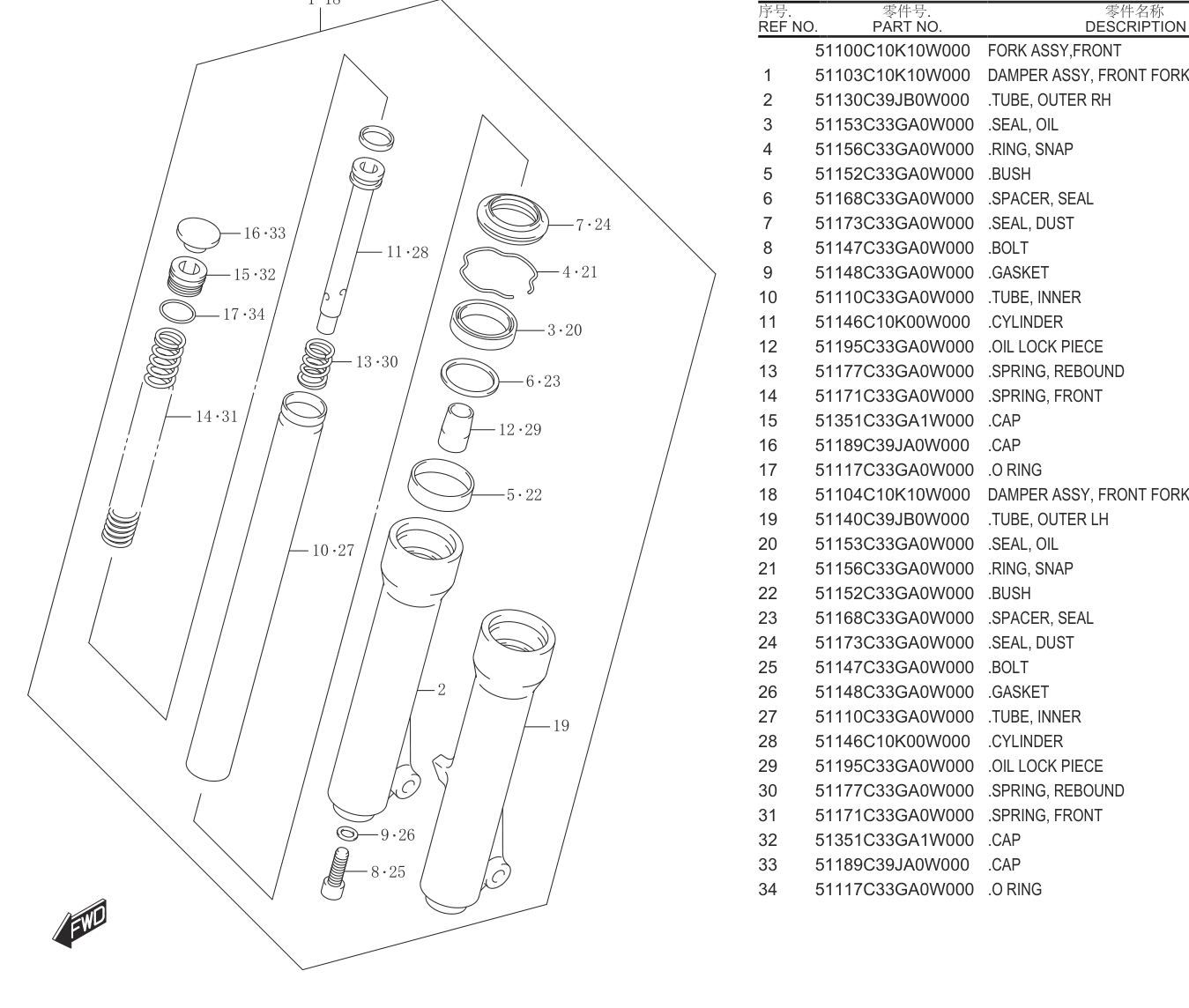

Location in exploded diagrams

Other parts on this diagram — 前减震

• #2 51130C39JB0W000 — .TUBE, OUTER RH 3 51153C33GA0W000 .SEAL, OIL 1 4 51156C33GA0W000 .RING, SNAP 1 5 51152C33GA0W000 .BUSH 1 6 51168C33GA0W000 .SPACER, SEAL 1 7 51173C33GA0W000 .SEAL, DUST 1 8 51147C33GA0W000 .BOLT 1 9 51148C33GA0W000 .GASKET 1 10 51110C33GA0W000 .TUBE, INNER 1
• #11 51146C10K00W000 — .CYLINDER 12 51195C33GA0W000 .OIL LOCK PIECE 1 13 51177C33GA0W000 .SPRING, REBOUND 1 14 51171C33GA0W000 .SPRING, FRONT 1 15 51351C33GA1W000 .CAP 1
• #16 51189C39JA0W000 — .CAP 17 51117C33GA0W000 .O RING 1
• #18 51104C10K10W000 — DAMPER ASSY, FRONT FORK LH
• #19 51140C39JB0W000 — .TUBE, OUTER LH 20 51153C33GA0W000 .SEAL, OIL 1 21 51156C33GA0W000 .RING, SNAP 1 22 51152C33GA0W000 .BUSH 1 23 51168C33GA0W000 .SPACER, SEAL 1 24 51173C33GA0W000 .SEAL, DUST 1 25 51147C33GA0W000 .BOLT 1 26 51148C33GA0W000 .GASKET 1 27 51110C33GA0W000 .TUBE, INNER 1
