50730ABW800SHero XPulse 200 ARM L PILLION STEP — Genuine Hero Part

Verified fitment — 1 vehicle

Fitment is sourced from official parts catalogues, listed per catalogue market.

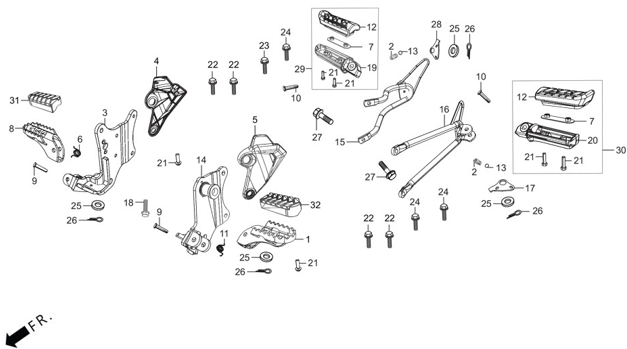

Location in exploded diagrams

Other parts on this diagram — F15 - Foot Pegs

• 50648ABW900S — Hero XPulse 200 FOOT PEG RUBBER LH. ASSY
• 50647ABW900S — Hero XPulse 200 FOOT PEG RUBBER RH. ASSY
• 5073AABW800S — Hero XPulse 200 ARM L PILLION STEP SUB. ASSY
• 5072AABW800S — Hero XPulse 200 ARM R PILLION STEP SUB. ASSY
• 50718ABWB00S — Hero XPulse 200 DETENT PLATE
• 958011006500S — Hero XPulse 200 BOLT FLANGE 10X65
• 9420120150S — Hero XPulse 200 PIN, SPLIT, 2.0 X 15
• 9410208000S — Hero XPulse 200 WASHER, PLAIN, 8MM
• 957010801807S — Hero XPulse 200 BOLT FLANGE 8 X 18
• 957010801400S — Hero XPulse 200 BOLT FLANGE 8X14
• 957010602200S — Hero XPulse 200 BOLT, FLANGE, SH. 6 X 22
• 90115MV9000S — Hero XPulse 200 BOLT, M. STEP RUB.SET
• 50720ABW800S — Hero XPulse 200 ARM R PILLION STEP
• 960010603000S — Hero XPulse 200 BOLT, FLANGE, SH., 6 X 30
• 50718AAS000S — Hero XPulse 200 DETENT PLATE BALL
• 50702ABW100S — Hero XPulse 200 HOLDER LH PILLION STEP
• 50701ABWB00S — Hero XPulse 200 HOLDER RH PILLION STEP
• 50700ABWL00S — Hero XPulse 200 HOLDER LEFT RIDER STEP
• 9621108000S — Hero XPulse 200 BALL STEEL 8 MM
• 50661KVE860S — Hero XPulse 200 RUBBER,STEP
• 50644AAS000S — Hero XPulse 200 SPG STEP RETURN L
• 50638ABW000S — Hero XPulse 200 PIN, FOOT PEG PILLION
• 50639ABW000S — Hero XPulse 200 PIN, FOOTPEG
• 5061AABWL00S — Hero XPulse 200 FOOTPEG ASSEMBLY RIGHT
