Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

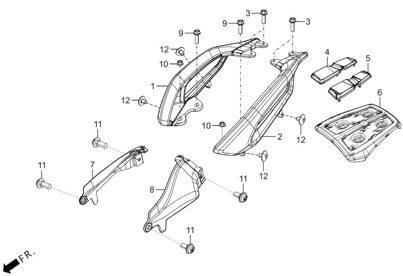

Other parts on this diagram — F25B - Rear Grip
- 90107ABWL00S — Hero XPulse 200 BOLT SPL 6X8
- 90101GE0000S — Hero XPulse 200 SCREW, HINGE PATCH
- 9405008000S — Hero XPulse 200 NUT, FLANGE, 8MM
- 957010802500S — Hero XPulse 200 BOLT, FLANGE 8 X 25
- 77220ABW000S — Hero XPulse 200 COVER GRIP L
- 77210ABW000S — Hero XPulse 200 COVER GRIP R
- 81300ABW000US — Hero XPulse 200 LUGGAGE CARRIER CENTER (IRON NAIL SILVER ME.)
- 81300ABW900S — Hero XPulse 200 LUGGAGE CARRIER CENTER
- 81302ABW000S — Hero XPulse 200 RUBBER GRIP REAR L
- 81301ABW000S — Hero XPulse 200 RUBBER GRIP REAR R
- 957010601400S — Hero XPulse 200 BOLT, FLANGE, 6 X 14
- 50450ABWL00CS — Hero XPulse 200 GRIP L REAR
- 50450ABWL00YS — Hero XPulse 200 GRIP L REAR
- 50400ABWL00YS — Hero XPulse 200 GRIP R REAR
