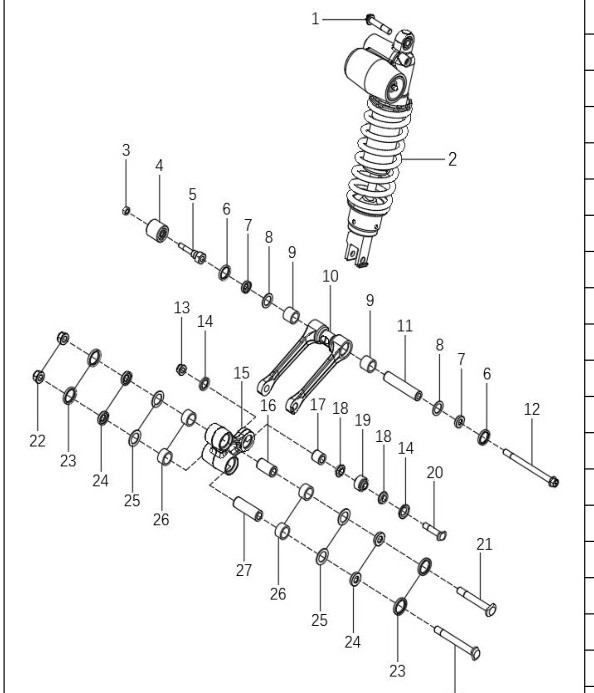

Location in exploded diagrams
Other parts on this diagram
- #1 5021-10052-DK00 — 内六花六角法兰面螺栓450Rally、M10*52,达克罗
- #2.1 371500-T500-00001 — 后减震器
- #2.2 371500-T501-00001 — 后减震器
- #2.3 371500-T500-00000 — 后减震器
- #2.4 371500-T501-00000 — 后减震器
- #3 5008-08085-SC00 — 六角法兰面自锁螺母M8*1.25*8.5*14
- #4 360800-T501-00000 — 导链轮总成
- #5 5007-10061-SC00 — 导链轮螺栓
- #6 5103-222804-001 — 油封
- #7 5013-10005-SC03 — 翻边衬套
- #8 5018-18116-BS00 — 平垫
- #9 5102-172420-BS0 — 滚针轴承
- #10 360008-T501-00001 — U型摇架
- #11 910016-T501-00001 — U型摇架轴
- #12 5001-10130-DK01 — 六角法兰面螺栓
- #13 5008-10115-SC01 — 六角法兰面自锁螺母M10*1.25*11.5*17,细牙;10级
- #14 5103-172603-001 — 油封
- #15 360007-T501-00000 — 三角摇架
- #16 910015-T501-00001 — 三角摇架轴套
- #17 910015-T501-00003 — 三角摇架轴
- #18 910017-T501-00001 — 翻边轴承
- #19 5102-192613-BS0 — 滚针轴承
- #20 5007-10045-DK00 — 扁头螺栓
- #21 5007-12085-DK00 — 扁头螺栓
