Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

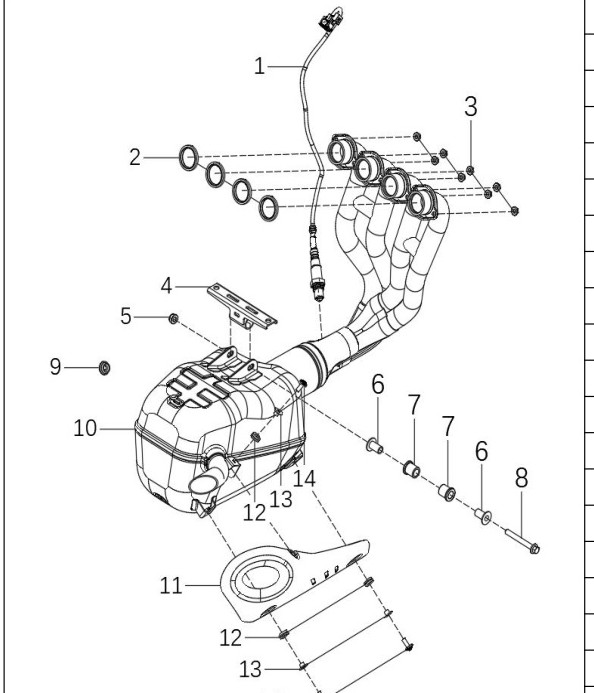

Location in exploded diagrams
Other parts on this diagram
- #1 310900-S100-00000 — 氧传感器
- #2 320001-T300-00000 — 消声器密封垫
- #3 5008-06060-SC00 — 六角法兰面螺母
- #4 360041-T300-E0100 — 消声器安装支架
- #5 5008-08085-SC00 — 六角法兰面自锁螺母M8*1.25*8.5*14
- #6 5013-08021-SC00 — 翻边衬套
- #7 420076-T300-00000 — 消声器缓冲胶套
- #8 5021-08065-XN00 — 内六花六角法兰面螺M8*65(16.5盘),表面处理锌镍合金
- #9 420037-R201-000 — 圆形蘑菇头胶圈
- #10 320900-T300-00001 — 消声器总成
- #11 390016-T300-00000 — 消声器护罩
- #12 420008-T300-00002 — 工字胶圈
- #14 5025-06016-BS00 — 内六角花形盘头螺钉M6*1*16,性能等级:GB/T3098.6-2014中A2
