5010NLM7000Sym CRUiSYM 300 E5 FRAME BODY COMP SET (BK-001C) — Genuine Sym Part

Verified fitment — 1 vehicle

Fitment is sourced from official parts catalogues, listed per catalogue market.

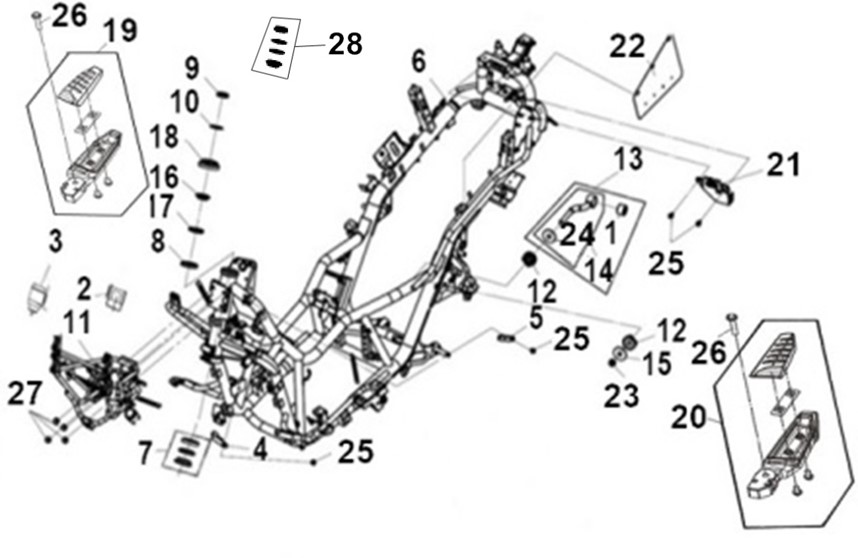

Location in exploded diagrams

Other parts on this diagram — FRAME BODY

• 50381L9W000 — Sym CRUiSYM 300 E5 TENSION ROD (frame body)
• 50308L5B000A — Sym CRUiSYM 300 E5 STRG. STEM WASHER SET
• 958010801807 — Sym CRUiSYM 300 E5 FLANGE BOLT 8*18
• 958010603507 — Sym CRUiSYM 300 E5 FLANGE BOLT
• 957010601208 — Sym CRUiSYM 300 E5 BOLT FLANGE 6X12
• 958010601208 — Sym CRUiSYM 300 E5 FLANGE BOLT 6X12
• 94103L2A000 — Sym CRUiSYM 300 E5 PLAIN WASHER 12MM
• 90304M9Q800 — Sym CRUiSYM 300 E5 FLANGE U NUT 10MM
• 80103HMA000 — Sym CRUiSYM 300 E5 L. SPLASH BOARD PLATE
• 77230LM1000 — Sym CRUiSYM 300 E5 SEAT CATCH ASSY
• 5071BL3A000IE — Sym CRUiSYM 300 E5 L. STEP BAR SET(GY-820)
• 5071AL3A000IE — Sym CRUiSYM 300 E5 R. STEP BAR SET(GY-820)
• 53220HMA000 — Sym CRUiSYM 300 E5 STEERING HEAD TOP THREAD COMP
• 53215HMA000M1 — Sym CRUiSYM 300 E5 STEEL BALL UP ASSY.
• 53215HMA000M2 — Sym CRUiSYM 300 E5 STEEL BALL UP ASSY.
• 53215HMA000 — Sym CRUiSYM 300 E5 STEEL BALL UP ASSY.
• 53211HMA000 — Sym CRUiSYM 300 E5 STRG. UP CONE RACE
• 50382L9W000 — Sym CRUiSYM 300 E5 STOP PLATE A
• 50380L9W000 — Sym CRUiSYM 300 E5 TENSION ROD ASSY.
• 50352L3A000 — Sym CRUiSYM 300 E5 STOPPER RUBBER
• 50315LM7000 — Sym CRUiSYM 300 E5 FR. COVER STAY
• 50308HMA000 — Sym CRUiSYM 300 E5 STRG STEM WASHER
• 50306196000 — Sym CRUiSYM 300 E5 STRG. STEM LOCK NUT
• 50306M9Q000XS — Sym CRUiSYM 300 E5 STRG. STEM LOCK NUT
