490078-P320-R0700挡风罩装饰件-右(KY350GS-2、R07中国红)>白/红/黑 — Genuine 凯越 Part
凯越oem
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

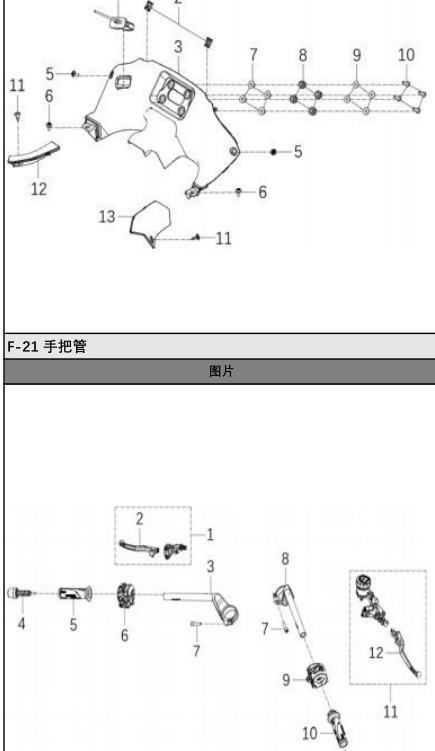

Location in exploded diagrams
Other parts on this diagram
- #7 5006-04013-HX00 — 自攻钉(ST4.2*13)
- #8 5025-05013-XN00 — 内六角花形盘头台阶螺钉(M5*13,台阶8*3.5)
- #9.1 390048-P320-G0800 — 挡风罩-左(KY350GS-2、G08标准凯越绿套R07中国红,贴花编码ZFP303)>红/绿/
- #9.2 390048-P320-W0100 — 挡风罩-左(KY350GS-2、W01珍珠白,贴花编码ZFP305)>白/红/黑
- #10 390088-P320-00000 — 挡风罩内衬-左(ZF350GS-2)
- #11 421000-R100-000 — 膨胀胶钉(500GY、长17.5,直径
- #1.1 490006-P320-R0700 — 定风翼-右(KY350GS-2、R07中国红)>红/绿/黑
- #1.2 490006-P320-W0100 — 定风翼-右(KY350GS-2、W01珍珠白,贴花编码ZFP305)>白/红/黑
- #2 5025-05013-BS00 — 内六角花形盘头台阶螺钉(M5*1*13;台阶
- #3 5018-08007-BS00 — 平垫(450Rally、
- #4.1 390049-P320-G0800 — 挡风罩-右(KY350GS-2、G08标准凯越绿套R07中国红,贴花编码ZFP303)>红/绿/
- #4.2 390049-P320-W0100 — 挡风罩-右(KY350GS-2、W01珍珠白,贴花编码ZFP305)>白/红/黑
- #6 5009-05070-DK00 — 螺纹夹板(M5*1.0*7*14)
- #7 5025-05016-XN01 — 内六角花形盘头台阶螺钉(M5*1*16,台阶∮8.5*5.5)
- #8 390089-P320-00000 — 挡风罩内衬-右(ZF350GS-2)
- #11.1 490078-P320-B1900 — 挡风罩装饰件-右(KY350GS-2、B19珍珠玛瑙黑)>红/绿/黑
- #1.1 390030-P320-B1900 — 油箱下护板-左(KY350GS-2、B19珍珠玛瑙黑,贴花编码ZFP303)>红/
