Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

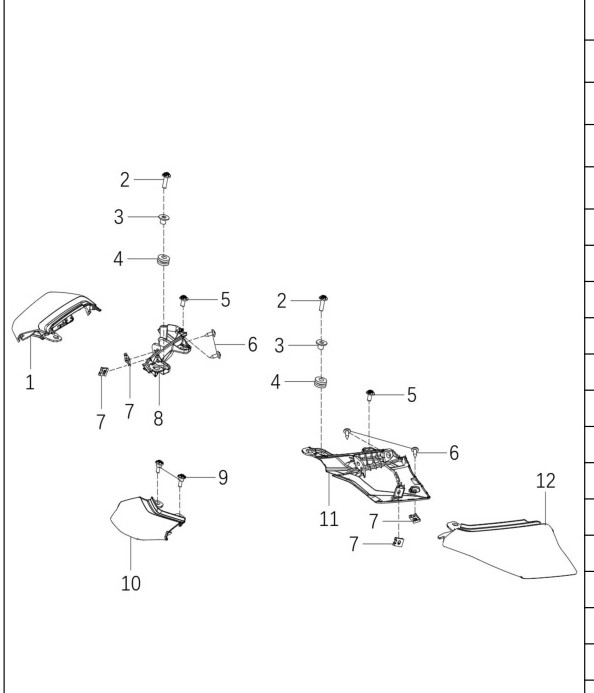

Location in exploded diagrams
Other parts on this diagram
- #1.1 490025-T300-B0700 — 尾灯装饰罩-左
- #1.2 490025-T300-B1400 — 尾灯装饰罩-左
- #1.3 490025-T300-H1700 — 尾灯装饰罩-左
- #1.4 490025-T300-R0800 — 尾灯装饰罩-左
- #2 5025-06020-BS01 — 内六角花形盘头螺钉M6*1*20,性能等级:GB/T3098.6-2014中A2
- #3 5013-06008-SC01 — 翻边衬套
- #4 420008-R100-000 — 工字胶圈
- #5 5025-06012-BS00 — 内六角花形盘头螺钉M6*1*12,性能等级:GB/T3098.6-2014中A2
- #6 5006-04015-HX00 — 自攻钉
- #7 5009-04040-DK00 — 自攻钉夹板
- #8 360083-T300-00000 — 尾灯支架-左
- #9 5025-05016-BS00 — 内六角花形盘头台阶M5*0.8*16;台阶∮8.5*5.5
- #10.1 390004-T300-B0700 — 后尾盖
- #10.2 390004-T300-B1400 — 后尾盖
- #10.3 390004-T300-H1700 — 后尾盖
- #10.4 390004-T300-R0800 — 后尾盖
- #11 360084-T300-00000 — 尾灯支架-右
- #12.1 490026-T300-B0700 — 尾灯装饰罩-右
- #12.2 490026-T300-B1400 — 尾灯装饰罩-右
- #12.3 490026-T300-H1700 — 尾灯装饰罩-右
