Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)
Location in exploded diagrams

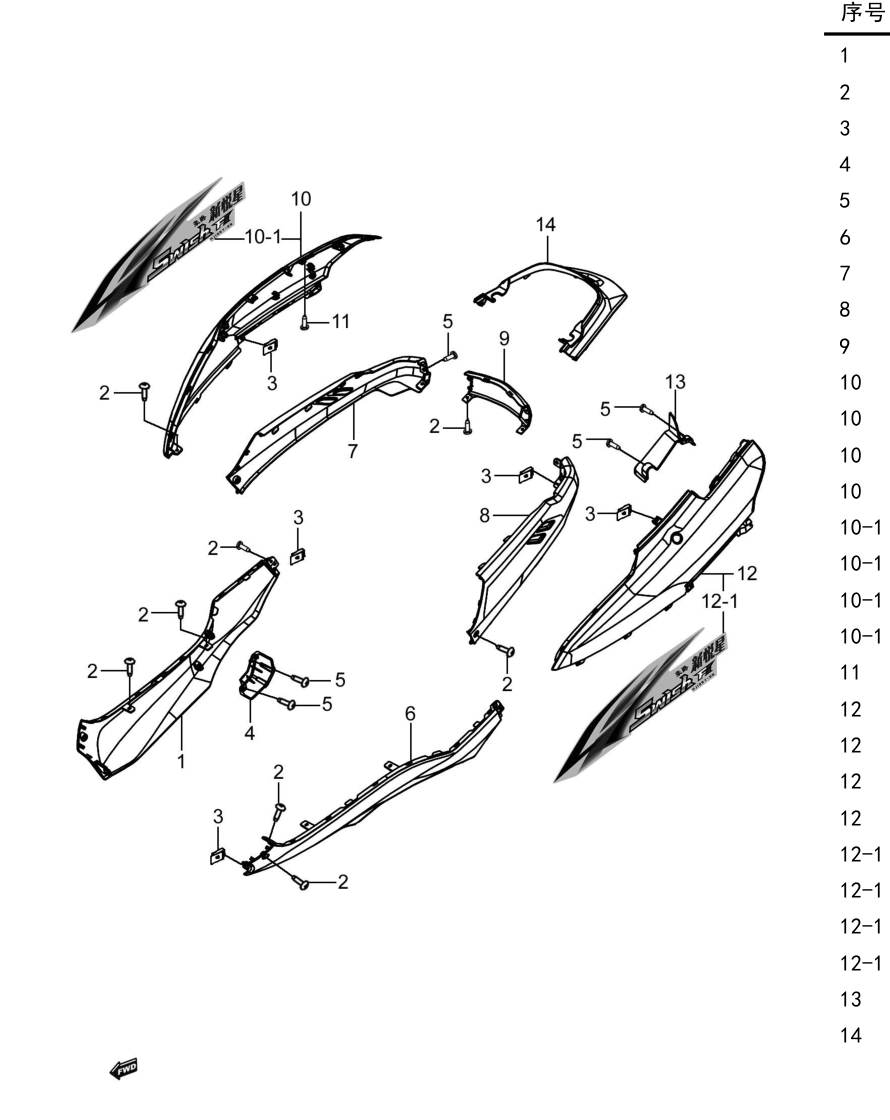

Other parts on this diagram — 车体盖组
- #2 03241-0516B-000 — 十字槽自攻螺钉
- #3 09148-05L08-000 — 锁片螺母
- #4 48172H7N000H000 — 边条挡板
- #10-1 68131H7N000HT51 — 右侧盖贴条
- #10-1 68131H7N000HT52 — 右侧盖贴条
- #10-1 68131H7N000HT53 — 右侧盖贴条
- #10-1 68131H7N000HT54 — 右侧盖贴条
- #11 03541-0412B-000 — 十字槽自攻螺钉
- #12 47021H7N000HF01 — 左侧盖组合(珍珠黑)
- #12 47021H7N000HF02 — 左侧盖组合(玫瑰红)
- #12 47021H7N000HF03 — 左侧盖组合(月光银)
- #12 47021H7N000HF04 — 左侧盖组合(珍珠白)
- #12-1 68141H7N000HT51 — 左侧盖贴条
- #12-1 68141H7N000HT52 — 左侧盖贴条
- #12-1 68141H7N000HT53 — 左侧盖贴条
- #12-1 68141H7N000HT54 — 左侧盖贴条
- #13 47214H7N001H000 — 座垫拉索防护盖
- #14 47311H7N000H000 — 尾盖
- #10 47011H7N000HF01 — 右侧盖组合(珍珠黑)
- #10 47011H7N000HF02 — 右侧盖组合(玫瑰红)
- #10 47011H7N000HF03 — 右侧盖组合(月光银)
- #10 47011H7N000HF04 — 右侧盖组合(珍珠白)
- #1 48171H7N000H000 — 前右边条
- #5 92125-33GC0-000 — 前货箱盖内衬板安装螺钉
