Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

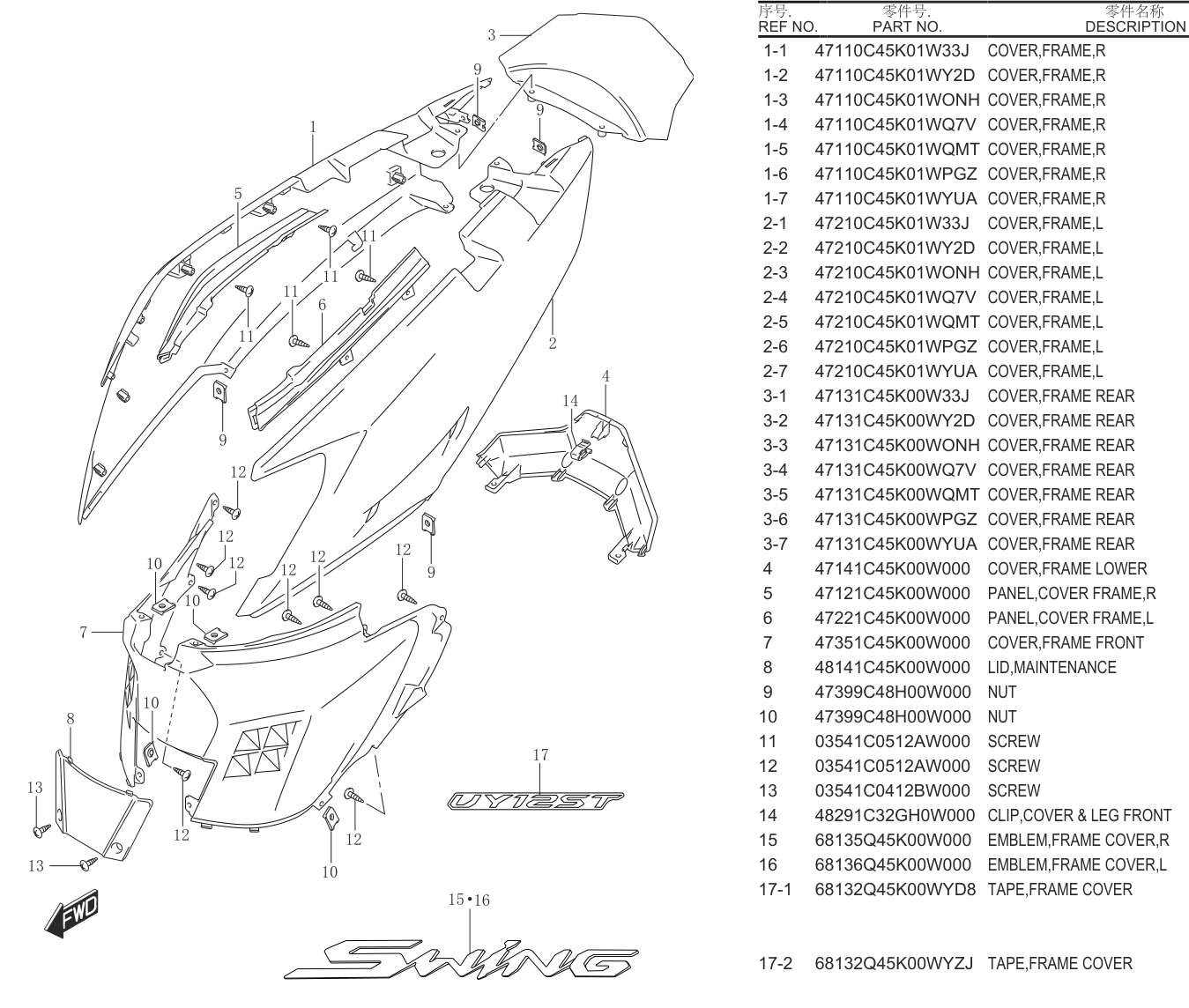

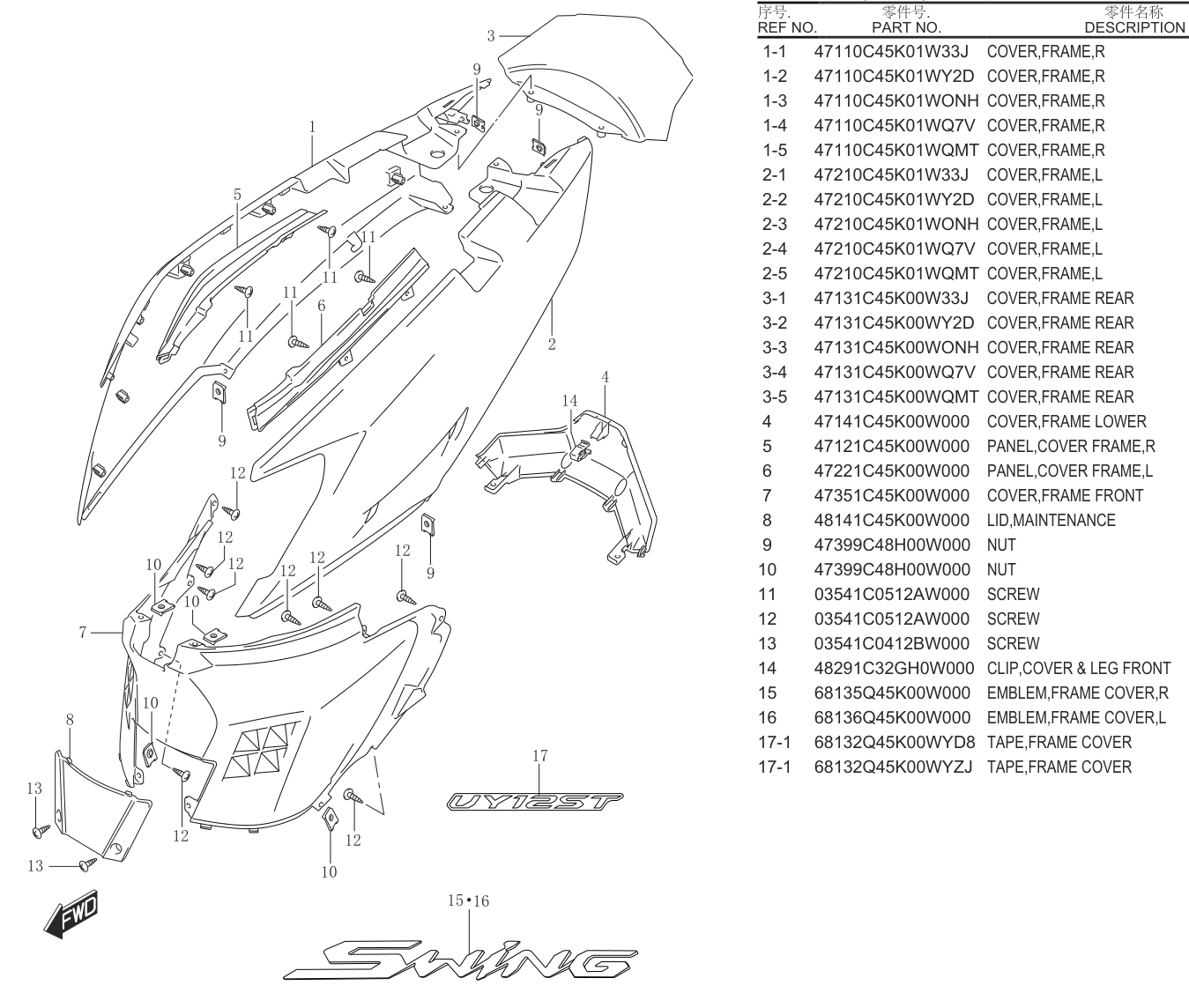

Location in exploded diagrams
Other parts on this diagram — 车架罩
- #2-1 47210C45K01W33J — COVER,FRAME,L
- #3-1 47131C45K00W33J — COVER,FRAME REAR
- #4 47141C45K00W000 — COVER,FRAME LOWER
- #5 47121C45K00W000 — PANEL,COVER FRAME,R
- #7 47351C45K00W000 — COVER,FRAME FRONT
- #8 48141C45K00W000 — LID,MAINTENANCE
- #9 47399C48H00W000 — NUT
- #11 03541C0512AW000 — SCREW
- #13 03541C0412BW000 — SCREW 14 48291C32GH0W000 CLIP,COVER & LEG FRONT 1
- #15 68135Q45K00W000 — EMBLEM,FRAME COVER,R
