Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (2)
Location in exploded diagrams

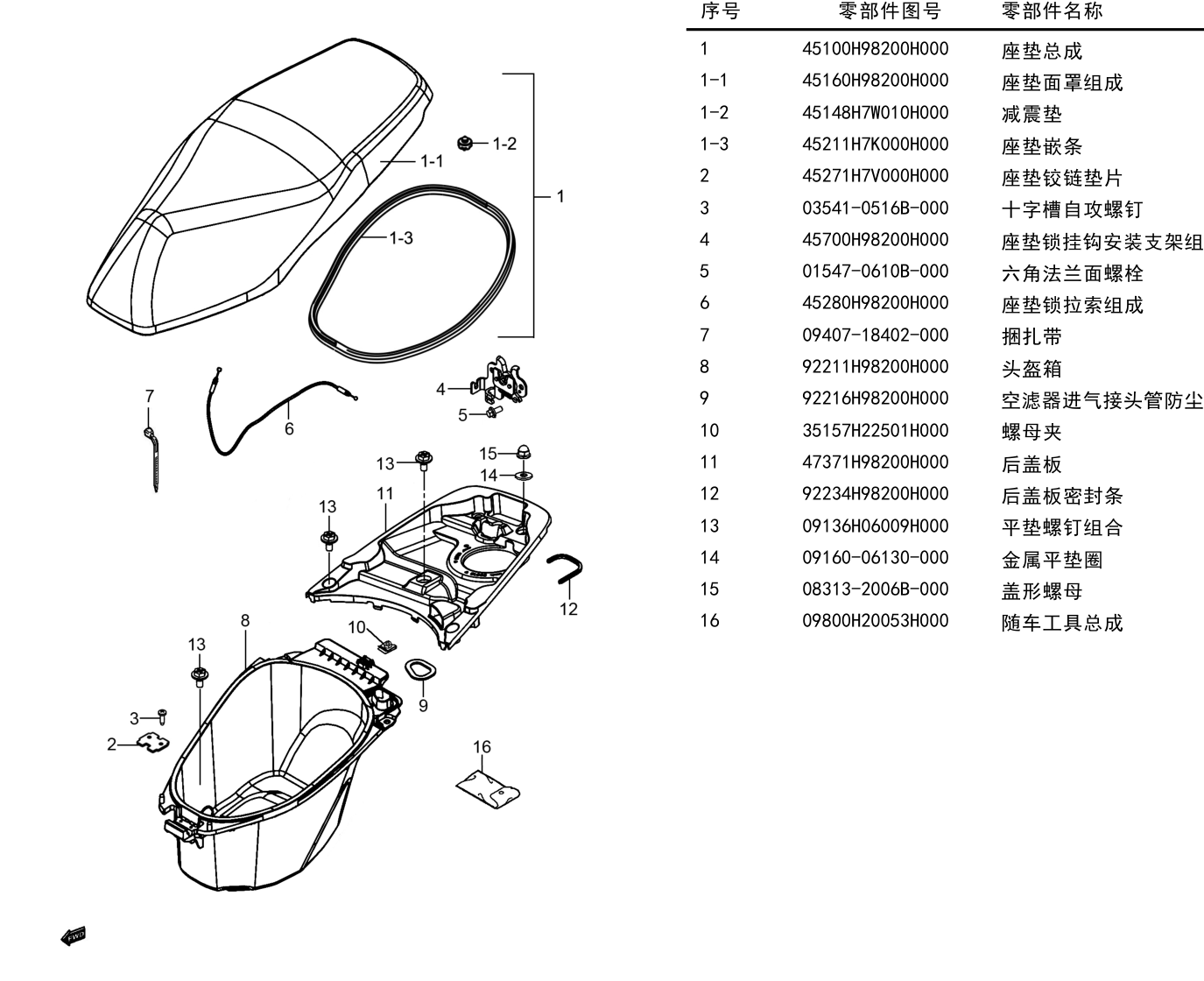

Other parts on this diagram — 座垫组
- #1 45100H98200H000 — 座垫总成
- #1-1 45160H98200H000 — 座垫面罩组成
- #1-2 45148H7W010H000 — 减震垫
- #1-3 45211H7K000H000 — 座垫嵌条
- #2 45271H7V000H000 — 座垫铰链垫片
- #3 03541-0516B-000 — 十字槽自攻螺钉
- #4 45700H98200H000 — 座垫锁挂钩安装支架组成
- #5 01547-0610B-000 — 六角法兰面螺栓
- #7 09407-18402-000 — 捆扎带
- #8 92211H98200H000 — 头盔箱
- #9 92216H98200H000 — 空滤器进气接头管防尘垫
- #10 35157H22501H000 — 螺母夹
- #11 47371H98200H000 — 后盖板
- #12 92234H98200H000 — 后盖板密封条
- #13 09136H06009H000 — 平垫螺钉组合
- #14 09160-06130-000 — 金属平垫圈
- #15 08313-2006B-000 — 盖形螺母
- #16 09800H20053H000 — 随车工具总成
