Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)

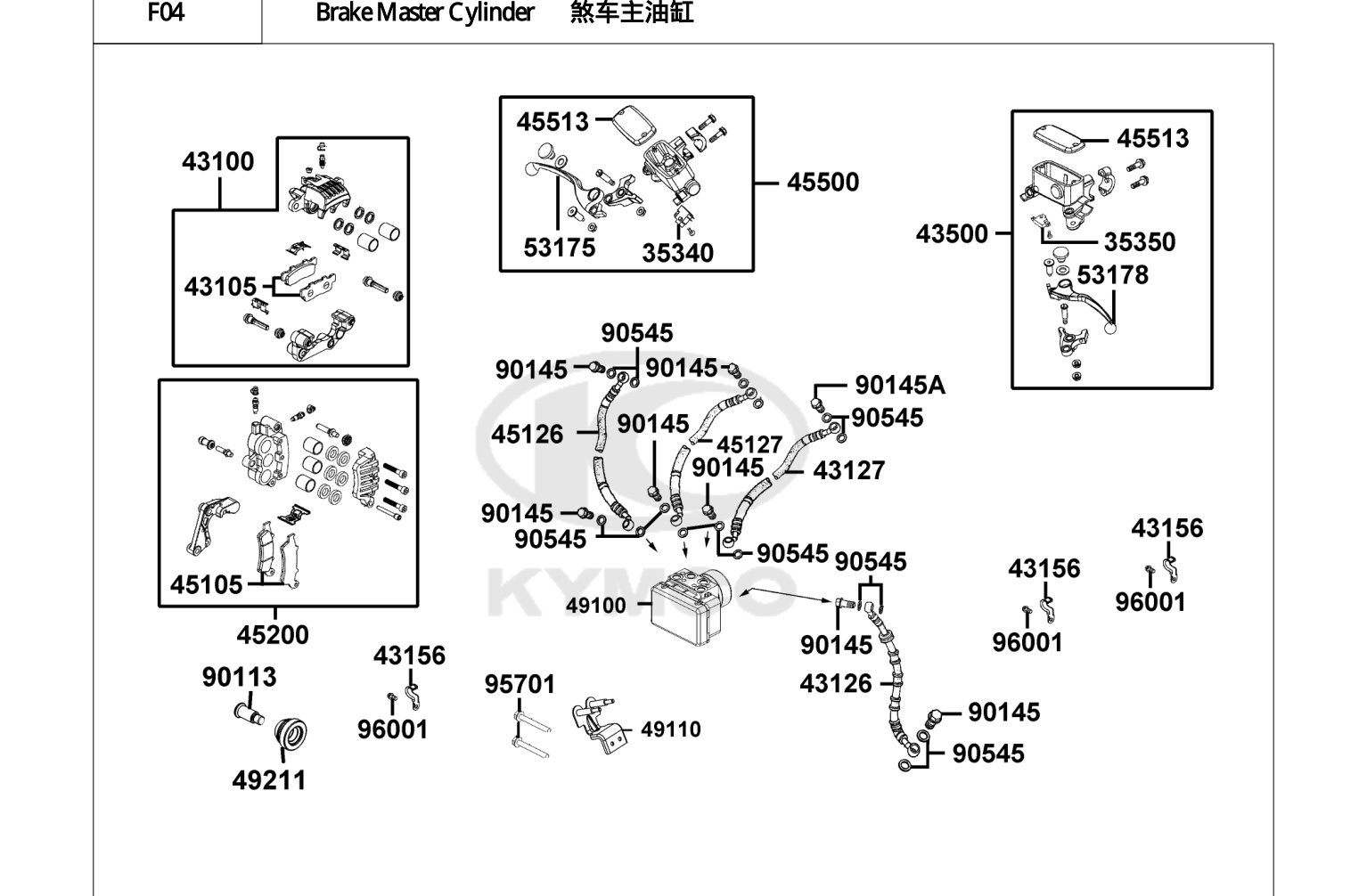

Location in exploded diagrams
Other parts on this diagram — 煞车主油缸
- #35340 35340-AEF6-C00 — SW ASSY ,FR STOP
- #35350 35350-AEF6-C00 — SW ASSY ,RR STOP
- #43100 43100-LGE5-C01 — CALIPER ASSY，RR
- #43105 43105-LGE5-406 — PAD SET
- #90145A 90145-LFH1-E00 — OIL BOLT 10x22
- #90145 90145-MKS9-C00 — OIL BOLT 10*22(G)
- #43126 43126-AGE7-C00 — HOSE ASSY RR BRK
- #43127 43127-AGE7-C00 — HOSE ASSY M/C RR BRK
- #43156 43156-LDB2-C00 — CLAMPER HOSE RR
- #43500 43500-LKG5-C00 — M/C ASSY RR
- #45105 45105-LGE5-305 — PAD SET
- #45126 45126-AGE7-C00 — HOSE ASSY FR BRK
- #45200 45200-LKG7-C01 — CALIPER ASSY FR BRK
- #45500 45500-LKG7-C00 — M/C ASSY FR BRK
- #45513 45513-LEA7-E00 — CAP MASTER CYLINDER
- #49100 49100-AGE7-C00 — MODULATOR ASSY ABS
- #49110 49110-AGE7-C00 — STAY ABS
- #49211 49211-LFH1-C00 — RUBBER BUSH
- #53178 53178-LKF5-C00 — LEVER L STRG HANDLE
- #90113 90113-LGE5-C01 — BOLT FLANGE 6X20
- #95701 95701-06012-07G — BOLT FLANGE 6*12 (KG)
- #96001 96001-06012-07G — BOLT FLANGE SH 6X12 (KG)
- #53175 53175-LKF5-C00 — LEVER R STRG HANDLE
- #90545 90545-3L00-C00 — WASHER OIL BOLT
