Verified fitment — 4 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Location in exploded diagrams

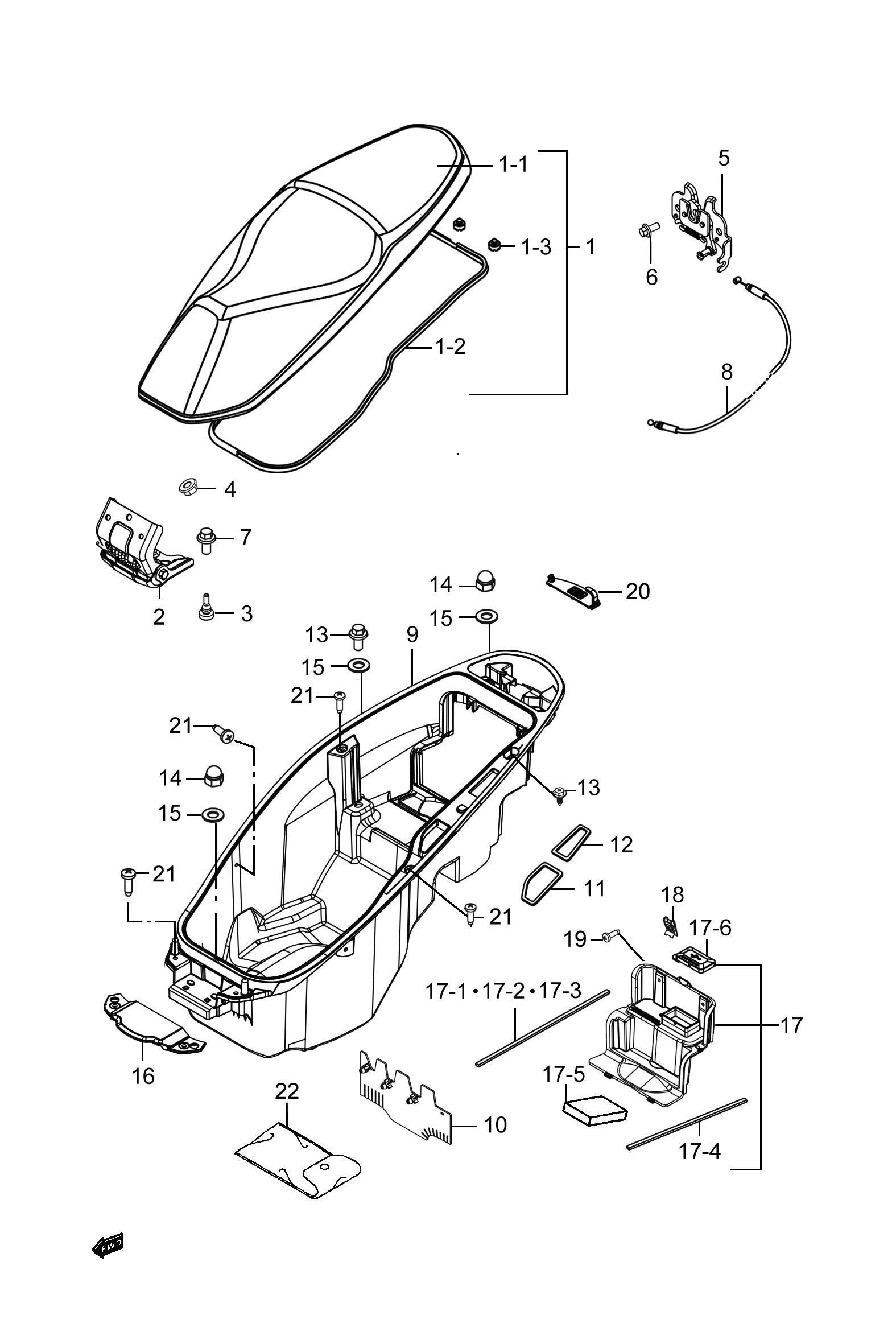

Other parts on this diagram — 座垫组
- #1-1 45160H7R100H000 — 座垫面罩组成
- #1-2 45211H7R010H000 — 座垫嵌条
- #1-3 45148H7W010H000 — 减震垫
- #2 45200H7R101H000 — 座垫铰链支架总成
- #3 45149H7R000H000 — 座垫减震垫
- #4 08316-1006A-000 — 六角法兰面螺母
- #5 45700H7R000H000 — 座垫锁挂钩安装支架组成
- #6 01547-0610B-000 — 六角法兰面螺栓
- #7 01550-0612A-000 — 六角法兰面螺栓
- #8 45280H7R001H000 — 座垫锁拉索组成
- #9 92211H7R100H000 — 头盔箱
- #10 63128H7R100H000 — 防尘胶皮
- #14 08313-2006B-000 — 盖形螺母
- #15 09160-06130-000 — 金属平垫圈
- #16 45263H7R000H000 — 座垫铰链遮挡板
- #17 92212H7Z100H000 — 头盔箱保养盖
- #18 09148-04024-000 — 锁片螺母
- #19 03541-0416B-000 — 十字槽自攻螺钉
- #20 92215H7R000H000 — VIN盖
- #21 03241-0516B-000 — 十字槽自攻螺钉
- #22 09800H20039H000 — 随车工具总成
- #23 92217H7R003H000 — 头盔箱保养盖密封条Ⅰ
- #24 92218H7R001H000 — 头盔箱保养盖密封条Ⅱ
- #25 92228H7R000H000 — 头盔箱保养盖密封条Ⅲ
