Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)
Location in exploded diagrams

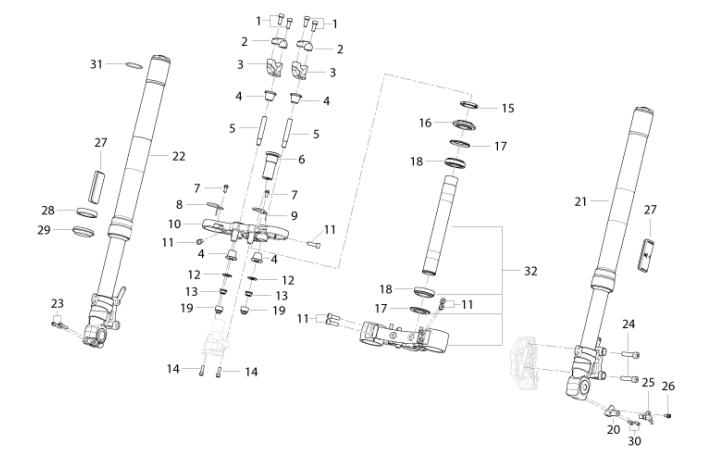

Other parts on this diagram — T013 - Front Fork
- 43100PCN000Z — Benelli BKX 125 S LOWER STEERING HEAD BASE
- B190104170B0 — Benelli BKX 125 S O-RING
- B0226050146S — Benelli BKX 125 S SCREW TORX (M5X14)
- 43290N220001 — Benelli BKX 125 S DUST SEALS
- 43260N220010 — Benelli BKX 125 S FORK SEALS
- 86200P250000 — Benelli BKX 125 S FRONT SIDE REFLECTOR
- 86200P250001 — Benelli BKX 125 S REFLECTOR
- B0226060126S — Benelli BKX 125 S SCREW TORX (M6X12)
- 45710P100000 — Benelli BKX 125 S ABS SPEEDOMETER SENSOR,FRONT WHEEL
- B0276100406P — Benelli BKX 125 S SCREW TORX (M10X40)
- B0226060306S — Benelli BKX 125 S SCREW TORX (M6X30)
- 43300U560000 — Benelli BKX 125 S RH. FORK LEG ASSEMBLY
- 43200U560000 — Benelli BKX 125 S LH. FORK LEG ASSEMBLY
- 58306P160000 — Benelli BKX 125 S CAP
- R21413021A — Benelli BKX 125 S BEARING
- 43130S010000 — Benelli BKX 125 S BEARING
- R21413031A — Benelli BKX 125 S RING,PROTECTION DUST
- 43005S010000 — Benelli BKX 125 S RING, ANTI-DUST
- R320469004000 — Benelli BKX 125 S STEERING RING NUT
- 43009P260000 — Benelli BKX 125 S STEERING RING NUT
- R90752321A — Benelli BKX 125 S STEERING RING NUT PIN
- 43008S010010 — Benelli BKX 125 S NUT
- B0226060206S — Benelli BKX 125 S SCREW TORX (M6X20)
- B04171012543 — Benelli BKX 125 S NUT M10X1.25
