Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.

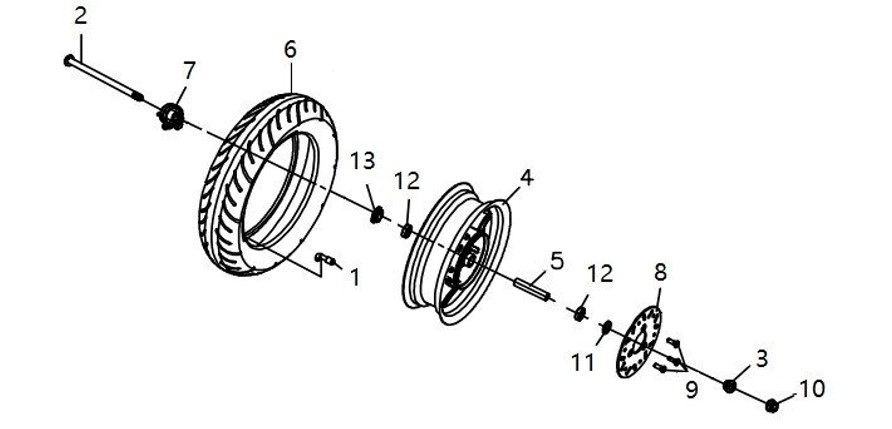

Location in exploded diagrams
Other parts on this diagram — Front Wheel Assy
- 90912GC8003 — Sym Fiddle 125 E5 RADIAL BALL BRG. 6201TU/2A
- 90912M9Q000 — Sym Fiddle 125 E5 RADIAL BALL BRG. 6201(U)
- 90912M9Q000CN1 — Sym Fiddle 125 E5 RADIAL BALL BRG 6201(U) (90912M9Q000M1)
- 90912M9Q000M1 — Sym Fiddle 125 E5 RADIAL BALL BRG. 6201 (90912M9Q000CN1)
- 90754M9Q000M2 — Sym Fiddle 125 E5 DUST SEAL 20X32X5
- 90754M9Q000 — Sym Fiddle 125 E5 DUST SEAL 20*32*5
- 90754M9Q000M1 — Sym Fiddle 125 E5 DUST SEAL 20*32*5
- 90306M9Q000 — Sym Fiddle 125 E5 SELF LOCK NUT 12MM
- 90106N02000XS — Sym Fiddle 125 E5 FR. DISK BOLT
- 45121XJE000 — Sym Fiddle 125 E5 Front Brake Disc
- 44800ALA000K — Sym Fiddle 125 E5 SPDMT GEAR BOX BLACK
- 44620AAA000 — Sym Fiddle 125 E5 FR. AXLE DIST COLLAR
- 44601XFA010K — Sym Fiddle 125 E5 FR. WHEEL RIM COMP - GLOSS BLACK
- 91258M9Q000M2 — Sym Fiddle 125 E5 SPEEDOMETER GEAR BOX SEAL
- 91258M9Q000 — Sym Fiddle 125 E5 SPEEDOMETER GEAR BOX SEAL
- 44311AAA000 — Sym Fiddle 125 E5 COLLAR FR WHEEL SIDE
- 44301H3F000 — Sym Fiddle 125 E5 FR. WHEEL AXLE
- 44301AAA000 — Sym Fiddle 125 E5 FR WHEEL AXLE
- 42753KBN902 — Sym Fiddle 125 E5 VALVE RIM
- 42753ABA000 — Sym Fiddle 125 E5 RIM VALVE
- 44710X1A000 — Sym Fiddle 125 E5 FR TIRE 110/70 12
- 44710X1A000M2 — Sym Fiddle 125 E5 Tire ASSY
- L90106-N02-0002 — Sym Fiddle 125 E5 FR. disk bolt
- TTL1211070A — Sym Fiddle 125 E5 Deli 110/70-12 Urban Grip Tubeless Scooter Tyre - SC109 Tread Pattern
