Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)
Location in exploded diagrams

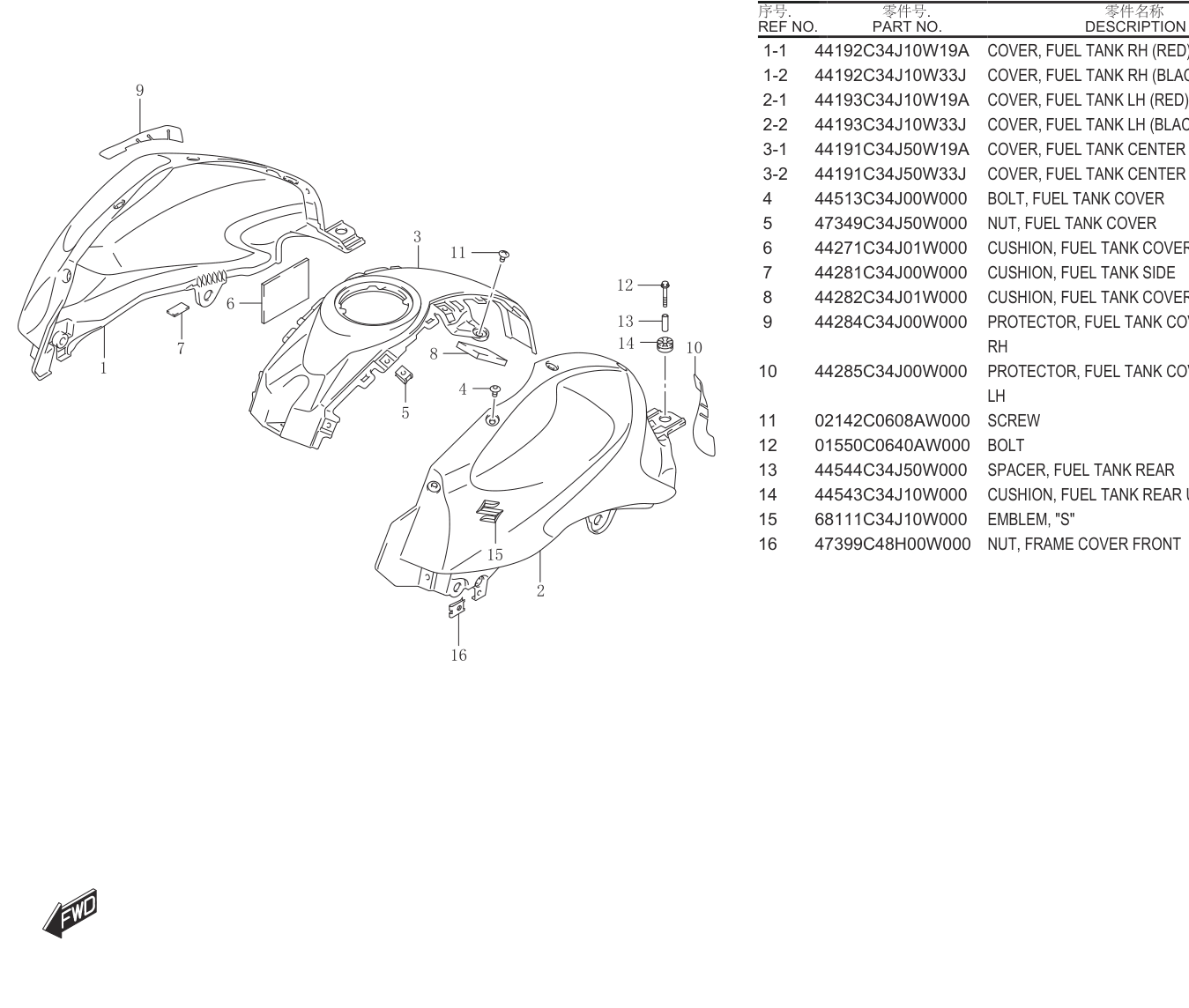

Other parts on this diagram — FUEL TANK COVER............... 46
- #1-1 44192C34J10W19A — COVER, FUEL TANK RH (RED)
- #2-1 44193C34J10W19A — COVER, FUEL TANK LH (RED)
- #3-1 44191C34J50W19A — COVER, FUEL TANK CENTER (RED)
- #4 44513C34J00W000 — BOLT, FUEL TANK COVER
- #5 47349C34J50W000 — NUT, FUEL TANK COVER
- #7 44281C34J00W000 — CUSHION, FUEL TANK SIDE
- #8 44282C34J01W000 — CUSHION, FUEL TANK COVER CTR
- #9 44284C34J00W000 — PROTECTOR, FUEL TANK COV NO.1 RH
- #10 44285C34J00W000 — PROTECTOR, FUEL TANK COV NO.1 LH
- #11 02142C0608AW000 — SCREW
- #12 01550C0640AW000 — BOLT
- #13 44544C34J50W000 — SPACER, FUEL TANK REAR
- #14 44543C34J10W000 — CUSHION, FUEL TANK REAR UPPER
- #15 68111C34J10W000 — EMBLEM, "S"
- #16 47399C48H00W000 — NUT, FRAME COVER FRONT
