Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)
Location in exploded diagrams

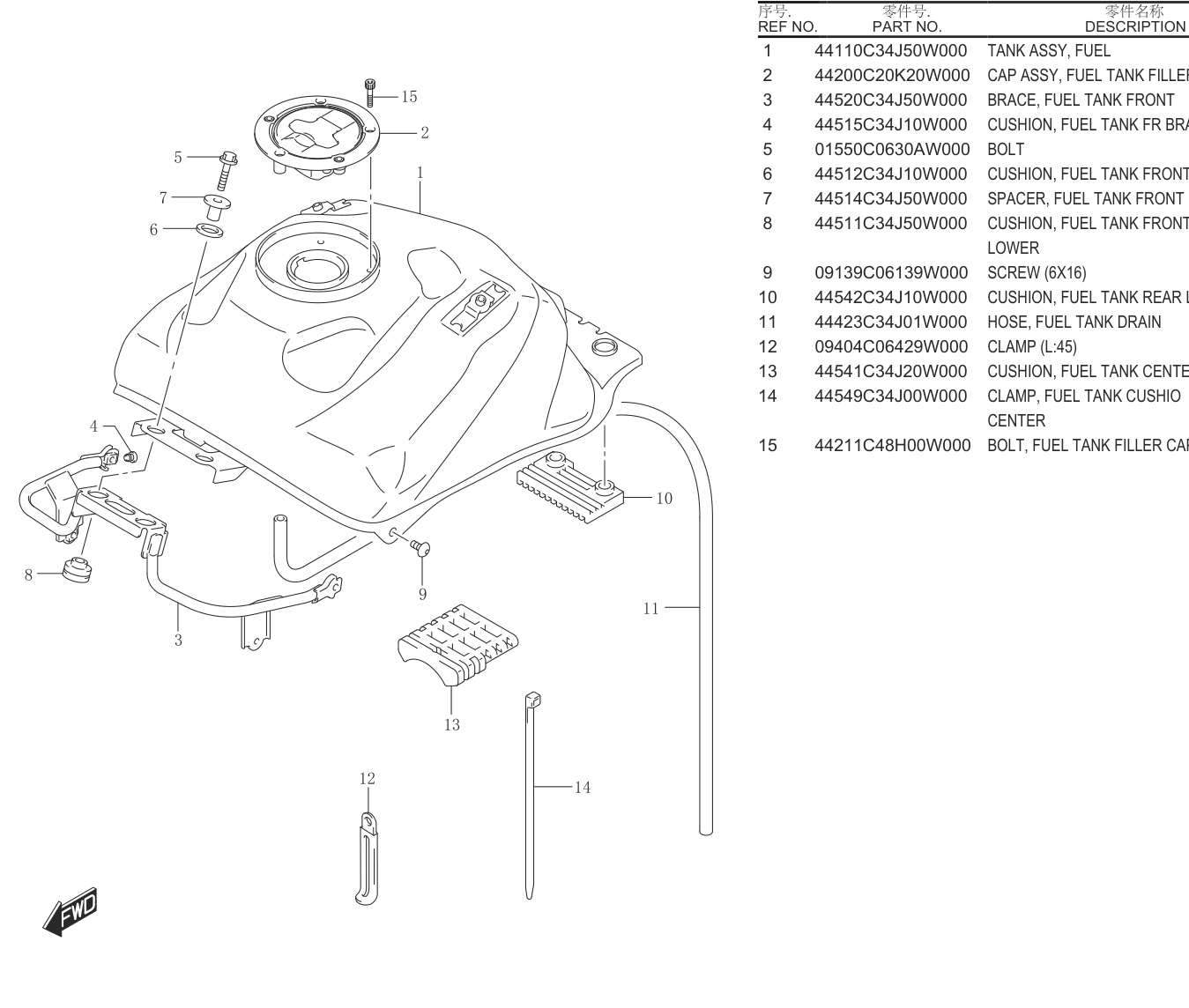

Other parts on this diagram — FUEL TANK..................... 45
- #2 44200C20K20W000 — CAP ASSY, FUEL TANK FILLER
- #3 44520C34J50W000 — BRACE, FUEL TANK FRONT
- #4 44515C34J10W000 — CUSHION, FUEL TANK FR BRACE
- #5 01550C0630AW000 — BOLT
- #6 44512C34J10W000 — CUSHION, FUEL TANK FRONT
- #7 44514C34J50W000 — SPACER, FUEL TANK FRONT
- #8 44511C34J50W000 — CUSHION, FUEL TANK FRONT LOWER
- #9 09139C06139W000 — SCREW (6X16)
- #10 44542C34J10W000 — CUSHION, FUEL TANK REAR LOWER
- #11 44423C34J01W000 — HOSE, FUEL TANK DRAIN
- #12 09404C06429W000 — CLAMP (L:45)
- #13 44541C34J20W000 — CUSHION, FUEL TANK CENTER
- #14 44549C34J00W000 — CLAMP, FUEL TANK CUSHIO
- #1 CENTER — 油箱盖螺栓
- #15 44211C48H00W000 — BOLT, FUEL TANK FILLER CAP
