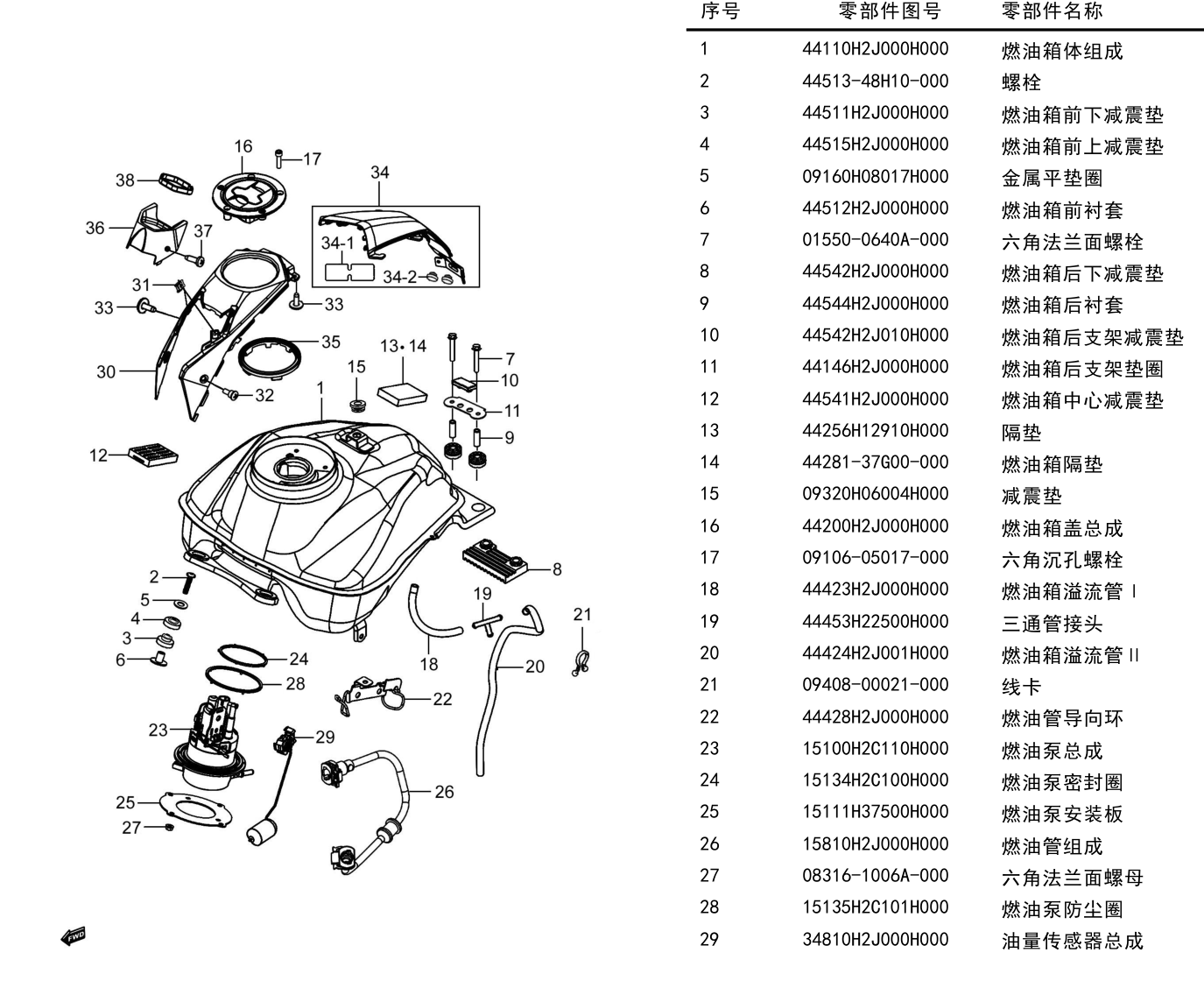

Location in exploded diagrams
Other parts on this diagram — 燃油箱组
- #13 44256H12910H000 — 隔垫
- #14 44281-37G00-000 — 燃油箱隔垫
- #1 44110H2J000H000 — 燃油箱体组成
- #2 44513-48H10-000 — 螺栓
- #3 44511H2J000H000 — 燃油箱前下减震垫
- #6 44512H2J000H000 — 燃油箱前衬套
- #7 01550-0640A-000 — 六角法兰面螺栓
- #8 44542H2J000H000 — 燃油箱后下减震垫
- #9 44544H2J000H000 — 燃油箱后衬套
- #10 44542H2J010H000 — 燃油箱后支架减震垫
- #11 44146H2J000H000 — 燃油箱后支架垫圈
- #12 44541H2J000H000 — 燃油箱中心减震垫
- #15 09320H06004H000 — 减震垫
- #16 44200H2J000H000 — 燃油箱盖总成
- #17 09106-05017-000 — 六角沉孔螺栓
- #18 44423H2J000H000 — 燃油箱溢流管Ⅰ
- #19 44453H22500H000 — 三通管接头
- #20 44424H2J001H000 — 燃油箱溢流管Ⅱ
- #21 09408-00021-000 — 线卡
- #22 44428H2J000H000 — 燃油管导向环
- #23 15100H2C110H000 — 燃油泵总成
