Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)
Location in exploded diagrams

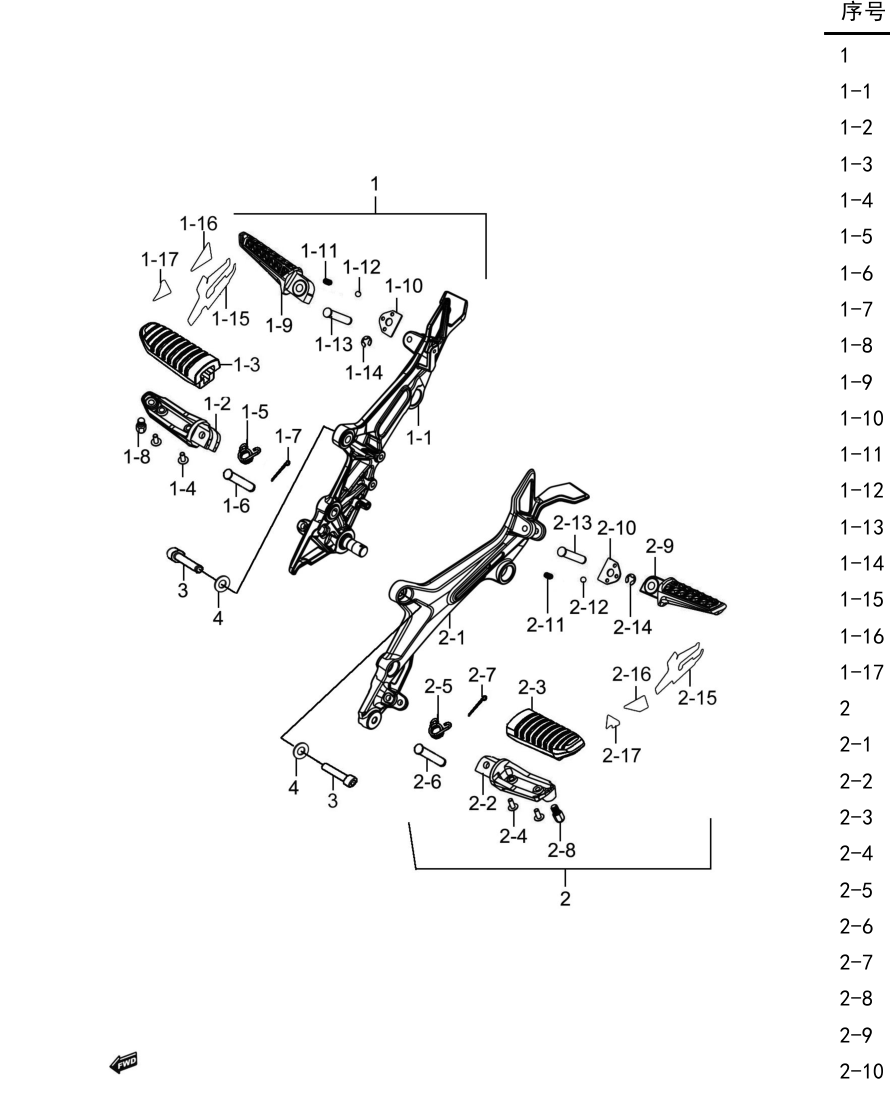

Other parts on this diagram — 搁脚组
- #1 43510H2KY00H000 — 右搁脚总成
- #1-2 43511-44G10-000 — 前右搁脚杆
- #1-3 43550H2K000H000 — 前搁脚胶套组成
- #1-4 02142-0512A-000 — 十字槽球头小螺钉
- #1-5 09448-16033-000 — 扭转弹簧
- #1-6 43529-34J00-000 — 前搁脚销
- #1-7 04111-2515A-000 — 开口销
- #1-8 43576-48H00-000 — 转弯触地螺栓
- #1-9 43611H2J011H000 — 后右搁脚杆
- #1-10 43816H2J000H000 — 后搁脚安装板
- #1-11 09440-05003-000 — 定位弹簧
- #1-12 06112-07004-000 — 钢球
- #1-13 09208-08021-000 — 开槽销
- #1-14 08332-1106A-000 — E形环
- #1-15 43525H2K000H000 — 前右搁脚支架贴条
- #1-16 43525H2K010H000 — 前右搁脚支架贴条
- #1-17 43525H2K020H000 — 前右搁脚支架贴条
- #2 43520H2KY00H000 — 左搁脚总成
- #2-1 43521H2K000H000 — 前左搁脚支架
- #2-2 43521-44G10-000 — 前左搁脚杆
- #2-9 43711H2J011H000 — 后左搁脚杆
- #2-15 43523H2K000H000 — 前左搁脚支架贴条
- #2-16 43523H2K010H000 — 前左搁脚支架贴条
- #2-17 43523H2K020H000 — 前左搁脚支架贴条
