Verified fitment — 2 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
China (1)
United Kingdom (1)
Location in exploded diagrams

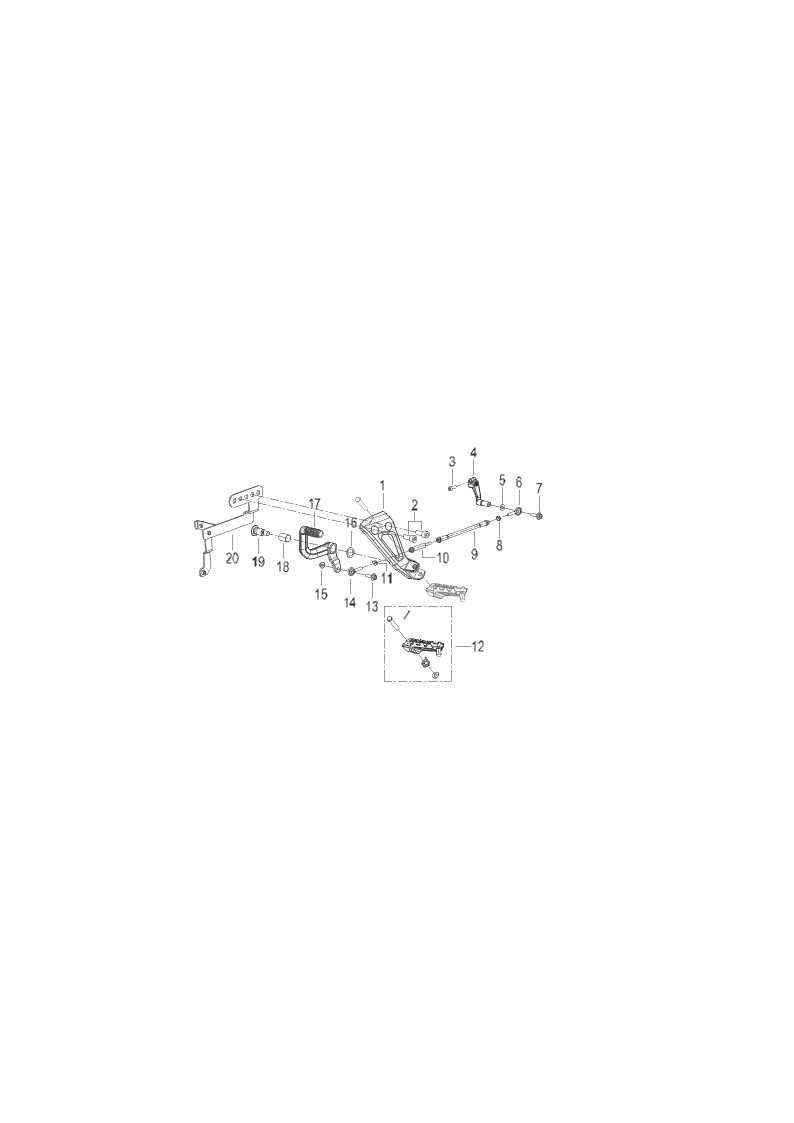

Other parts on this diagram — 脚蹬 PEDAL ASSY.
- #1 58226P080001 — THE LEFT FOOT PEDAL HOLDER
- #2 B0255100356H — SOCKET HEAD CAP SCREW M10×1.25×35
- #4 08386P080000 — SHIFT LEVER MOUNTING SEAT
- #4 08386P080001 — SHIFT LEVER MOUNTING SEAT
- #5 B0702000060H — WASHER 6
- #6 40706S040000 — M6 LEFT SECTION HEAD
- #7 B0109060256H — BOLT M6×25
- #8 08051S040010 — NUT M6-LH
- #9 08383P360000 — GEAR-SHIFT PEDAL LEVER Ⅱ
- #10 08381P360000 — GEAR-SHIFT PEDAL LEVER Ⅰ
- #11 B04800600052 — NUT M6-8-ZG
- #12 58220P08000Z — LEFT FRONT PEDAL ASSEMBLY
- #13 B0109060206H — BOLT M6×20
- #14 08375S010000 — SECTION HEAD
- #15 B04810600052 — NUT M6×1
- #16 58216S010000 — WASHER
- #17 08370P080000 — GEAR-SHIFT PEDAL LEVER ASSY
- #18 58511S010001 — SELF-LUBRICATING BUSHINGS
- #20 59450P080001 — INSTALL THE WELDING PANEL ON THE LEFT GUIDE HOOD OF THE ENGINE
- #3 B0205060166H — SOCKET HEAD CAP SCREW M6×16
