Verified fitment — 8 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| EUR | 11.52 | listing | cfmoto.quadzillaparts.co.uk |
| GBP | 10.66 | listing | cfmoto.quadzillaparts.co.uk |

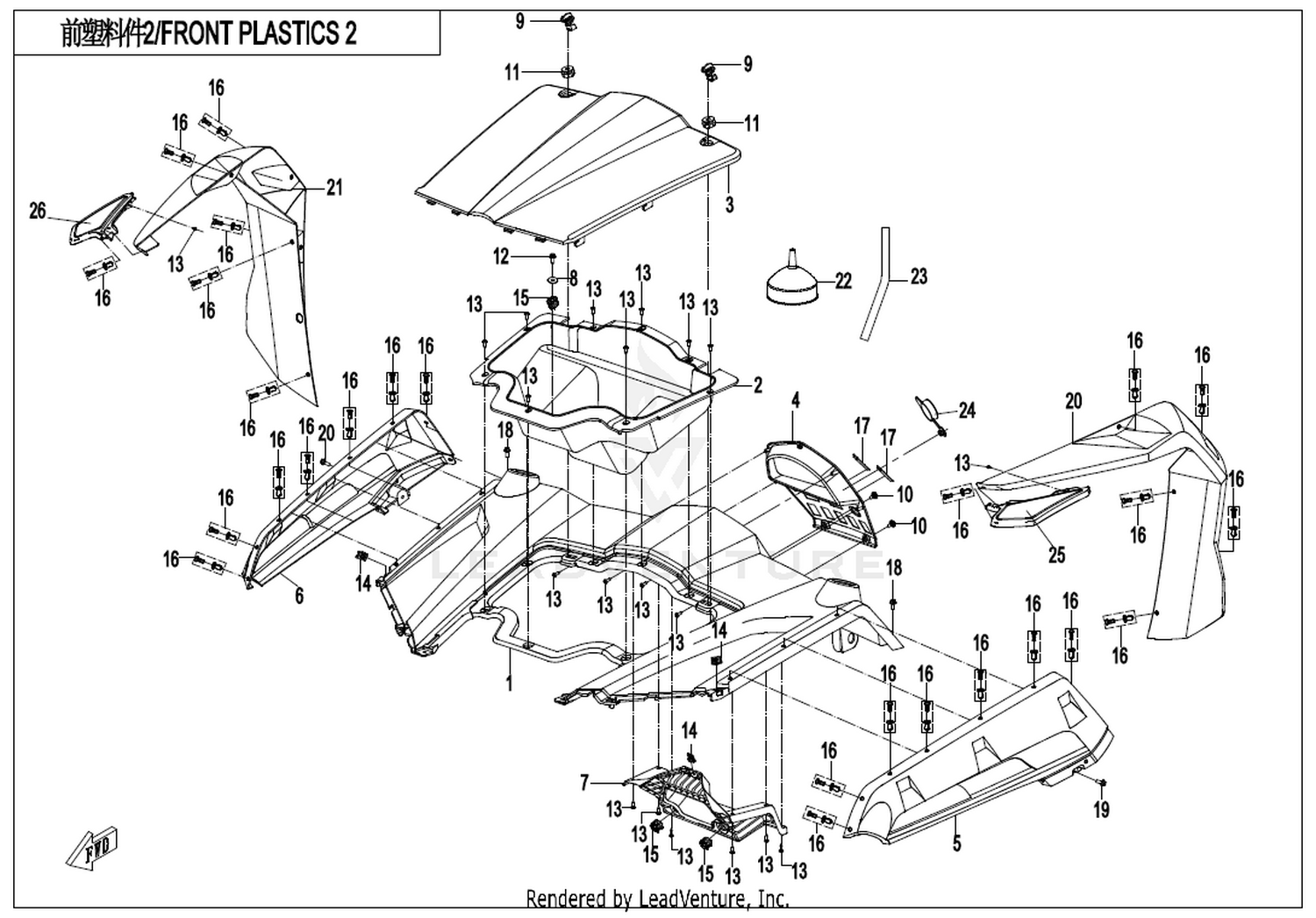

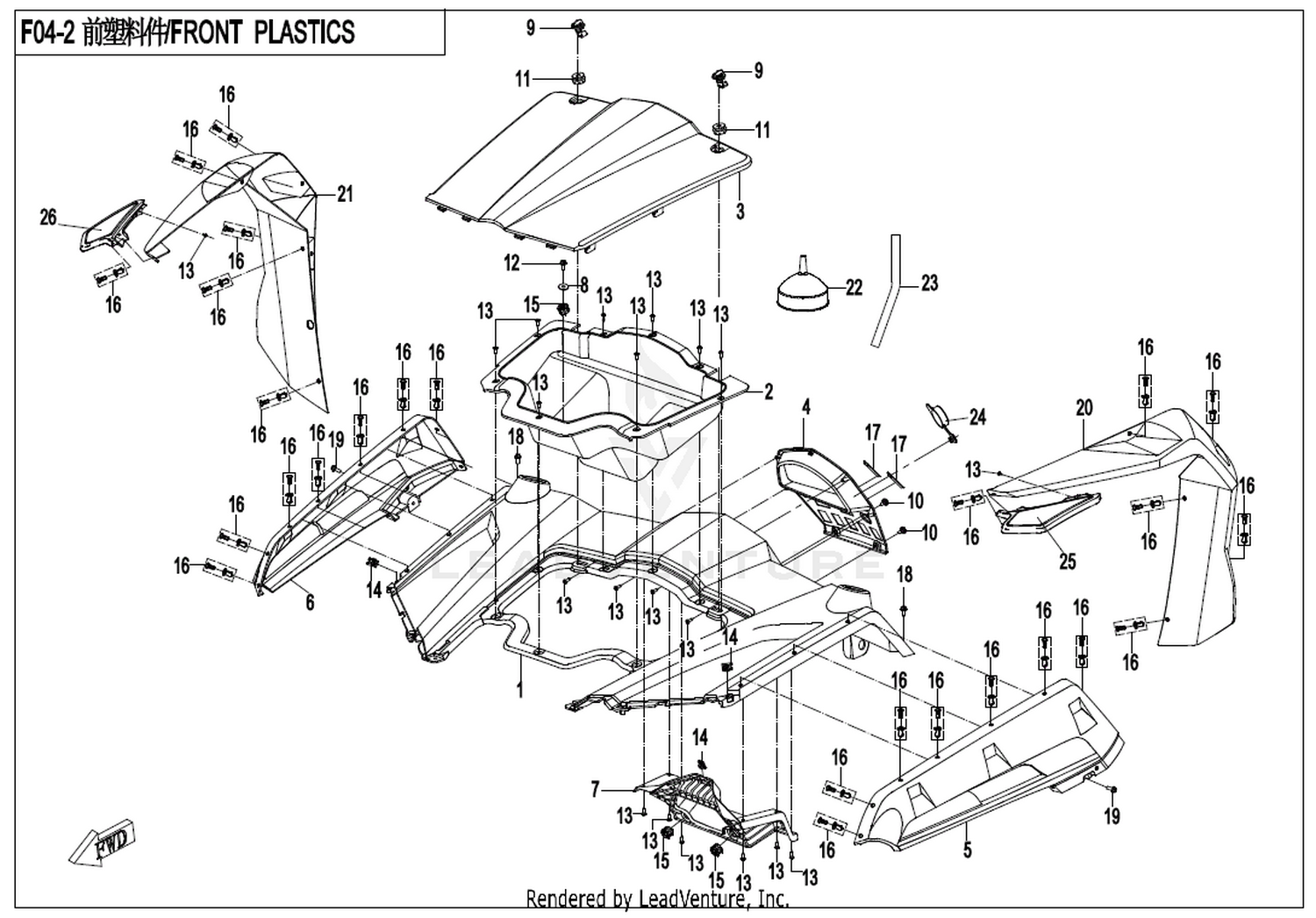

Location in exploded diagrams








Other parts on this diagram — Front Plastic 2
- #01 9060-040101-1R40 — Front Fender Fire Red
- #03 9060-040102-0Y60 — Front Top Cover Crystal Orange
- #03 30301-060412 — Washer F6
- #08 8030-040800-00001 — Nut Clip M6 M6
- #20 4060-260601-10000 — Front Fender, Lh
- #01 9060-040101-1EK00 — Front Fender Athens Blue
- #03 9060-040102-0B30 — Front Top Cover Pearl Black
- #09 9060-040105 — Cupboard Button
- #11 5020-031001 — Rubber Sleeve, Front License Bracket
- #21 4060-260602-10000 — Front Rh Whell Fender
- #01 9060-040101-1Y60 — Front Fender Crystal Orange
- #04 9060-040106-10000 — Dashboard Panel
- #17 5BY0-000303 — Screw M6X17.5, Soundbox Cover
- #15 9060-040310 — Clamp Assy
- #05 7030-200101 — Filler, Engine Oil
- #02 9060-040103 — Front Trunk
- #05 9060-040009 — Lh Front Protector
- #06 9060-040151 — Top Cover Cupboard Button Sleeve
- #17 9060-040108-10000 — Switch Hole Cover
- #23 7000-200101 — Funnel Extension Hose
- #03 9060-040102-0R40 — Front Top Cover Fire Red
- #06 9060-040011 — Front Rh Protector
- #04 30006-060016870 — Bolt M6×16
- #05 30006-060020870 — Bolt M6×20
