Verified fitment — 3 vehicles
Fitment is sourced from official parts catalogues, listed per catalogue market.
Manufacturer reference prices
Catalogue / RRP reference only — the live MotoDoc price is on the product page.
| Currency | Reference price | Type | Source |
|---|---|---|---|
| GBP | 21.43 | listing | motogbshop.co.uk |
Location in exploded diagrams

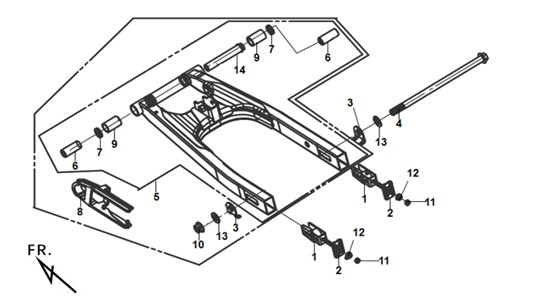

Other parts on this diagram — F18 - Rear Swingarm
- 52140NHA000 — Sym NH-R 125 E5+ Rr. Fork distance collar
- 9410117000B1F — Sym NH-R 125 E5+ WASHER M17
- 9405008000 — Sym NH-R 125 E5+ FLANGE NUT 8MM
- 94001080000S — Sym NH-R 125 E5+ HEX NUT 8MM
- 90304B7A000 — Sym NH-R 125 E5+ RR.AXLE U NUT 16MM
- 52506NHA000 — Sym NH-R 125 E5+ FORK SEAL
- 52170NHA000 — Sym NH-R 125 E5+ Chain slider
- 52145BDA000 — Sym NH-R 125 E5+ SEAL 22*28*4
- 52143NHA000 — Sym NH-R 125 E5+ Rr. Fork collar
- 5210ANDF000 — Sym NH-R 125 E5+ REAR FORK ASSY.
- 42301BAK000 — Sym NH-R 125 E5+ Rr. Wheel axle
- 40547BAA000 — Sym NH-R 125 E5+ AXLE FIXED WASHER
- 40543NHA000 — Sym NH-R 125 E5+ RH CHAIN ADJUSTER
