40511TL1000Sym MAXSYM TL 508 E5 UP. DRIVE CHAIN COVER — Genuine Sym Part
Symoem
Verified fitment — 1 vehicle
Fitment is sourced from official parts catalogues, listed per catalogue market.
United Kingdom (1)

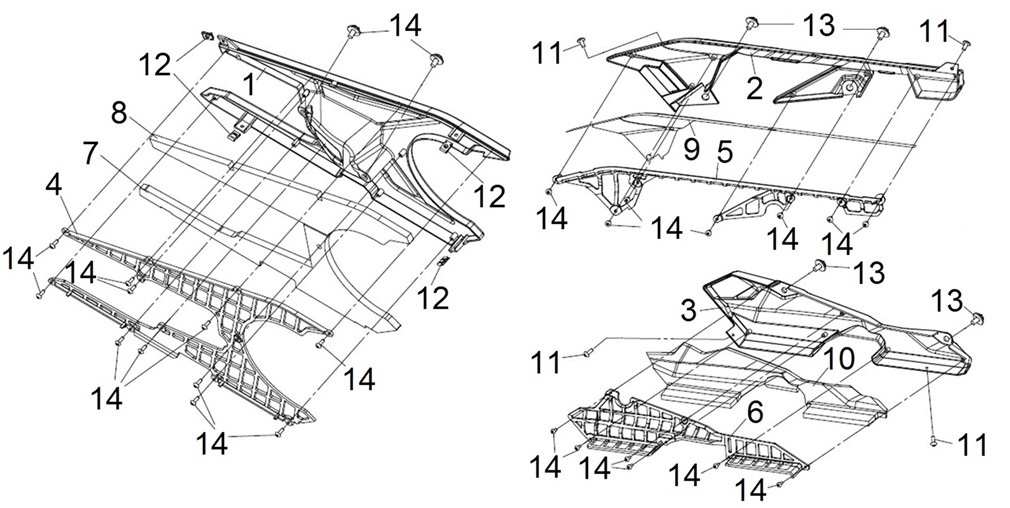

Location in exploded diagrams
Other parts on this diagram — DRIVE CHAIN COVER
- 9390334280 — Sym MAXSYM TL 508 E5 TAPPING SCREW
- 934010601207 — Sym MAXSYM TL 508 E5 BOLT. WASH 6X12
- 90302V02000 — Sym MAXSYM TL 508 E5 NUT SPRING 4MM
- 90102TL1000 — Sym MAXSYM TL 508 E5 HEX. SOCKET TAPPING SCREW0 4X12
- 90102TL1900 — Sym MAXSYM TL 508 E5 HEX. SOCKET TAPPING SCREW0 4X12
- 40520TL1000 — Sym MAXSYM TL 508 E5 CHAIN COVER INSULATOR C
- 40519TL1000 — Sym MAXSYM TL 508 E5 CHAIN COVER INSULATOR B
- 40517TL1000 — Sym MAXSYM TL 508 E5 CHAIN COVER INSULATOR D
- 40516TL1000 — Sym MAXSYM TL 508 E5 CHAIN COVER INSULATOR A
- 40515TL1000 — Sym MAXSYM TL 508 E5 LWR. DRIVE CHAIN PLATE
- 40514TL1000 — Sym MAXSYM TL 508 E5 UP. DRIVE CHAIN PLATE
- 40513TL1000 — Sym MAXSYM TL 508 E5 DRIVE CHAIN PLATE
- 40512TL1000 — Sym MAXSYM TL 508 E5 LWR. DRIVEN CHAIN COVER
- 40510TL1000 — Sym MAXSYM TL 508 E5 DRIVEN CHAIN COVER
